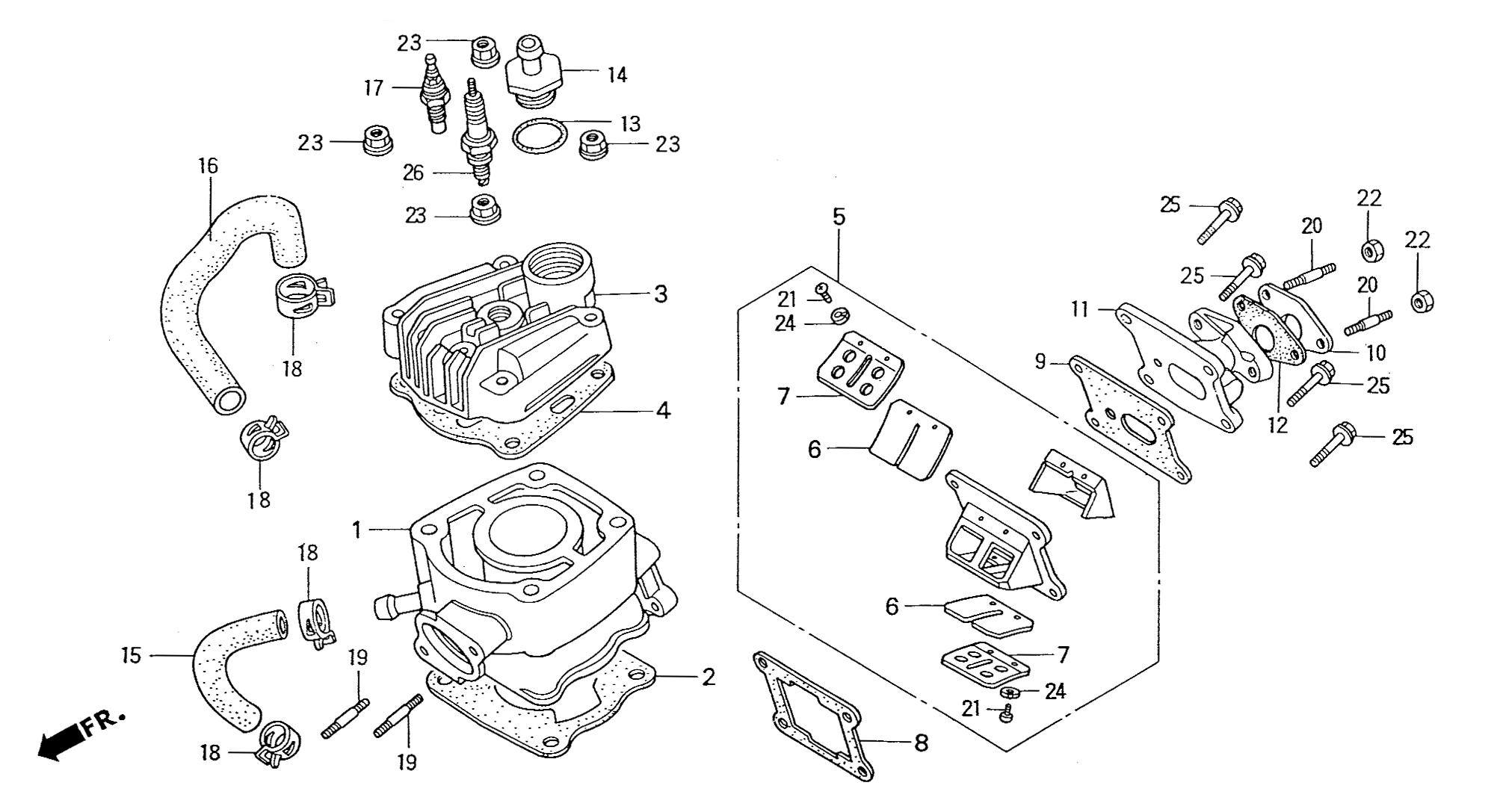

| 1 |
12110-GT4-970 |
CYLINDER COMP, A |
1 |
308.57 |
|
|
12120-GT4-970 |
CYLINDER COMP, B [USE 12110-GT4-970] |
1 |
304.00 |
|
|
12130-GT4-970 |
CYLINDER COMP, C [USE 12110-GT4-970] |
1 |
304.00 |
|
| 2 |
12191-GAA-000 |
GASKET, CYLINDER |
1 |
4.20 |
|
| 3 |
12200-GT4-970 |
HEAD COMP, CYLINDER |
1 |
117.55 |
|
| 4 |
12251-GAA-003 |
GASKET, CYLINDER HEAD |
1 |
14.40 |
|
| 5 |
14100-GT4-970 |
VALVE ASSY, REED |
1 |
84.45 |
|
| 6 |
14111-GT4-003 |
PEDAL, REED VALVE |
2 |
8.90 |
|
| 7 |
14121-GT4-970 |
STOPPER, REED VALVE |
2 |
8.75 |
|
| 8 |
14132-GAA-000 |
GASKET A, REED VALVE [USE 14132-GT4-771] |
1 |
3.00 |
|
| 9 |
14133-GAA-000 |
GASKET B, REED VALVE [USE 14133-GT4-711] |
1 |
3.00 |
|
| 10 |
16211-NKL-000 |
INSULATOR, CARBURETOR (se) |
1 |
6.80 |
|
| 11 |
17101-NKL-000 |
PIPE, INLET (se) [USE 17100-GT4-000] |
1 |
0.00 |
|
| 12 |
17119-168-010 |
GASKET, INLET PIPE |
1 |
2.35 |
|
| 13 |
19310-GE2-000 |
O-RING,THERMOSTAT |
1 |
2.65 |
|
| 14 |
19315-GT4-000 |
(USE 19315-GY8-900) COVER,THERMOSTAT |
1 |
16.65 |
|
| 15 |
19501-GT4-000 |
HOSE A, WATER |
1 |
7.35 |
|
| 16 |
19502-NKL-000 |
HOSE B,WATER |
1 |
4.65 |
|
| 17 |
37750-PC1-004 |
SENSOR, THERMOSTAT UNIT (DENSO) |
1 |
42.85 |
|
| 18 |
90682-SB0-671 |
CLAMP, CANISTER HOSE |
4 |
2.35 |
|
| 19 |
92700-08035-1B |
BOLT, STUD (8X35) [USE 92900-08022-1B] |
2 |
0.75 |
|
| 20 |
92900-06020-1B |
BOLT, STUD (6X20) |
2 |
0.60 |
|
| 21 |
93500-03006-0H |
SCREW, PAN HEAD (3x6) [USE 93892-03006-08] |
4 |
0.35 |
|
| 22 |
94001-06000-0S |
NUT, HEX (6mm) [USE 94001-06200-0S] |
2 |
0.45 |
|
| 23 |
94050-08000 |
NUT, FLANGE (8mm) |
4 |
0.55 |
|
| 24 |
94111-03000 |
WASHER,SPRING (3mm) |
4 |
0.35 |
|
| 25 |
96001-06020-00 |
BOLT, FLANGE (6x20) |
4 |
0.50 |
|
| 26 |
98079-59816 |
SPARK PLUG NGK BR9ES |
1 |
6.35 |
|
