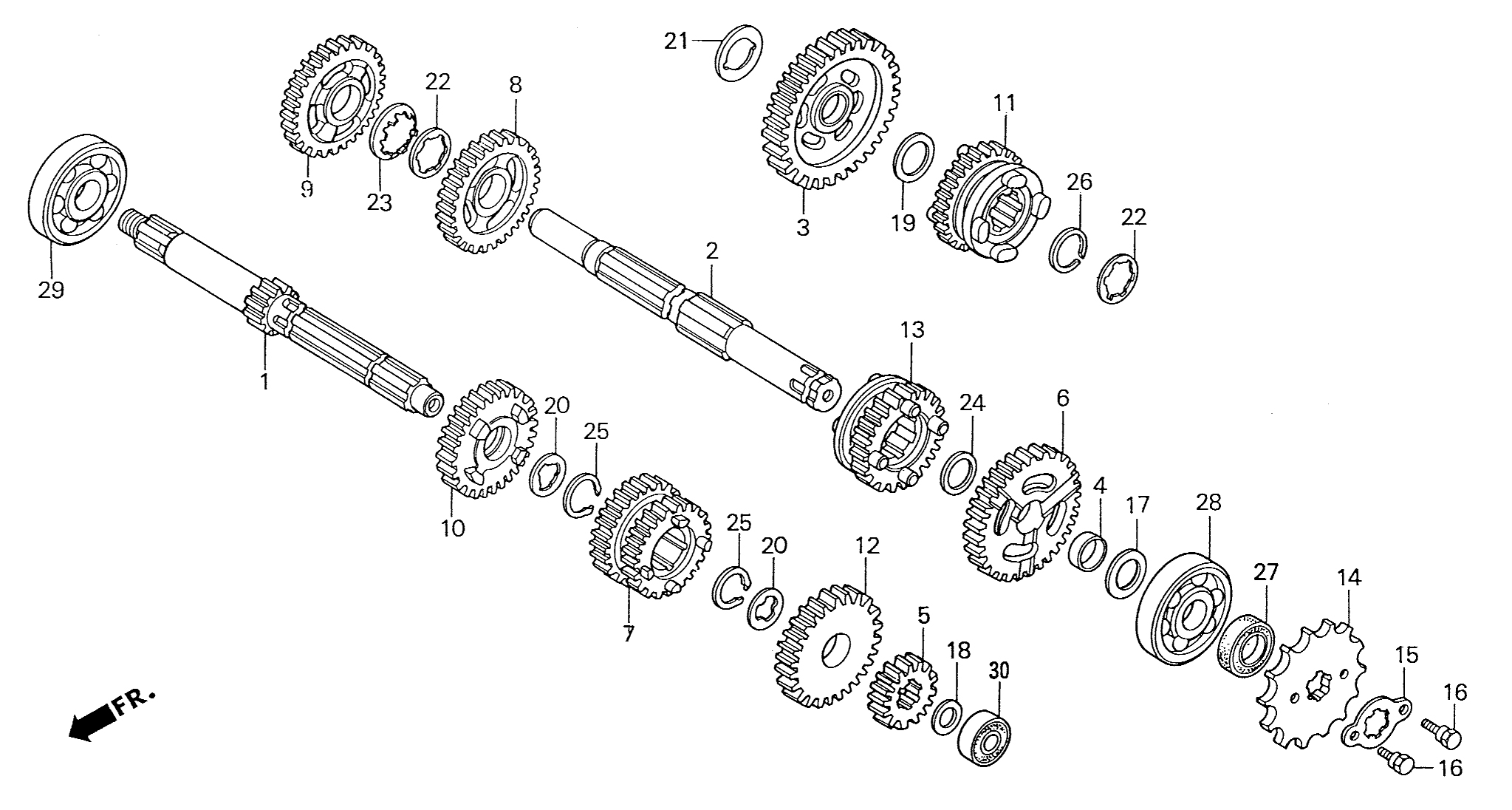

| 1 |
23211-GAA-710 |
MAINSHAFT, TRANSMISSION |
1 |
95.75 |
|
| 2 |
23221-166-601 |
COUNTER SHAFT |
1 |
68.85 |
|
| 3 |
23420-GE2-000 |
GEAR, COUNTERSHAFT LOW (39T) |
1 |
68.55 |
|
| 4 |
23431-166-600 |
BUSH 17MM |
1 |
9.05 |
|
| 5 |
23441-GE2-000 |
GEAR, MAINSHAFT SECOND (15T) |
1 |
31.85 |
|
| 6 |
23451-GE2-000 |
GEAR, COUNTERSHAFT SECOND (35T) |
1 |
51.55 |
|
| 7 |
23461-GE2-000 |
GEAR, MAINSHAFT THIRD & FOURTH (18T/21T) |
1 |
99.25 |
|
| 8 |
23471-GE2-000 |
GEAR, COUNTERSHAFT THIRD (31T) |
1 |
49.15 |
|
| 9 |
23482-GE2-000 |
GEAR, COUNTERSHAFT FOURTH (29T) |
1 |
42.65 |
|
| 10 |
23491-GE2-770 |
GEAR, MAINSHAFT FIFTH (23T) |
1 |
49.15 |
|
| 11 |
23501-GE2-770 |
GEAR, COUNTERSHAFT FIFTH (28T) |
1 |
61.10 |
|
| 12 |
23511-GE2-770 |
GEAR, MAINSHAFT SIXTH (23T) |
1 |
49.15 |
|
| 13 |
23515-GE2-770 |
GEAR, COUNTERSHAFT SIXTH (26T) |
1 |
57.85 |
|
| 14 |
23800-040-010 |
SPROCKET, DRIVE 14T |
1 |
14.55 |
|
| 15 |
23802-040-000 |
PLATE, DRIVE SPROCKET |
1 |
2.25 |
|
| 16 |
90084-041-000 |
BOLT, DRIVE SPROCKET |
2 |
2.15 |
|
| 17 |
90446-357-000 |
WASHER, THRUST 17.2mm (T=1.0) |
1 |
4.55 |
|
| 18 |
90452-166-600 |
WASHER, THRUST (12mm) |
1 |
2.30 |
|
| 19 |
90452-437-000 |
WASHER, THRUST (16.5mm) |
1 |
2.65 |
|
| 20 |
90461-115-000 |
WASHER, SPLINE (17MM) |
2 |
3.15 |
|
| 21 |
90463-166-000 |
WASHER, THRUST (15mm) |
1 |
2.50 |
|
| 22 |
90464-166-000 |
WASHER A,SPLINE 19MM |
2 |
2.50 |
|
| 23 |
90465-166-600 |
WASHER,LOCK 19MM |
1 |
2.55 |
|
| 24 |
90466-166-600 |
WASHER, THRUST (17mm) |
1 |
2.15 |
|
| 25 |
90601-001-000 |
CIRCLIP, EXTERNAL (17mm) |
2 |
1.80 |
|
| 26 |
90602-166-010 |
CIRCLIP 19MM |
1 |
2.30 |
|
| 27 |
91201-415-013 |
OIL SEAL (17x28x7) |
1 |
5.10 |
|
| 28 |
96100-63030-00 |
BEARING, RADIAL BALL (6303) |
1 |
5.65 |
|
| 29 |
96120-63030-00 |
BEARING, RADIAL BALL (6303Z) |
1 |
8.05 |
|
| 30 |
96140-60010-00 |
BEARING, RADIAL BALL (6001U) |
1 |
5.40 |
|
