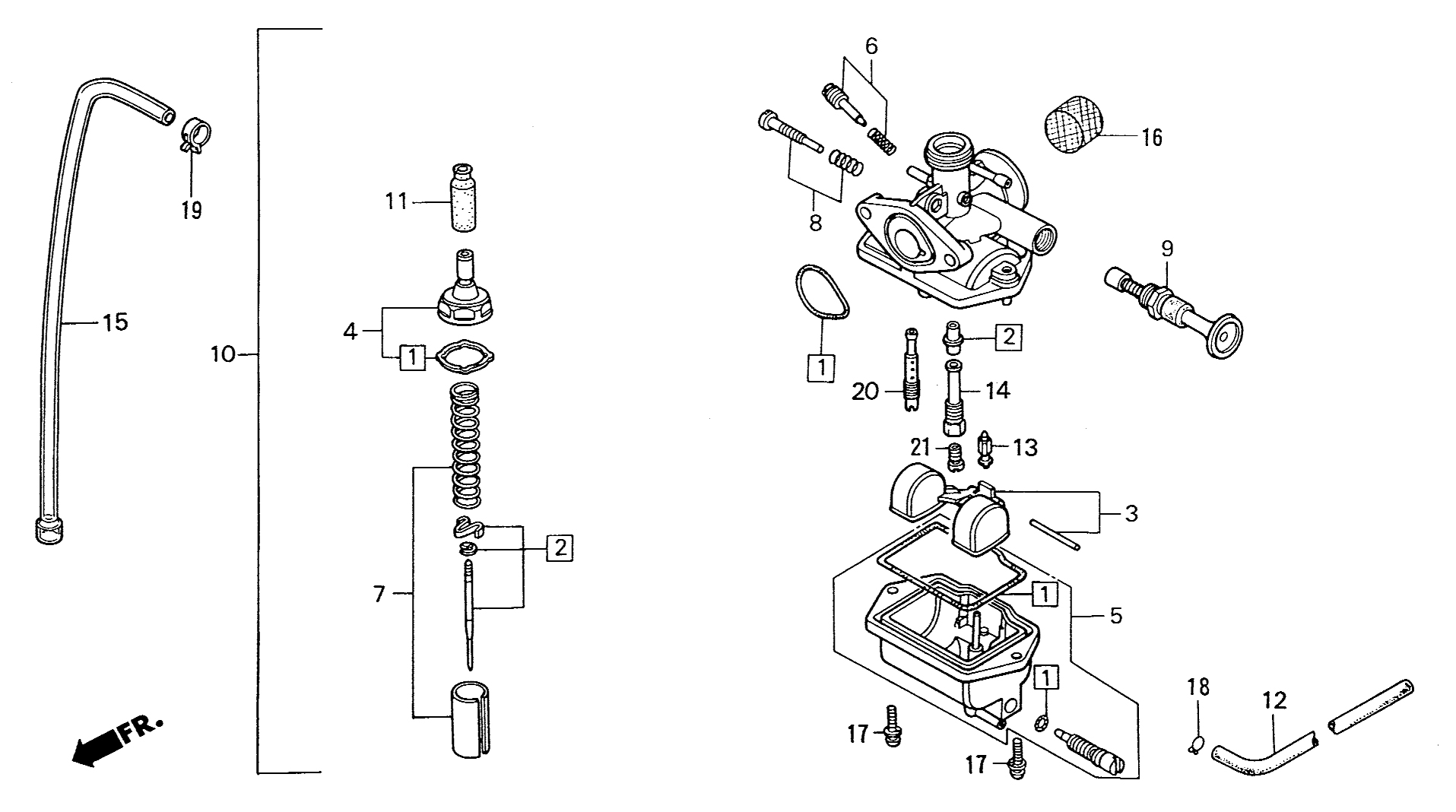

| 1 |
16010-166-004 |
GASKET SET, CARBURETOR |
1 |
11.45 |
|
| 2 |
16012-GT4-710 |
NEEDLE SET, JET |
1 |
21.40 |
|
| 3 |
16013-166-014 |
FLOAT SET |
1 |
36.15 |
|
| 4 |
16014-GC5-611 |
TOP SET |
1 |
20.60 |
|
| 5 |
16015-166-014 |
CHAMBER SET,FLOAT |
1 |
56.20 |
|
| 6 |
16016-KW7-930 |
SCREW SET, AIR [USE 16016-GB5-960] |
1 |
11.85 |
|
| 7 |
16022-GT4-970 |
VALVE SET, THROTTLE |
1 |
31.00 |
|
| 8 |
16028-166-004 |
SCREW SET B |
1 |
10.45 |
|
| 9 |
16046-GM2-014 |
VALVE SET |
1 |
30.60 |
|
| 10 |
16100-GT4-970 |
CARBURETOR ASSY |
1 |
149.20 |
|
| 11 |
16148-KB1-921 |
CAP,CABLE SEALING |
1 |
6.50 |
|
| 12 |
16144-MA1-671 |
TUBE, FUEL [USE 16199-MN5-405] |
1 |
3.40 |
|
| 13 |
16155-883-005 |
VALVE COMP, CARBURETOR FLOAT |
1 |
17.10 |
|
| 14 |
16165-GT4-003 |
HOLDER, NEEDLE JET |
1 |
16.65 |
|
| 15 |
17504-147-010 |
TUBE, OIL |
1 |
4.00 |
|
| 16 |
17516-NKL-000 |
CAP, CARBURETOR (se) |
1 |
0.00 |
|
| 17 |
93500-04016-1H |
SCREW, PAN (4x16) [USE 93500-04016-0H] |
2 |
0.40 |
|
| 18 |
95002-02659 |
CLIP. TUBE (B6.5) |
1 |
0.45 |
|
| 19 |
95002-40800-08 |
CLAMP, TUBE (D=8.0) |
1 |
0.75 |
|
| 20 |
99103-168-0400 |
JET, SLOW (#40) |
1 |
6.20 |
|
| 21 |
99110-GHB-1080 |
JET,MAIN #108 [USE 99101-MAZ-1080] |
1 |
5.10 |
|
