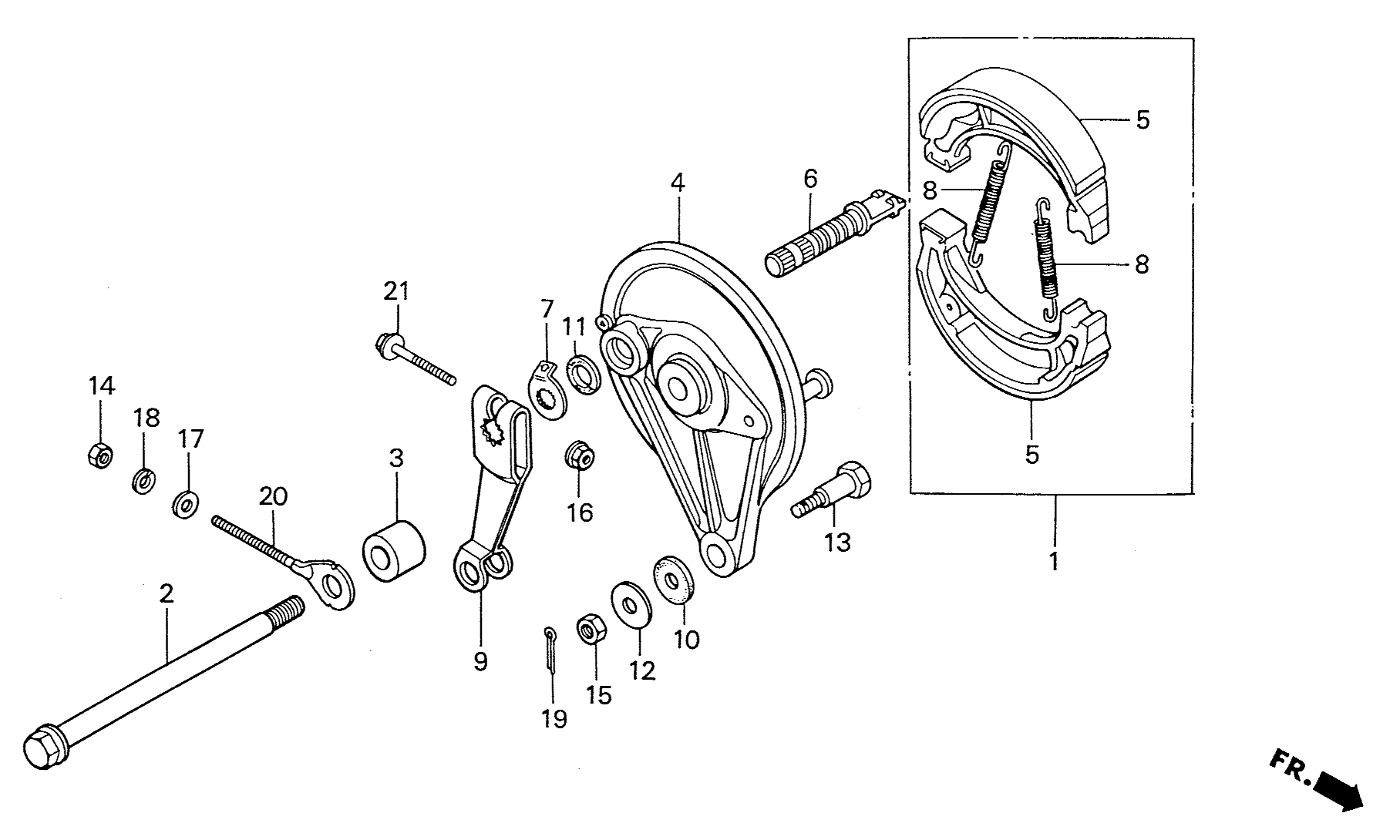

| 1 |
06430-KT0-305 |
SHOE KIT, BRAKE [USE 06430-GBJ-J10] |
1 |
33.55 |
|
| 2 |
42301-GE2-680 |
AXLE, REAR WHEEL |
1 |
19.60 |
|
| 3 |
42313-GE2-000 |
COLLAR, REAR BRAKE PANEL SIDE |
1 |
7.35 |
|
| 4 |
43100-NKL-000 |
PANEL COMP, REAR BRAKE (se) |
1 |
0.00 |
|
| 5 |
43125-KT0-711 |
SHOE COMP, BRAKE (se) |
2 |
0.00 |
|
| 6 |
43141-400-010 |
CAM, REAR BRAKE |
1 |
12.50 |
|
| 7 |
43145-GC5-000 |
INDICATOR, REAR BRAKE |
1 |
4.70 |
|
| 8 |
43151-110-000 |
SPRING, BRAKE SHOE |
2 |
3.35 |
|
| 9 |
43410-GE2-000 |
ARM, REAR BRAKE |
1 |
15.00 |
|
| 10 |
43434-286-000 |
RUBBER, STOPPER ARM CUSHION |
1 |
2.00 |
|
| 11 |
45134-250-000 |
DUST SEAL, BRAKE CAM |
1 |
1.80 |
|
| 12 |
90505-425-000 |
WASHER (8mm) [USE 90524-030-000] |
1 |
1.70 |
|
| 13 |
92811-10000 |
BOLT A, BRAKE STOPPER |
1 |
1.75 |
|
| 14 |
94001-06000-0S |
NUT, HEX (6mm) [USE 94001-06200-0S] |
1 |
0.45 |
|
| 15 |
94001-08000-0S |
NUT, HEX (8mm) |
1 |
0.45 |
|
| 16 |
94050-06000 |
NUT, FLANGE (6mm) |
1 |
0.55 |
|
| 17 |
94103-06000 |
WASHER, PLAIN (6mm) |
1 |
0.40 |
|
| 18 |
94111-06000 |
WASHER, SPRING (6mm) |
1 |
0.40 |
|
| 19 |
94201-20150 |
PIN, SPLIT (2.0x15) |
1 |
0.40 |
|
| 20 |
95014-10010 |
ADJUSTER, DRIVE CHAIN |
1 |
1.60 |
|
| 21 |
95701-06035-00 |
BOLT, FLANGE (6X35) |
1 |
0.60 |
|
