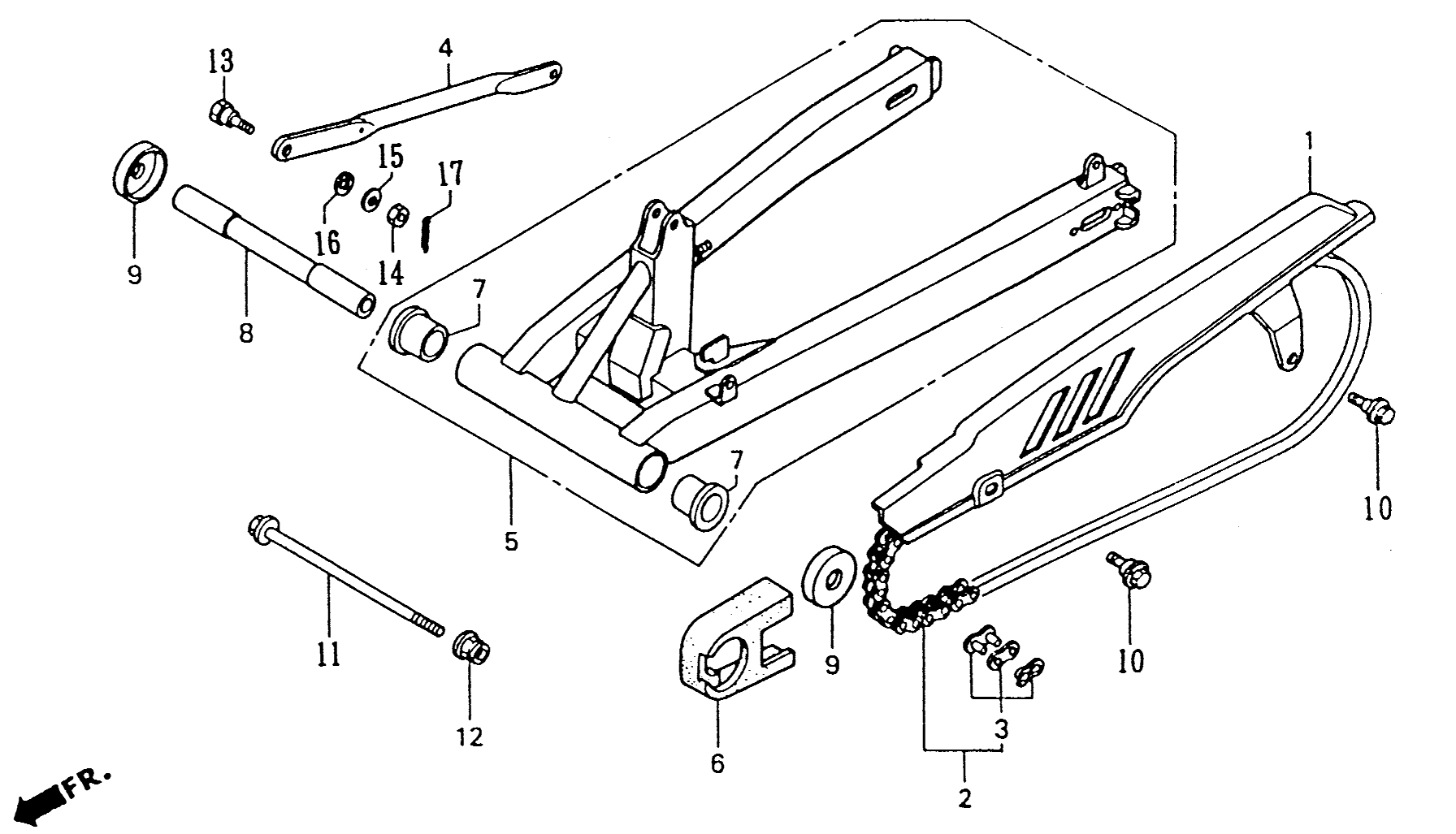

| 1 |
40510-GE2-000 |
CASE, DRIVE CHAIN |
1 |
27.75 |
|
| 2 |
40530-GE2-671 |
CHAIN, DRIVE (D.I.D.420MBK/1-118RJ) (DAIDO) (se) |
1 |
0.00 |
|
|
40530-GE2-672 |
CHAIN, DRIVE (RK420MS-118RJ) (RK EXCEL) (se) |
1 |
0.00 |
|
| 3 |
40531-GC4-602 |
MASTER LINK (DAIDO) |
1 |
2.55 |
|
|
40531-GM7-641 |
JOINT, DRIVE CHAIN (RK) |
1 |
2.90 |
|
| 4 |
43431-GE2-000 |
ARM, REAR BRAKE STOPPER (se) |
1 |
0.00 |
|
| 5 |
52100-NKL-000 |
SWINGARM ASSY,RR |
1 |
539.05 |
|
| 6 |
52107-GE2-000 |
SLIDER,CHAIN |
1 |
17.50 |
|
| 7 |
52108-KE5-003 |
BUSH, SWINGARM |
2 |
12.40 |
|
| 8 |
52141-GE2-670 |
COLLAR,RR SWING PIVOT |
1 |
23.10 |
|
| 9 |
52144-GE2-003 |
CAP, SWINGARM DUST SEAL (ARAI) [USE 52144-GE2-005] |
2 |
9.90 |
|
|
52144-GE2-005 |
CAP, SWINGARM DUST SEAL (ARAI) |
2 |
9.90 |
|
| 10 |
90111-187-000 |
BOLT, FLANGE (6MM) |
2 |
3.75 |
|
| 11 |
90121-GE2-000 |
BOLT, SWINGARM PIVOT |
1 |
26.50 |
|
| 12 |
90305-GE8-003 |
U-NUT (14mm) |
1 |
3.70 |
|
| 13 |
92812-10000 |
BOLT A, STOPPER ARM |
1 |
2.15 |
|
| 14 |
94001-08000-0S |
NUT, HEX (8mm) |
1 |
0.45 |
|
| 15 |
94101-08000 |
WASHER, PLAIN (8mm) |
1 |
0.40 |
|
| 16 |
94111-10000 |
WASHER, SPRING (10MM) |
1 |
0.55 |
|
| 17 |
94201-20150 |
PIN, SPLIT (2.0x15) |
1 |
0.40 |
|
