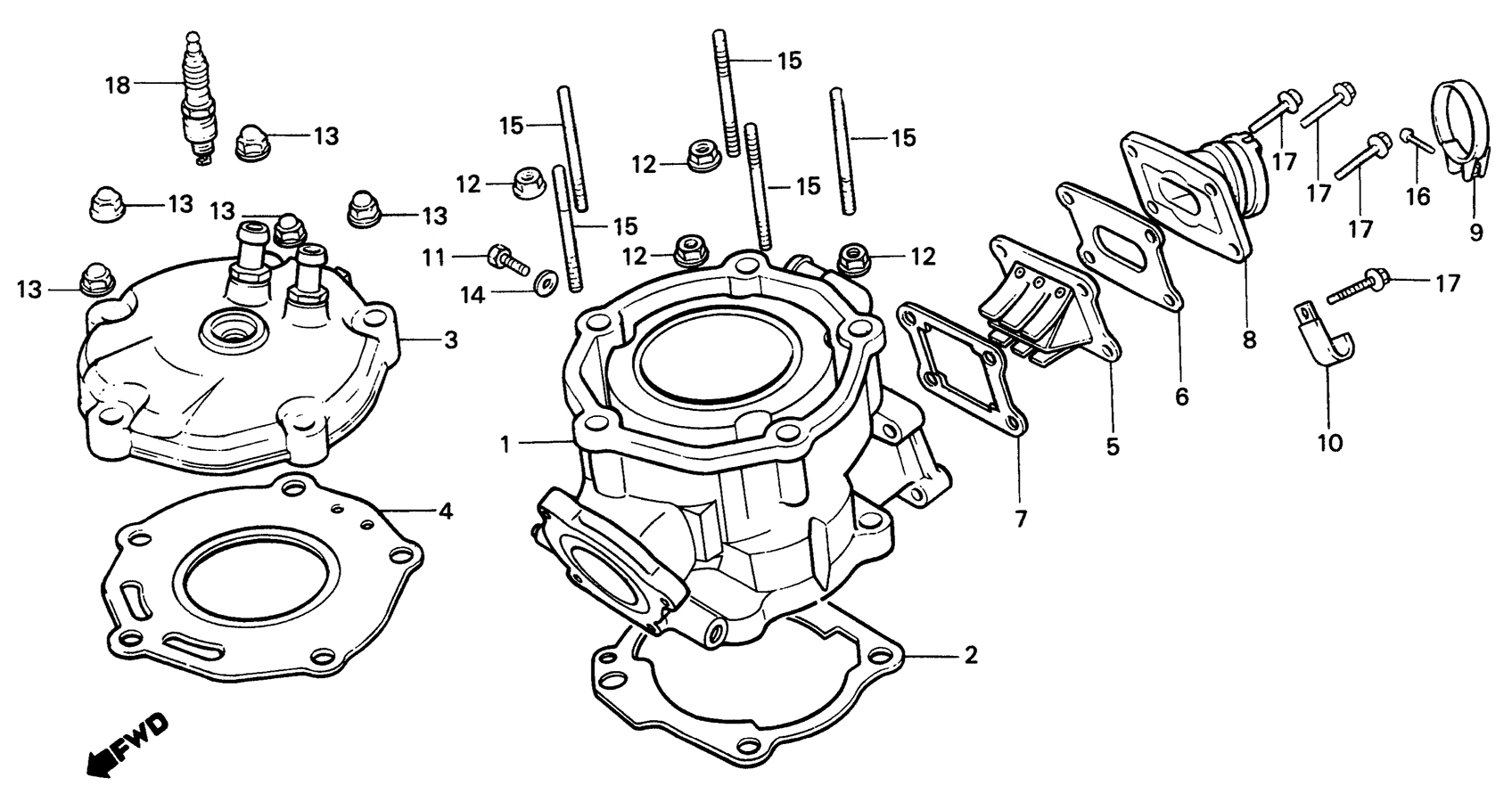

| 1 |
12100-ND4-000 |
CYLINDER COMP (56mm) (se) |
1 |
0.00 |
|
| 2 |
12191-KA3-740 |
GASKET, CYLINDER (se) |
1 |
0.00 |
|
| 3 |
12200-KA3-740 |
CYLINDER HEAD (se) |
1 |
0.00 |
|
| 4 |
12251-ND4-000 |
GASKET, CYLINDER HEAD (se) |
1 |
0.00 |
|
| 5 |
14100-KA3-711 |
STATOR (KOKUSAN) (se) |
1 |
0.00 |
|
| 6 |
14131-KA3-710 |
GASKET A, REED VALVE (se) |
1 |
0.00 |
|
| 7 |
14132-KA3-710 |
GASKET, REED VALVE (se) |
1 |
0.00 |
|
| 8 |
16221-KA3-710 |
INSULATOR, CARBURETOR (se) |
1 |
0.00 |
|
| 9 |
16223-KA3-740 |
BAND, INSULATOR |
1 |
7.05 |
|
| 10 |
32111-323-000 |
CLAMP, WIRE |
1 |
5.95 |
|
| 11 |
90037-360-000 |
BOLT, FLUID CHECK (6x10 SAFETY WIRE HOLES) [USE 90037-NX5-053] |
1 |
5.85 |
|
| 12 |
90236-300-000 |
NUT, FLANGE (8mm) [USE 94050-08000] |
4 |
0.55 |
|
| 13 |
90443-107-000 |
NUT, CAP (8mm) |
5 |
3.50 |
|
| 14 |
90543-273-000 |
PACKING, FRONT FORK DRAIN |
1 |
2.20 |
|
| 15 |
92700-08050-0E |
BOLT, STUD (8x32) [USE 92900-08032-0E] |
5 |
0.95 |
|
| 16 |
93500-06020-0A |
SCREW, PAN HEAD (6X20) |
1 |
0.50 |
|
| 17 |
96000-06022-00 |
BOLT, FLANGE (6x22) [USE 96001-06022-00] |
4 |
0.75 |
|
| 18 |
98079-60645 |
PLUG, SPARK (B-10EGV) [USE R5530-10] |
1 |
45.50 |
|
|
98079-61645 |
PLUG, SPARK (B-11EGV) [USE R6179A-11P] |
(1) |
41.52 |
|
