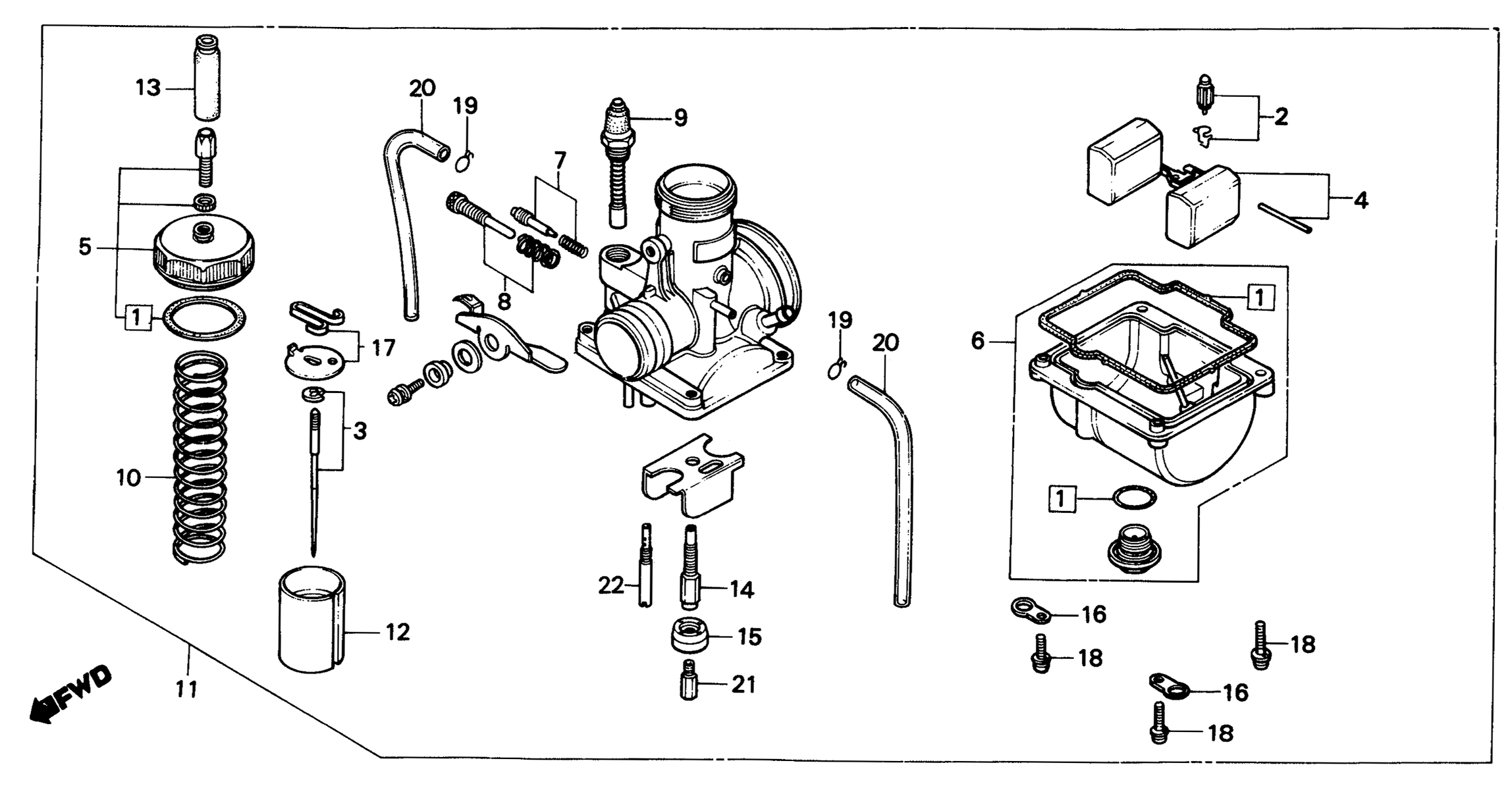

| 1 |
16010-KA3-004 |
GASKET SET, CARBURETOR |
1 |
23.05 |
|
| 2 |
16011-KA3-741 |
VALVE SET, FLOAT |
1 |
46.40 |
|
| 3 |
16012-KA3-004 |
NEEDLE SET, JET (28C) (se) |
1 |
0.00 |
|
|
16201-ND4-004 |
NEEDLE SET, JET (28S) (se) |
(1) |
0.00 |
|
|
16202-ND4-004 |
NEEDLE SET, JET (28T) (se) |
(1) |
0.00 |
|
| 4 |
16013-KA3-741 |
FLOAT SET, CARBURETOR [USE 16013-HA2-671] |
1 |
30.60 |
|
| 5 |
16014-KA3-701 |
TOP SET (se) |
1 |
0.00 |
|
| 6 |
16015-ND4-004 |
CHAMBER SET, FLOAT (se) |
1 |
0.00 |
|
| 7 |
16016-166-004 |
SCREW SET A [USE 16016-GB4-003] |
1 |
13.45 |
|
| 8 |
16028-KA5-004 |
SCREW SET B (se) |
1 |
0.00 |
|
| 9 |
16046-KA3-004 |
VALVE SET, STARTER [USE 16046-KAE-730] (se) |
1 |
0.00 |
|
| 10 |
16050-KA3-701 |
SPRING, COMPRESSION COIL (se) |
1 |
0.00 |
|
|
16210-KA3-701 |
SPRING, COMPRESSION COIL (se) |
(1) |
0.00 |
|
| 11 |
16100-ND4-004 |
CARBURETOR ASSY (se) |
1 |
0.00 |
|
| 12 |
16111-KA3-701 |
VALVE, THROTTLE (#4.0) (se) |
(1) |
0.00 |
|
|
16111-KA3-813 |
VALVE, THROTTLE (#3.5) (se) |
1 |
0.00 |
|
|
16111-KA3-814 |
VALVE, THROTTLE (#3.0) (se) |
(1) |
0.00 |
|
| 13 |
16118-166-004 |
CAP, CABLE SEALING |
1 |
5.65 |
|
| 14 |
16164-KA5-004 |
NEEDLE, JET (se) |
1 |
0.00 |
|
| 15 |
16168-KA5-004 |
HOLDER, JET (se) |
1 |
0.00 |
|
| 16 |
16179-428-671 |
PLATE, VENT TUBE (se) |
2 |
6.90 |
|
| 17 |
16212-KA3-701 |
PLATE SET (se) |
1 |
0.00 |
|
| 18 |
93892-04016-08 |
SCREW-WASHER (4x16) |
4 |
0.50 |
|
| 19 |
95002-02070 |
CLIP, TUBE (B7) |
2 |
0.50 |
|
| 20 |
95003-07012-31 |
TUBE, VINYL (4x7x120) [USE 95003-07001-60M] |
2 |
1.70 |
|
| 21 |
99101-357-1450 |
JET, MAIN KEIHIN (#145) |
(1) |
3.85 |
|
|
99101-357-1480 |
JET, MAIN KEIHIN (#148) |
(1) |
3.85 |
|
|
99101-357-1500 |
JET, MAIN KEIHIN (#150) [USE 99113-GHB-1500] |
(1) |
6.90 |
|
|
99101-357-1520 |
JET, MAIN KEIHIN (#152) |
(1) |
6.90 |
|
|
99101-357-1550 |
JET, MAIN KEIHIN (#155) [USE 99113-GHB-1550] |
(1) |
6.90 |
|
|
99101-357-1580 |
JET, MAIN KEIHIN (#158) [USE 99113-GHB-1580] |
1 |
5.80 |
|
|
99101-357-1600 |
JET, MAIN KEIHIN (#160) [USE 99113-GHB-1600] |
(1) |
5.80 |
|
|
99101-357-1620 |
JET, MAIN KEIHIN (#162) [USE 99113-GHB-1620] |
(1) |
5.80 |
|
|
99101-357-1650 |
JET, MAIN KEIHIN (#165) [USE 99113-GHB-1650] |
(1) |
5.80 |
|
|
99101-357-1680 |
JET, MAIN KEIHIN (#168) [USE 99113-GHB-1680] |
(1) |
6.90 |
|
| 22 |
99103-441-0450 |
JET, SLOW (#45) (se) |
(1) |
0.00 |
|
|
99103-441-0480 |
JET, SLOW (#48) (se) |
1 |
0.00 |
|
|
99103-441-0500 |
JET, SLOW (#50) (se) |
(1) |
0.00 |
|
