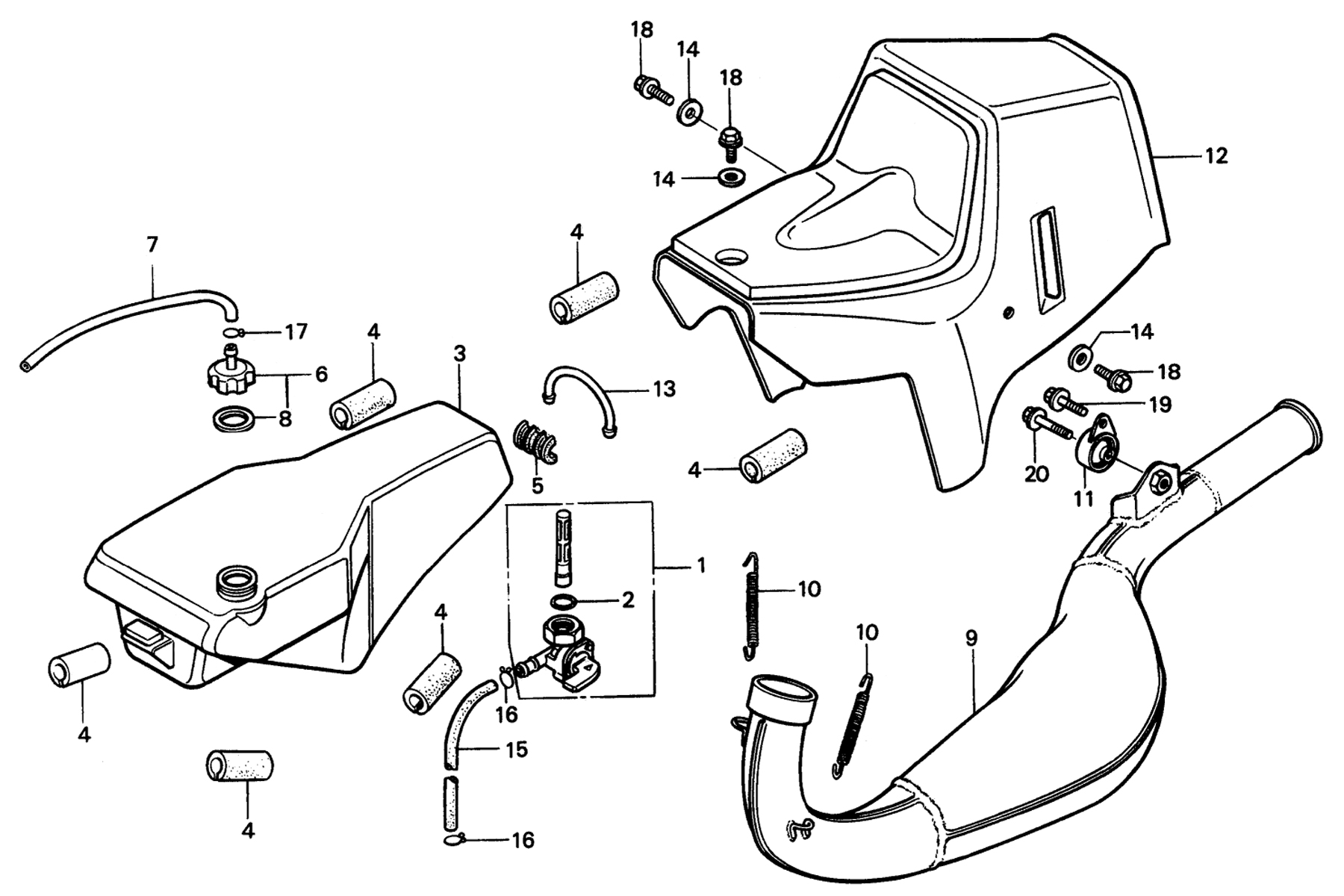

| 1 |
16950-ND4-000 |
COCK ASSY, FUEL (se) |
1 |
0.00 |
|
| 2 |
16958-MA1-731 |
O-RING (10.6x1.3) [USE 16075-GHB-720] |
1 |
3.15 |
|
| 3 |
17500-ND4-000 |
TANK COMP, FUEL (se) |
1 |
0.00 |
|
| 4 |
17504-NC2-000 |
RUBBER, FUEL TANK PAD (se) |
6 |
0.00 |
|
| 5 |
17505-NC2-000 |
RUBBER, FUEL TANK MOUNT (se) |
1 |
0.00 |
|
| 6 |
17510-355-010 |
CAP ASSY, FUEL TANK (se) |
1 |
0.00 |
|
| 7 |
17520-357-000 |
TUBE, FUEL CAP BREATHER |
1 |
4.60 |
|
| 8 |
17624-355-010 |
GASKET, FUEL CAP [USE 17624-896-750] (se) |
1 |
0.00 |
|
| 9 |
18300-ND4-000 |
CHAMBER COMP, EXPANSION (se) |
1 |
0.00 |
|
| 10 |
18332-357-010 |
SPRING, EXHAUST PIPE [USE 18332-KS6-000] |
2 |
7.35 |
|
| 11 |
18358-430-000 |
STAY ASSY, SILENCER (se) |
1 |
0.00 |
|
| 12 |
77100-ND4-000 |
SEAT COMP (se) |
1 |
0.00 |
|
| 13 |
83503-360-000 |
BAND, SIDE COVER [83503-360-700] (se) |
1 |
0.00 |
|
| 14 |
90514-700-000 |
WASHER, TANK COLLAR LOCK (se) |
3 |
0.00 |
|
| 15 |
95001-75250-40 |
TUBE, FUEL (7.5x250) (se) |
1 |
0.00 |
|
| 16 |
95002-02120 |
CLIP, TUBE (B12) |
2 |
0.50 |
|
| 17 |
95002-50000 |
CLIP, TUBE (9mm) |
1 |
0.35 |
|
| 18 |
95700-06012-00 |
BOLT, FLANGE (6x12) [USE 95701-06012-00] |
3 |
0.55 |
|
| 19 |
95700-08012-00 |
BOLT, FLANGE (8x12) [USE 95701-08012-00] |
1 |
0.65 |
|
| 20 |
95700-08032-00 |
BOLT, FLANGE (8x32) [USE 95701-08032-00] |
1 |
0.80 |
|
