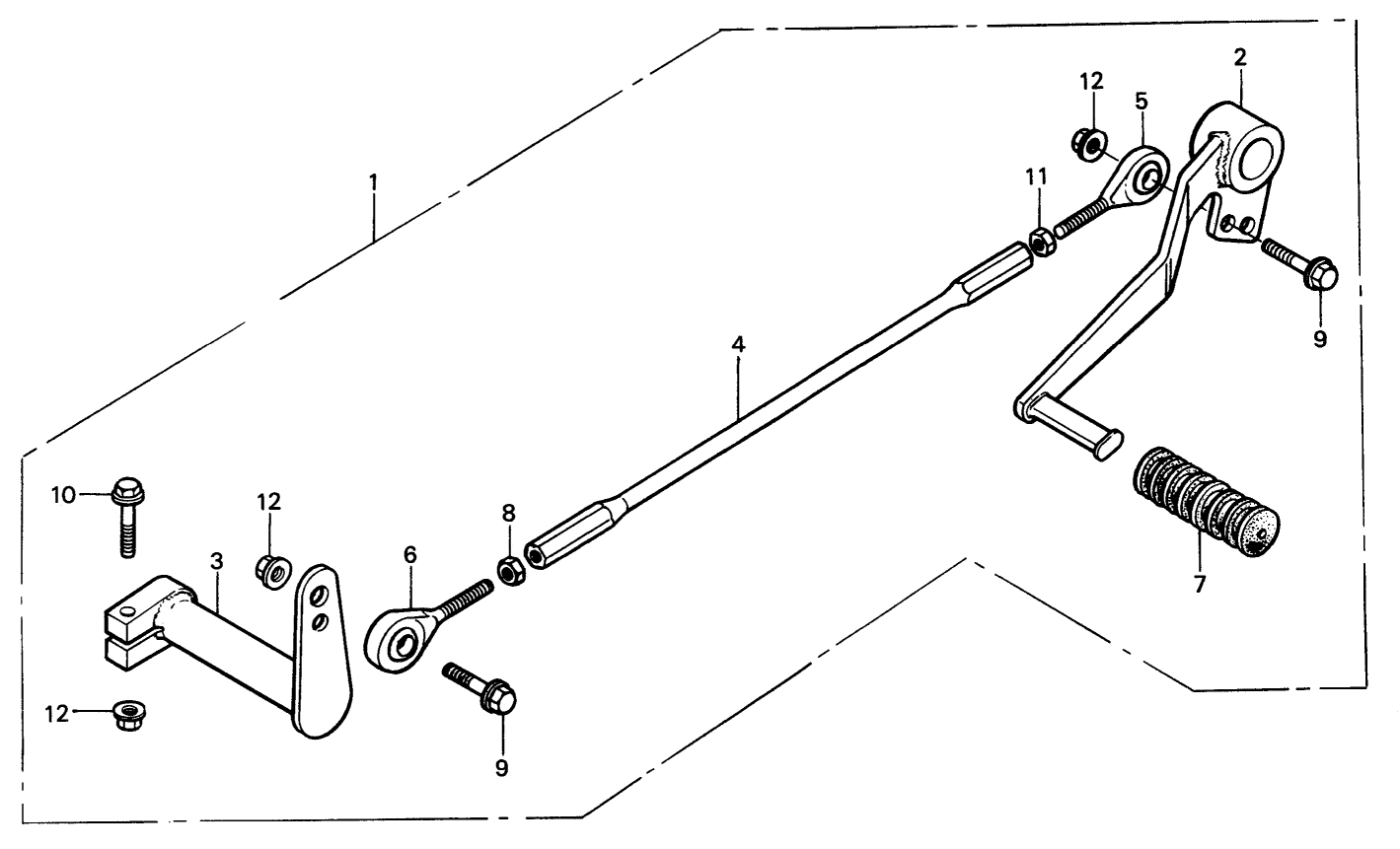

| 1 |
24700-ND4-810 |
CHANGE ASSEMBLY (se) |
(1) |
0.00 |
|
| 2 |
24701-ND4-810 |
PEDAL, GEAR CHANGE (se) |
(1) |
0.00 |
|
| 3 |
24702-ND4-810 |
ARM, GEAR CHANGE (se) |
(1) |
0.00 |
|
| 4 |
24706-ND4-700 |
ROD, CHANGE (se) |
(1) |
0.00 |
|
| 5 |
24711-NC8-000 |
ROD END, A (6mm RIGHT THREAD) [USE 24711-NX4-710] |
(1) |
17.40 |
|
| 6 |
24712-NC8-000 |
ROD END, B (6mm LEFT THREAD) [USE 24712-NX4-710] |
(1) |
16.90 |
|
| 7 |
24781-419-000 |
RUBBER, GEARSHIFT PEDAL |
(1) |
4.20 |
|
| 8 |
90301-NC8-000 |
U-NUT (6 mm) (se) |
(1) |
0.00 |
|
| 9 |
92200-06020 |
BOLT, HEX (6x20) [USE 92101-060200A] |
(2) |
0.50 |
|
| 10 |
92200-06028 |
BOLT, HEX (6x28) [USE 92201-060280A] |
(1) |
0.55 |
|
| 11 |
94002-06000-0S |
NUT, HEX (6mm) (se) |
(1) |
0.00 |
|
| 12 |
94050-06000 |
NUT, FLANGE (6mm) |
(3) |
0.55 |
|
