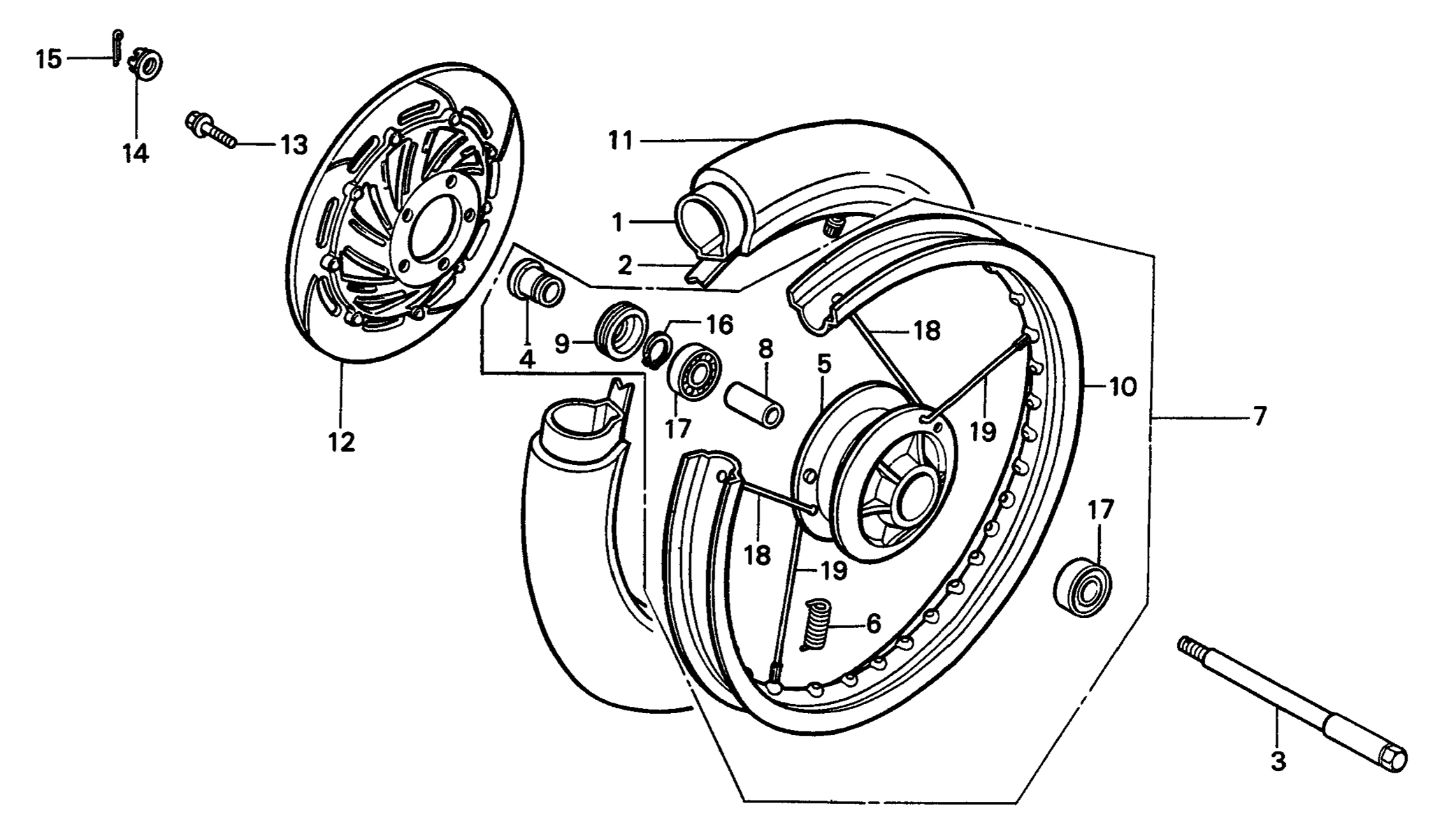

| 1 |
42712-ND4-750 |
TUBE, TIRE (se) |
1 |
0.00 |
|
| 2 |
42713-401-681 |
FLAP, TIRE (se) |
1 |
0.00 |
|
| 3 |
44301-NC2-000 |
AXLE, FRONT WHEEL (se) |
1 |
0.00 |
|
| 4 |
44303-ND4-750 |
COLLAR, FRONT WHEEL SIDE (se) |
1 |
0.00 |
|
| 5 |
44601-NA4-000 |
HUB, FRONT WHEEL (se) |
1 |
0.00 |
|
| 6 |
44606-NA4-000 |
BALANCER A (WIRE ROD) (se) |
N |
0.00 |
|
|
44606-283-000 |
BALANCER (20G) [USE 42705-MEG-003] |
N |
6.10 |
|
| 7 |
44610-ND4-750 |
RIM ASSY, FRONT (1.85x18) (se) |
1 |
0.00 |
|
|
44610-ND4-850 |
RIM ASSY, FRONT (1.60x18) (se) |
(1) |
0.00 |
|
| 8 |
44620-NA4-000 |
COLLAR, FRONT AXLE DISTANCE (se) |
1 |
0.00 |
|
| 9 |
44643-ND4-750 |
RETAINER, WHEEL BEARING (se) |
1 |
0.00 |
|
| 10 |
44701-NA4-000 |
RIM, FRONT WHEEL (1.60x18) (se) |
(1) |
0.00 |
|
|
44701-ND4-810 |
RIM, FRONT WHEEL (1.85x18) (se) |
1 |
0.00 |
|
| 11 |
44711-ND4-750 |
TIRE (2.50/2.75x18) (se) |
1 |
0.00 |
|
| 12 |
45120-MB2-000 |
DISK COMP, RIGHT FRONT (se) |
1 |
0.00 |
|
| 13 |
90112-413-000 |
BOLT, UBS (8X33) |
5 |
0.00 |
|
| 14 |
90305-401-680 |
NUT, AXLE (14 mm) |
1 |
10.31 |
|
| 15 |
94201-30250 |
PIN, SPLIT (3.0x25) |
1 |
0.45 |
|
| 16 |
94511-22000 |
CIRCLIP EXTERNAL (22mm) |
1 |
0.55 |
|
| 17 |
96140-63020-10 |
BEARING, RADIAL BALL (6302U) [USE 96150-63020-10] |
2 |
9.50 |
|
| 18 |
97310-42229-L0 |
SPOKE-SET (B10x194.5) (se) |
18 |
0.00 |
|
| 19 |
97664-42228-L0 |
SPOKE-SET (B10x194) (se) |
18 |
0.00 |
|
