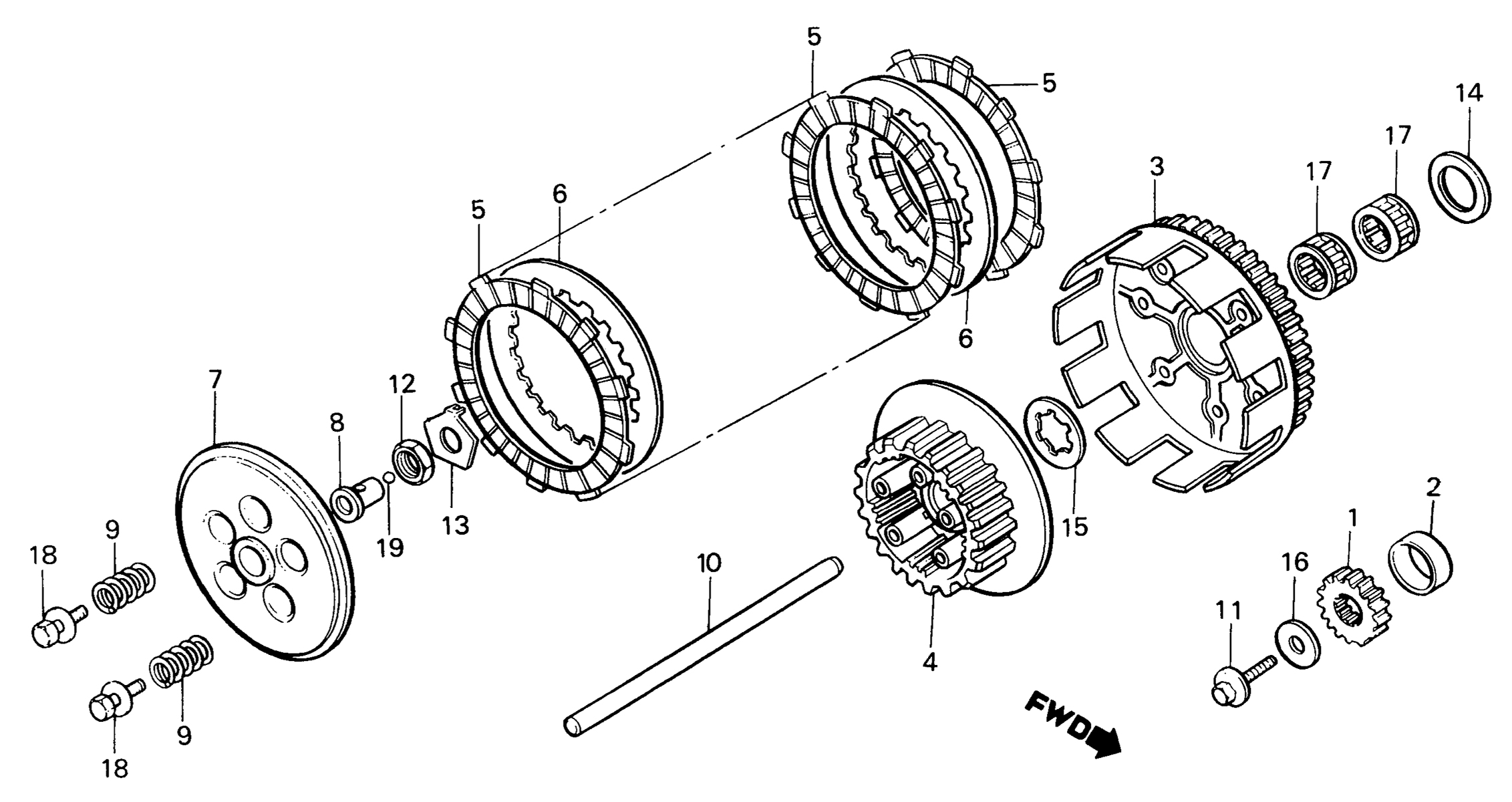

| 1 |
13615-KA3-740 |
GEAR, PRIMARY DRIVE (se) |
1 |
0.00 |
|
| 2 |
13617-KA3-740 |
COLLAR, DRIVE GEAR (se) |
1 |
0.00 |
|
| 3 |
22100-KA3-740 |
OUTER COMP, CLUTCH (se) |
1 |
0.00 |
|
| 4 |
22120-KA3-710 |
CENTER, CLUTCH (se) |
1 |
0.00 |
|
| 5 |
22201-ND4-000 |
DISK, CLUTCH FRICTION (se) |
6 |
0.00 |
|
| 6 |
22321-ND4-000 |
PLATE, CLUTCH (se) |
5 |
0.00 |
|
| 7 |
22351-KA3-760 |
PLATE, CLUTCH PRESSURE (se) [USE 22351-KS6-000] |
1 |
0.00 |
|
| 8 |
22352-KA4-000 |
PIECE, CLUTCH LIFTER |
1 |
24.40 |
|
| 9 |
22401-ND4-000 |
SPRING, CLUTCH (se) |
5 |
0.00 |
|
| 10 |
22850-KA3-710 |
ROD, CLUTCH LIFTER (se) |
1 |
0.00 |
|
| 11 |
90013-430-000 |
BOLT, SPECIAL (10x25) |
1 |
6.15 |
|
| 12 |
90235-444-000 |
NUT, HEX. (18mm) (se) |
1 |
0.00 |
|
| 13 |
90411-KA3-000 |
WASHER, LOCK (18mm) (se) |
1 |
0.00 |
|
| 14 |
90451-KA3-710 |
WASHER, THRUST (22x32) (se) |
1 |
0.00 |
|
| 15 |
90456-KA3-710 |
WASHER, SPLINE (22mm) (se) |
1 |
0.00 |
|
| 16 |
90481-430-000 |
WASHER (10mm) |
1 |
4.95 |
|
| 17 |
91011-KA3-711 |
BEARING, NEEDLE (22X26X10) (TOYO) (se) |
2 |
0.00 |
|
| 18 |
93494-06020-08 |
BOLT-WASHER (6x20) [USE 93404-06020-08] |
5 |
0.55 |
|
| 19 |
96211-09000 |
BALL, STEEL (#9) |
1 |
0.25 |
|
