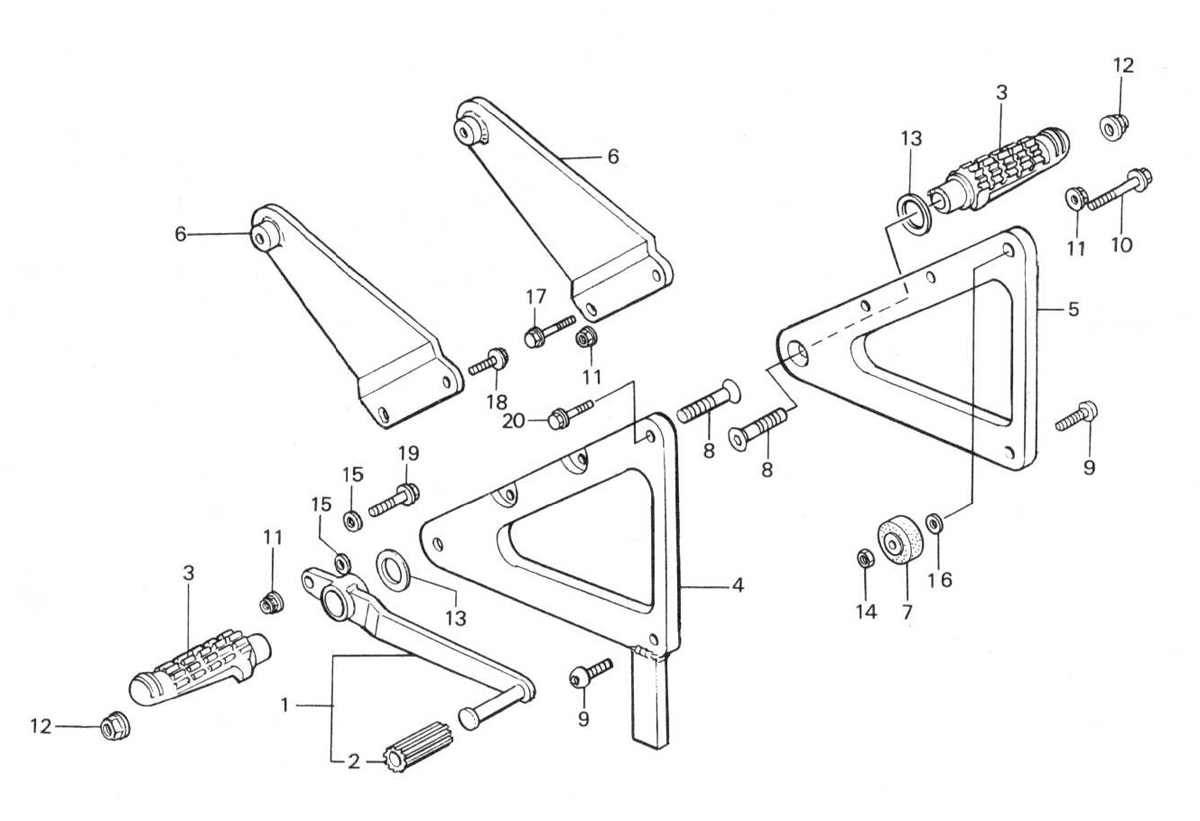

| 1 |
46500-NF4-000 |
PEDAL COMP, BRAKE (se) |
1 |
0.00 |
|
| 2 |
46501-ND4-750 |
RUBBER, PEDAL |
1 |
4.90 |
|
| 3 |
50610-ND5-750 |
ARM COMP., STEP (se) |
2 |
0.00 |
|
| 4 |
50630-NF4-000 |
HOLDER, RIGHT STEP (se) |
1 |
0.00 |
|
| 5 |
50640-NF4-000 |
HOLDER, LEFT STEP (se) |
1 |
0.00 |
|
| 6 |
50641-NF4-000 |
PLATE COMP, FOOT GUARD (se) |
2 |
0.00 |
|
| 7 |
52158-KA3-831 |
ROLLER COMP, CHAIN TENSIONER |
1 |
40.15 |
|
| 8 |
90104-NF4-000 |
BOLT FLAT HEAD 10X50 (se) |
2 |
0.00 |
|
| 9 |
90178-NC8-000 |
BOLT (8x22) (se) |
2 |
0.00 |
|
| 10 |
90218-KJ2-000 |
BOLT, FLANGE (8x57) |
1 |
2.90 |
|
| 11 |
90301-473-003 |
U-NUT (6mm) |
3 |
4.15 |
|
| 12 |
90304-GA6-003 |
NUT, AXLE (10mm) |
2 |
2.60 |
|
| 13 |
90309-428-731 |
NUT, FLANGE LOCK (8mm) |
1 |
3.35 |
|
| 14 |
90407-KK1-000 |
WASHER (16.2 mm) [USE 90434-KR3-000] |
2 |
2.30 |
|
| 15 |
94101-06000 |
WASHER, PLAIN (6mm) |
2 |
0.40 |
|
| 16 |
94102-08000 |
WASHER, PLAIN (8mm) |
1 |
0.35 |
|
| 17 |
95701-06018-00 |
BOLT, FLANGE (6x18) |
2 |
0.55 |
|
| 18 |
95801-06022-00 |
BOLT, FLANGE (6x22) [USE 95701-06022-00] |
2 |
0.60 |
|
| 19 |
95801-06025-00 |
BOLT, FLANGE (6x25) |
1 |
0.65 |
|
| 20 |
95801-08022-00 |
BOLT, FLANGE (8x22) [USE 95701-08022-00] |
1 |
0.75 |
|
