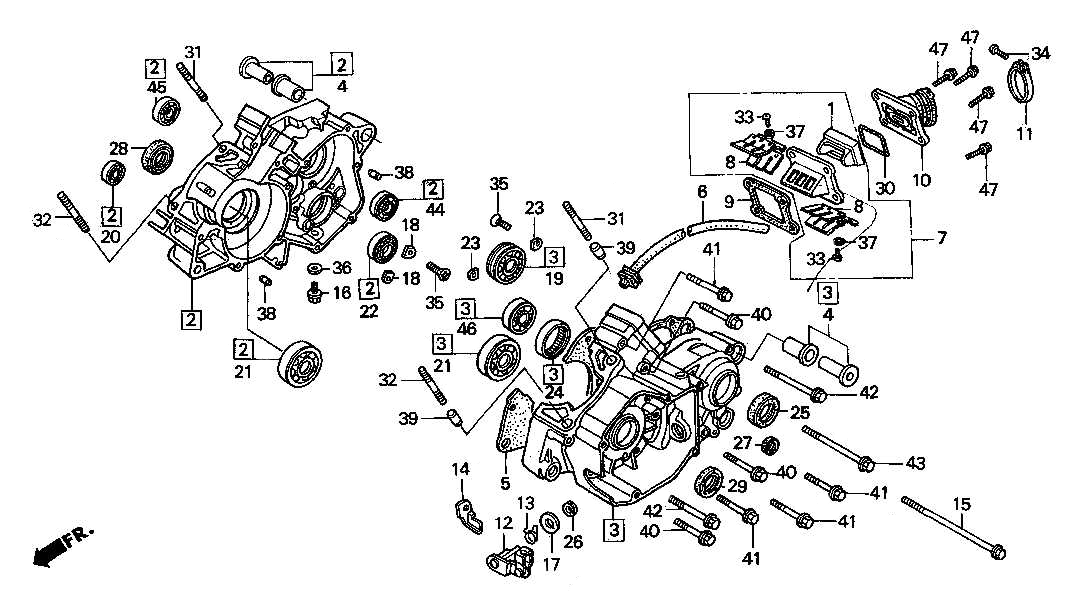

| 1 |
04101-NF4-000 |
RECTIFIER, INTAKE (se) |
1 |
0.00 |
|
| 2 |
11010-NF4-760 |
CRANKCASE ASSY, RIGHT (se) |
1 |
0.00 |
|
| 3 |
11011-NF4-760 |
CRANKCASE ASSY, LEFT (se) |
1 |
0.00 |
|
| 4 |
11012-NF4-750 |
BUSH SET, REAR ENGINE MOUNT (se) |
2 |
97.30 |
|
| 5 |
11191-KS6-880 |
GASKET, CRANKCASE [USE 11191-KZ4-620] |
1 |
17.40 |
|
| 6 |
11211-GC4-701 |
TUBE, BREATHER |
1 |
6.70 |
|
| 7 |
14100-NF4-760 |
VALVE ASSY, REED (se) |
1 |
0.00 |
|
| 8 |
14111-NF4-760 |
PEDAL, REED VALVE (se) |
2 |
0.00 |
|
| 9 |
14132-KS6-880 |
GASKET, REED VALVE B [USE 14132-KY4-970] |
2 |
3.75 |
|
| 10 |
16220-KS6-700 |
INSULATOR, CARBURETOR (se) |
1 |
0.00 |
|
| 11 |
16223-KA3-740 |
BAND, INSULATOR |
1 |
7.05 |
|
| 12 |
22810-KS6-700 |
LIFTER COMP, CLUTCH |
1 |
57.05 |
|
| 13 |
22815-KS6-700 |
SPRING, CLUTCH ARM RETURN |
1 |
2.65 |
|
| 14 |
22821-KS6-700 |
STOPPER, CLUTCH LIFTER (se) |
1 |
0.00 |
|
| 15 |
90001-NF4-760 |
BOLT, FLANGE (6x100) (se) |
1 |
0.00 |
|
| 16 |
90081-NC2-000 |
BOLT,DRAIN 12MM [USE 90081-NX4-000] |
1 |
1.85 |
|
| 17 |
90401-430-000 |
WASHER, (10.2mm) |
1 |
2.05 |
|
| 18 |
90441-KS6-700 |
PLATE, BEARING HOLDER (se) |
2 |
0.00 |
|
| 19 |
91001-KA3-711 |
BEARING, RADIAL BALL (6204) |
1 |
19.80 |
|
| 20 |
91002-KA4-003 |
BEARING, BALL (7x19x6) |
1 |
10.55 |
|
| 21 |
91002-466-008 |
BEARING, RADIAL BALL (63/22) (NTN) [USE 91002-KY4-901] |
2 |
21.10 |
|
| 22 |
91004-430-003 |
BEARING, RADIAL BALL (25x42x9 NTN) [USE 91004-GC4-731] |
1 |
14.35 |
|
| 23 |
91012-KA3-710 |
PLATE, COUNTER SHAFT BEARING |
2 |
2.80 |
|
| 24 |
91022-KA4-740 |
BEARING, SHELL (33x38x8) |
1 |
12.90 |
|
| 25 |
91201-KS6-003 |
OIL SEAL (26x37x6) (NOK) [USE 91201-KS6-004] |
1 |
8.10 |
|
| 26 |
91202-KA3-712 |
OIL SEAL (10x17x4) [USE 91202-KA3-711] |
1 |
3.50 |
|
| 27 |
91203-KA4-771 |
OIL SEAL (14x22x5) |
1 |
4.95 |
|
| 28 |
91203-KS6-003 |
OIL SEAL (30X45X8) [USE 91203-KS6-004] |
1 |
9.90 |
|
| 29 |
91205-166-004 |
OIL SEAL (20x32x7) |
1 |
14.55 |
|
| 30 |
91301-KS6-003 |
O RING, SPECIAL |
1 |
4.40 |
|
| 31 |
92900-08035-3E |
BOLT, STUD (8x35) |
2 |
1.00 |
|
| 32 |
92900-08040-3E |
BOLT, STUD (8x40) |
2 |
0.95 |
|
| 33 |
93500-03008-0H |
SCREW, PAN HEAD (3x8) |
6 |
0.40 |
|
| 34 |
93500-05028-0A |
SCREW, PAN HEAD (5x28) |
1 |
0.40 |
|
| 35 |
93600-06012-0A |
SCREW, FLAT HEAD (6x12) |
4 |
0.45 |
|
| 36 |
94109-12000 |
WASHER, DRAIN PLUG (12mm) |
1 |
0.45 |
|
| 37 |
94111-03800 |
WASFER,SPRING,3MM |
6 |
0.40 |
|
| 38 |
94301-08140 |
PIN, DOWEL (8x14) |
2 |
0.90 |
|
| 39 |
94301-10160 |
PIN, DOWEL (10x16) |
2 |
0.85 |
|
| 40 |
96001-06045-07 |
BOLT, FLANGE SH (6x45) BK |
3 |
0.85 |
|
| 41 |
96001-06050-07 |
BOLT, FLANGE SH (6x50) BK |
4 |
0.85 |
|
| 42 |
96001-06075-07 |
BOLT, FLANGE SH (6x75) BK |
2 |
0.85 |
|
| 43 |
96001-06085-07 |
BOLT, FLANGE SH (6x85) BK |
1 |
1.00 |
|
| 44 |
96100-60030-00 |
BEARING, RADIAL BALL (6003) |
1 |
6.60 |
|
| 45 |
96100-60040-00 |
BEARING, RADIAL BALL (6004) |
1 |
6.20 |
|
| 46 |
96140-60030-00 |
BEARING, RADIAL BALL (6003U) |
1 |
7.30 |
|
| 47 |
96300-06022-00 |
BOLT, FLANGE (6x22) |
4 |
0.70 |
|
