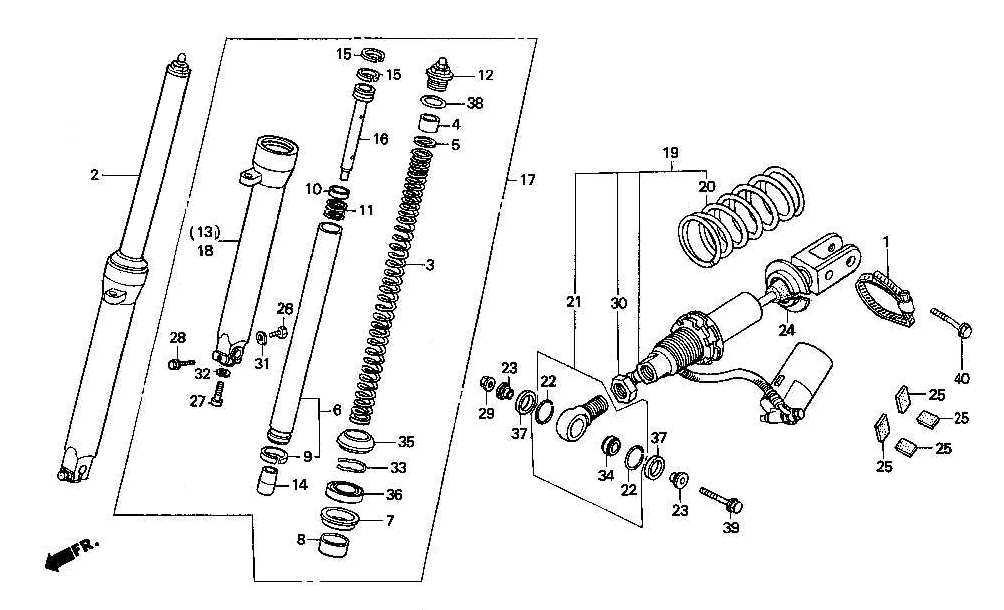

| 1 |
50252-NF4-750 |
BAND, SUB TANK (se) |
1 |
0.00 |
|
| 2 |
51400-NF4-761 |
FORK ASSY, RIGHT FRONT (se) |
1 |
0.00 |
|
| 3 |
51401-NF4-003 |
SPRING A, FRONT FORK (K=0.60 kg/mm) (se) |
2 |
0.00 |
|
|
51401-NF4-813 |
SPRING B, FRONT FORK (K=0.65 kg/mm) (se) |
(2) |
0.00 |
|
|
51401-NF4-823 |
SPRING C, FRONT FORK (K=0.55 kg/mm) (se) |
(2) |
0.00 |
|
| 4 |
51402-NF4-003 |
COLLAR, FORK SPRING (se) |
2 |
0.00 |
|
| 5 |
51403-961-003 |
PLATE, SPRING JOINT (se) |
2 |
0.00 |
|
| 6 |
51410-NF4-003 |
PIPE COMP, SPRING JOINT (se) |
2 |
0.00 |
|
| 7 |
51412-446-003 |
RING, BACK UP |
2 |
5.40 |
|
| 8 |
51414-NF4-003 |
BUSH, GUIDE (se) |
2 |
0.00 |
|
| 9 |
51415-KK4-003 |
BUSH, SLIDE (se) |
2 |
0.00 |
|
| 10 |
51415-NF4-003 |
COLLAR, REBOUND (se) |
2 |
0.00 |
|
| 11 |
51416-NF4-003 |
SPRING, REBOUND (se) |
2 |
0.00 |
|
| 12 |
51417-ND4-000 |
BOLT COMP, FORK (se) |
2 |
0.00 |
|
| 13 |
51421-NF4-761 |
CASE COMP, RIGHT BOTTOM (se) |
1 |
0.00 |
|
| 14 |
51432-NF4-003 |
PIECE, OIL LOCK (se) |
2 |
0.00 |
|
| 15 |
51437-NF4-761 |
RING, PISTON (se) |
4 |
0.00 |
|
| 16 |
51440-NF4-761 |
PIPE, SEAL (se) |
2 |
0.00 |
|
| 17 |
51500-NF4-761 |
FORK ASSY, LEFT FRONT (se) |
1 |
0.00 |
|
| 18 |
51521-NF4-761 |
CASE COMP, LEFT BOTTOM (se) |
1 |
0.00 |
|
| 19 |
52400-NF4-761 |
CUSHION ASSY, REAR (se) |
1 |
0.00 |
|
| 20 |
52401-NF4-761 |
SPRING A, REAR FORK (K=6.73 kg/mm) (se) |
1 |
0.00 |
|
|
52402-NF4-851 |
SPRING B, REAR FORK (K=7.30 kg/mm) (se) |
(1) |
0.00 |
|
|
52403-NF4-851 |
SPRING C, REAR FORK (K=6.35 kg/mm) (se) |
(1) |
0.00 |
|
| 21 |
52420-NF4-761 |
JOINT COMP, UPPER (se) |
1 |
0.00 |
|
| 22 |
52424-GC4-831 |
RING, STOPPER |
2 |
2.55 |
|
| 23 |
52452-GC4-831 |
BUSH,DAMPER UPPER |
2 |
13.10 |
|
| 24 |
52459-GC4-003 |
SEAT, REAR SHOCK SPRING (se) |
1 |
0.00 |
|
| 25 |
64105-NF4-000 |
RUBBER, COWLING (se) |
4 |
0.00 |
|
| 26 |
90107-NF4-003 |
BOLT, HEX., 6x8 (se) |
2 |
0.00 |
|
| 27 |
90116-383-721 |
BOLT, SOCKET (8mm) |
2 |
4.00 |
|
| 28 |
90118-471-000 |
BOLT, FLANGE (8x37) |
2 |
3.00 |
|
| 29 |
90304-GA6-003 |
NUT, AXLE (10mm) |
1 |
2.60 |
|
| 30 |
90306-NF5-003 |
NUT, LOCK (se) |
1 |
0.00 |
|
| 31 |
90543-273-000 |
PACKING, FRONT FORK DRAIN |
2 |
2.20 |
|
| 32 |
90544-283-000 |
WASHER, SPECIAL (8MM) |
2 |
2.05 |
|
| 33 |
90601-354-000 |
RING, OIL SEAL STOPPER |
2 |
4.40 |
|
| 34 |
91077-GC4-831 |
BEARING, SPHERICAL (se) |
1 |
0.00 |
|
| 35 |
91254-446-003 |
DUST SEAL, FRONT FORK |
2 |
14.80 |
|
| 36 |
91255-NC2-000 |
OIL SEAL, FRONT FORK (31x43x10.5) [USE 91255-GAA-003] |
2 |
11.90 |
|
| 37 |
91351-KB7-003 |
DUST SEAL B |
2 |
2.35 |
|
| 38 |
94608-50000 |
O-RING,23x2.8 |
2 |
0.85 |
|
| 39 |
95801-10040-00 |
BOLT, FLANGE (10x40) |
1 |
0.80 |
|
| 40 |
95801-10050-00 |
BOLT, FLANGE (10x50) |
1 |
0.85 |
|
