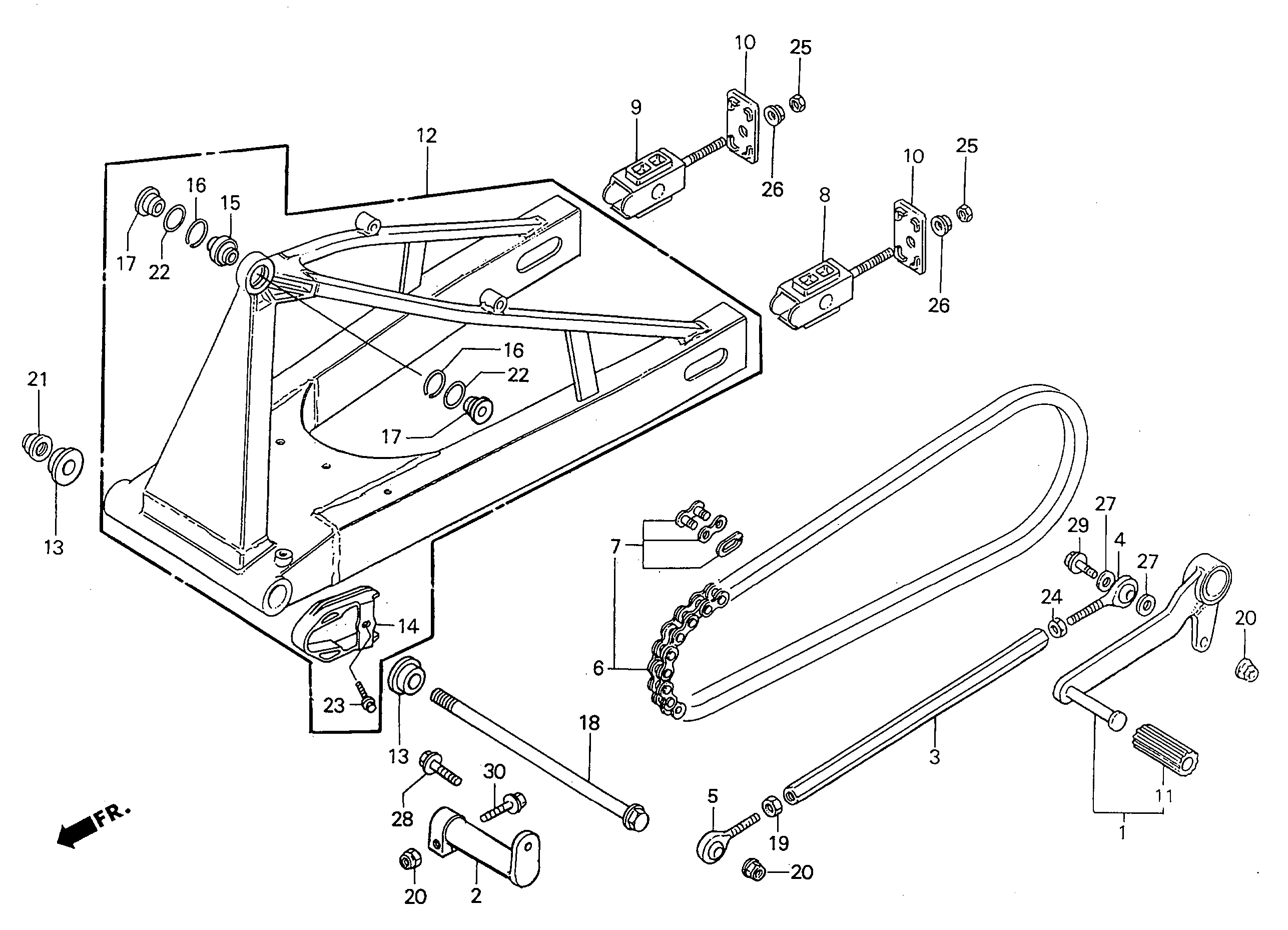

| 1 |
24700-NF4-770 |
PEDAL COMP, GEAR CHANGE (se) [USE 24700-NF4-780] |
(1) |
149.15 |
|
|
24700-NF4-780 |
PEDAL COMP, GEAR CHANGE |
1 |
149.15 |
|
| 2 |
24702-NF4-770 |
ARM, GEAR CHANGE (se) |
1 |
0.00 |
|
| 3 |
24706-NF4-760 |
ROD, GEAR CHANGE (L=230) (se) |
1 |
0.00 |
|
| 4 |
24711-NC8-000 |
ROD END, A (6mm RIGHT THREAD) [USE 24711-NX4-710] |
1 |
17.40 |
|
| 5 |
24712-NC8-000 |
ROD END, B (6mm LEFT THREAD) [USE 24712-NX4-710] |
1 |
16.90 |
|
| 6 |
40532-NF4-611 |
CHAIN, DRIVE (RK415HRX112) (se) [USE GB415HRU-120] |
(1) |
92.00 |
|
|
40533-NF4-611 |
CHAIN, DRIVE (RK415HRX114) (se) [USE GB415HRU-120] |
(1) |
92.00 |
|
|
40534-NF4-611 |
CHAIN, DRIVE (RK415HRX116) (se) [USE GB415HRU-120] |
(1) |
92.00 |
|
|
40530-NF4-611 |
CHAIN, DRIVE (RK415HRx118RJ) (se) [USE GB415HRU-120] |
1 |
92.00 |
|
|
40530-NF4-632 |
CHAIN, DRIVE (DID415EPX118RJ) (se) [USE 415ERZ-120] |
(1) |
75.25 |
|
|
40535-NF4-611 |
CHAIN, DRIVE (RK415HRx120) (se) [USE GB415HRU-120] |
(1) |
92.00 |
|
|
40535-NF4-632 |
CHAIN, DRIVE (DID415ERx120) (se) [USE 415ERZ-120] |
(1) |
81.50 |
|
| 7 |
40531-NF4-611 |
JOINT SET,DRIVE CHAIN (se) [USE GB415HRU-ML-C] |
1 |
7.25 |
|
|
40531-NF4-632 |
JOINT SET, DRIVE CHAIN (DID415ER) (se) [USE 415ERZ-MLC] |
(1) |
3.95 |
|
| 8 |
40543-KJ1-700 |
ADJUSTER, CHAIN LEFT HAND (15mm ) |
1 |
47.85 |
|
| 9 |
40543-NF4-000 |
ADJUSTER, CHAIN RIGHT HAND (18mm) |
1 |
47.85 |
|
| 10 |
40544-KJ1-700 |
RETAINER, CHAIN ADJUSTER (se) |
2 |
0.00 |
|
| 11 |
46501-ND4-750 |
RUBBER, PEDAL |
1 |
4.90 |
|
| 12 |
52100-NF4-780 |
SWINGARM ASSY. (se) |
1 |
0.00 |
|
| 13 |
52146-NF4-000 |
COLLAR, REAR FORK PIVOT (se) |
2 |
0.00 |
|
| 14 |
52170-NF4-770 |
SLIDER, CHAIN (se) |
1 |
0.00 |
|
| 15 |
52422-NF5-952 |
BEARING, SPHERICAL (10mm) [USE 52422-NX4-862] |
1 |
30.95 |
|
| 16 |
52469-NC8-000 |
SNAP, RING (22mm) (se) |
2 |
4.25 |
|
| 17 |
52486-ND9-000 |
COLLAR,CUSH (se) |
2 |
0.00 |
|
| 18 |
90121-NF4-003 |
AXLE, REAR FORK PIVOT (se) |
1 |
88.20 |
|
| 19 |
90201-KV3-700 |
NUT B, TIE-ROD (6mm) (LH THREAD) |
1 |
1.45 |
|
| 20 |
90301-473-003 |
U-NUT (6mm) |
3 |
4.15 |
|
| 21 |
90305-MC0-003 |
NUT, U REAR AXLE (16mm) (se) |
1 |
0.00 |
|
| 22 |
91351-KB7-003 |
DUST SEAL B |
2 |
2.35 |
|
| 23 |
93404-06020-00 |
BOLT-WASHER (6x20) |
1 |
0.50 |
|
| 24 |
94001-06200-0S |
NUT, HEX (6mm) |
1 |
0.50 |
|
| 25 |
94002-08000-0S |
NUT, HEX (8mm) |
2 |
0.40 |
|
| 26 |
94050-08000 |
NUT, FLANGE (8mm) |
2 |
0.55 |
|
| 27 |
94101-06000 |
WASHER, PLAIN (6mm) |
2 |
0.40 |
|
| 28 |
95801-06022-00 |
BOLT, FLANGE (6x22) [USE 95701-06022-00] |
1 |
0.60 |
|
| 29 |
95801-06025-00 |
BOLT, FLANGE (6x25) |
1 |
0.65 |
|
| 30 |
96001-06028-00 |
BOLT, FLANGE (6x28) |
1 |
0.80 |
|
