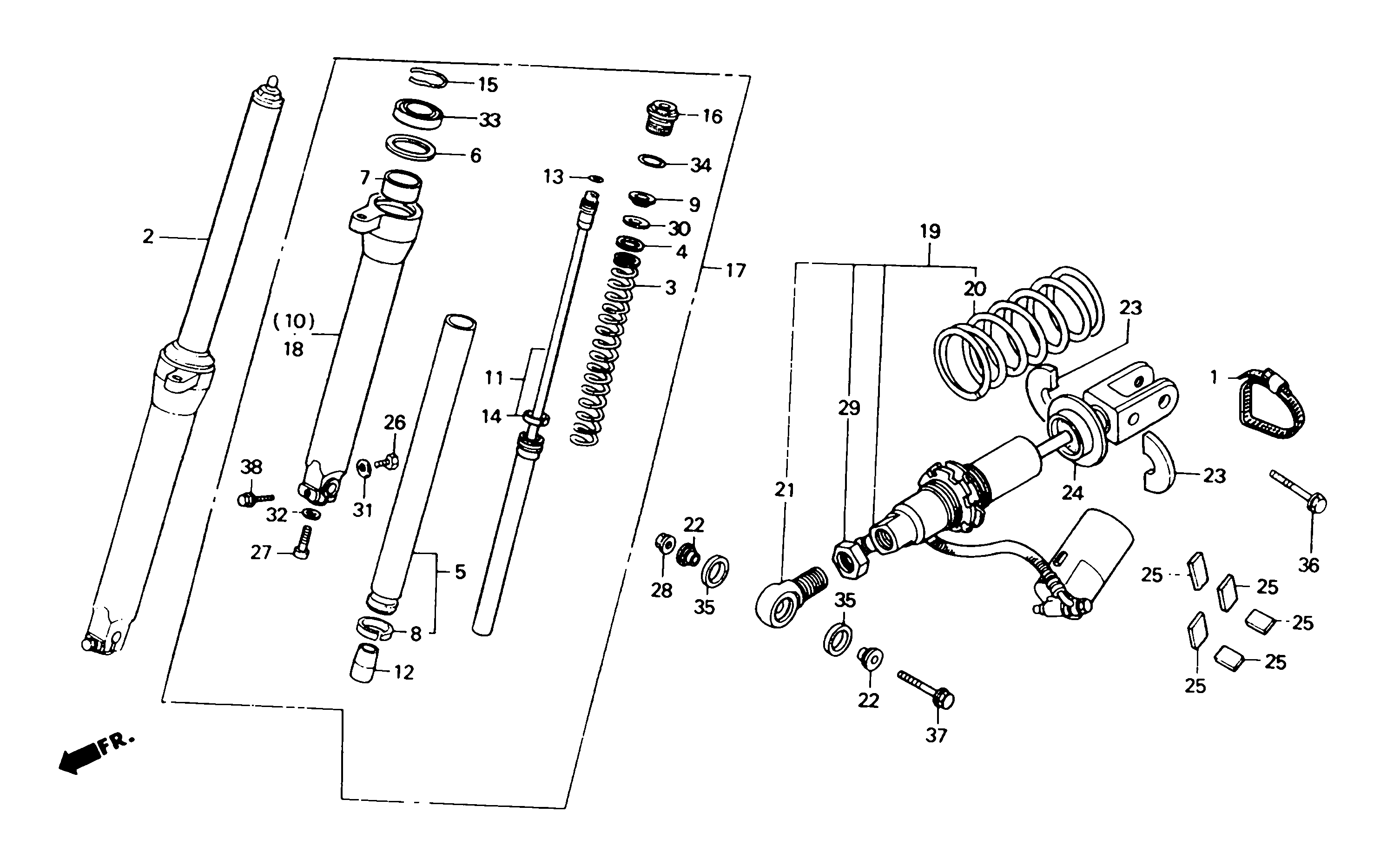

| 1 |
50252-KA4-700 |
BAND, SUB TANK (se) |
1 |
0.00 |
|
| 2 |
51400-NF4-781 |
FORK ASSY, RIGHT FRONT (se) |
1 |
0.00 |
|
| 3 |
51404-NF4-881 |
SPRING, FRONT FORK SOFT (0.60 KG/mm) (se) |
(2) |
0.00 |
|
|
51401-NF4-781 |
SPRING, FRONT FORK STD (0.65 KG/mm) (se) |
2 |
0.00 |
|
|
51403-NF4-881 |
SPRING, FRONT FORK HARD (0.70 KG/mm) (se) |
(2) |
0.00 |
|
| 4 |
51403-MA0-771 |
SEAT, SPRING |
2 |
2.00 |
|
| 5 |
51410-NF4-781 |
PIPE COMP, FRONT FORK (se) |
2 |
0.00 |
|
| 6 |
51412-422-003 |
RING, BACK UP |
2 |
5.90 |
|
| 7 |
51414-469-003 |
BUSHING, FRONT FORK GUIDE [USE 51414-MBV-711] |
2 |
10.45 |
|
| 8 |
51415-KL4-951 |
BUSH, FRONT FORK SLIDER [USE 51415-MBV-711] |
2 |
8.70 |
|
| 9 |
51415-NF4-781 |
SEAT,SPRING (se) |
2 |
0.00 |
|
| 10 |
51421-NF4-771 |
CASE COMP., R BOTTOM (se) |
1 |
0.00 |
|
| 11 |
51430-NF4-781 |
DAMPER COMP, FRONT FORK (se) |
2 |
0.00 |
|
| 12 |
51432-NF4-781 |
PIECE,OIL LOCK (se) |
2 |
0.00 |
|
| 13 |
51435-NF4-781 |
O RING (11.8x2.4) [USE 91320-MJ6-003] |
2 |
1.85 |
|
| 14 |
51437-461-003 |
RING, PISTON |
2 |
6.35 |
|
| 15 |
51447-KL4-951 |
RING, OIL SEAL STOPPER |
2 |
2.90 |
|
| 16 |
51455-NF4-781 |
BOLT, FRONT FORK (se) |
2 |
0.00 |
|
| 17 |
51500-NF4-781 |
FORK ASSY, LEFT FRONT (se) |
1 |
0.00 |
|
| 18 |
51521-NF4-771 |
CASE COMP. L BOTTOM (se) |
1 |
0.00 |
|
| 19 |
52400-NF4-611 |
SHOCK ABSORBER, REAR (se) |
1 |
0.00 |
|
| 20 |
52403-NF4-881 |
SPRING, REAR CUSHION SOFT (6.0 KG/mm) (se) |
(1) |
0.00 |
|
|
52401-NF4-781 |
SPRING, REAR CUSHION STD (6.4 KG/mm) (se) |
1 |
0.00 |
|
|
52402-NF4-881 |
SPRING, REAR CUSHION HARD (6.8 KG/mm) (se) |
(1) |
0.00 |
|
| 21 |
52420-NF4-781 |
JOINT COMP., SHOCK UPPER (se) |
1 |
0.00 |
|
| 22 |
52452-GC4-831 |
BUSH,DAMPER UPPER |
2 |
13.10 |
|
| 23 |
52455-NF4-781 |
STOPPER, SPRING SEAT |
2 |
7.50 |
|
| 24 |
52459-NF4-781 |
SEAT, REAR DAMPER SPRING (se) |
1 |
0.00 |
|
| 25 |
64105-NF4-000 |
RUBBER, COWLING (se) |
5 |
0.00 |
|
| 26 |
90107-NF4-003 |
BOLT, HEX., 6x8 (se) |
2 |
0.00 |
|
| 27 |
90116-383-721 |
BOLT, SOCKET (8mm) |
2 |
4.00 |
|
| 28 |
90304-GA6-003 |
NUT, AXLE (10mm) |
1 |
2.60 |
|
| 29 |
90306-NF5-003 |
NUT, LOCK (se) |
1 |
0.00 |
|
| 30 |
90404-NF4-881 |
WASHER, PRE-LOAD (1.6mm) (se) |
N |
0.00 |
|
| 31 |
90543-273-000 |
PACKING, FRONT FORK DRAIN |
2 |
2.20 |
|
| 32 |
90544-283-000 |
WASHER, SPECIAL (8MM) |
2 |
2.05 |
|
| 33 |
91255-MA6-013 |
OIL SEAL (35x48x11) [USE 91255-KBH-003] |
2 |
10.25 |
|
| 34 |
91317-381-771 |
O-RING (27.7x2.4) |
2 |
5.95 |
|
| 35 |
91351-KB7-003 |
DUST SEAL B |
2 |
2.35 |
|
| 36 |
95801-10040-00 |
BOLT, FLANGE (10x40) |
1 |
0.80 |
|
| 37 |
95801-10050-00 |
BOLT, FLANGE (10x50) |
1 |
0.85 |
|
| 38 |
96300-08040-00 |
BOLT, DR FLANGE (8x40) |
2 |
0.80 |
|
