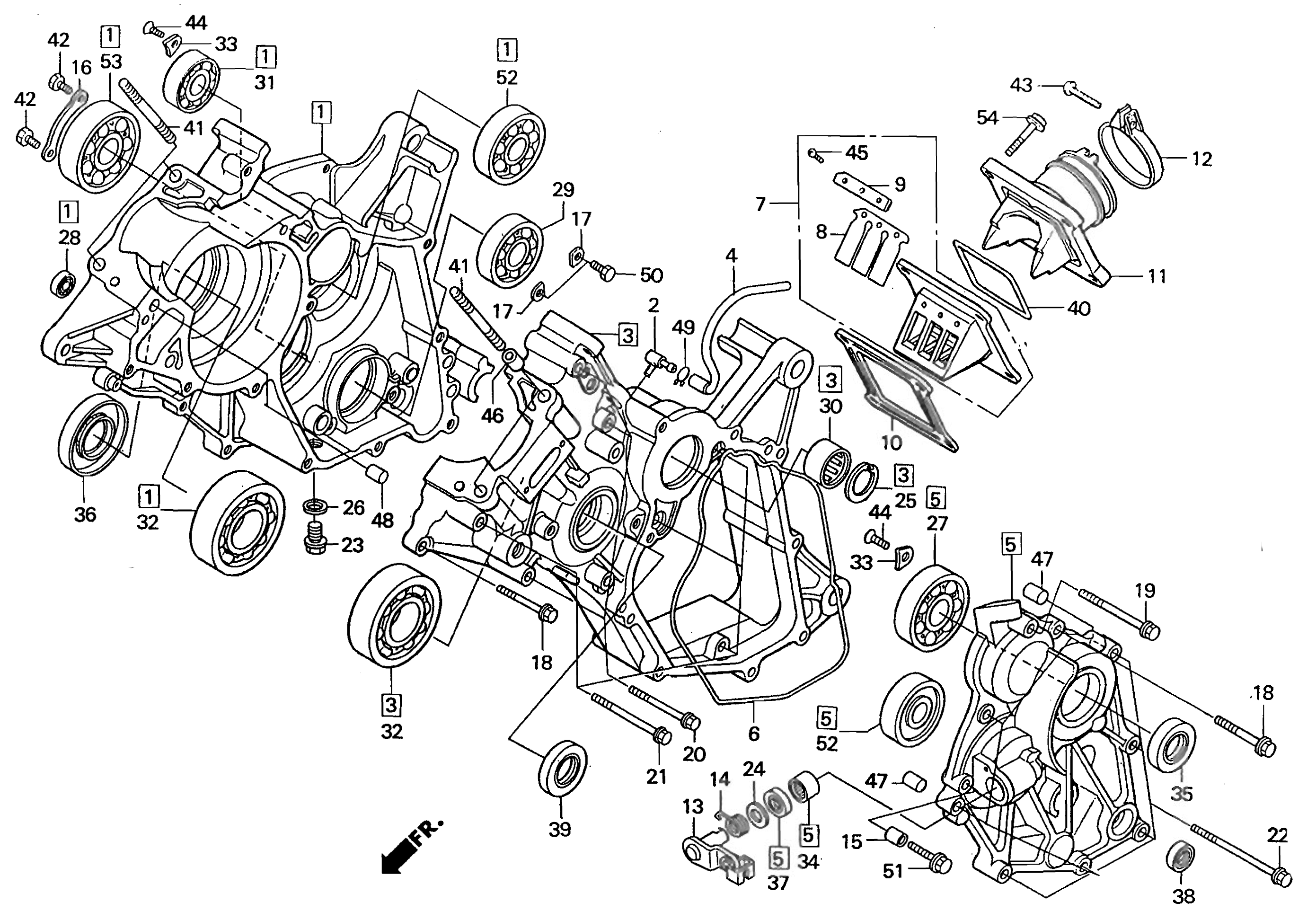

| 1 |
11100-NX4-770 |
CRANKCASE COMP, RIGHT (1996-1997) (se) |
1 |
0.00 |
|
| 2 |
11106-GM2-300 |
JOINT, BREATHER |
1 |
4.90 |
|
| 3 |
11200-NX4-770 |
CRANKCASE COMP, LEFT (1996-1997) (se) |
1 |
0.00 |
|
| 4 |
11206-NX4-770 |
TUBE, BREATHER (se) |
1 |
12.20 |
|
| 5 |
11310-NX4-000 |
COVER, LEFT CRANKCASE [USE 11310-NX4-810 AND CLUTCH CABLE 22870-NX4-810] (se) |
1 |
335.45 |
|
| 6 |
11315-NX4-000 |
O-RING, LEFT ENGINE COVER (se) [USE 11315-NX4-000R] |
1 |
28.40 |
|
| 7 |
14100-NX4-003 |
VALVE ASSY, REED [USE 14100-NX4-710] (se) |
1 |
175.35 |
|
| 8 |
14111-NX4-003 |
PEDAL, REED VALVE (se) [USE 14111-NX4-003R] |
2 |
27.85 |
|
| 9 |
14121-NX4-003 |
STOPPER, REED VALVE (se) |
2 |
13.45 |
|
| 10 |
14132-NF4-651 |
GASKET, REED VALVE (1.52T) (se) |
1 |
13.60 |
|
| 11 |
16210-NX4-000 |
INSULATOR, CARBURETOR (se) |
1 |
225.65 |
|
| 12 |
16223-KA5-690 |
BAND, CARBURETOR INSULATOR (se) |
1 |
39.80 |
|
| 13 |
22810-KS6-700 |
LIFTER COMP, CLUTCH |
1 |
57.05 |
|
| 14 |
22815-KS6-700 |
SPRING, CLUTCH ARM RETURN |
1 |
2.65 |
|
| 15 |
22819-NX4-000 |
COLLAR, CLUTCH LIFTER RETAINING (se) |
1 |
6.10 |
|
| 16 |
23521-HB6-000 |
PLATE, BEARING SET (se) |
1 |
20.85 |
|
| 17 |
23521-KW3-000 |
PLATE SET, BEARING A |
2 |
4.30 |
|
| 18 |
90004-GHB-670 |
BOLT, FLANGE (6x25) |
5 |
1.70 |
|
| 19 |
90004-GHB-720 |
BOLT, FLANGE (6x45) |
1 |
2.05 |
|
| 20 |
90004-GHB-740 |
BOLT, FLANGE NHSF (6x55) |
4 |
2.35 |
|
| 21 |
90004-GHB-760 |
BOLT, FLANGE (6x65) |
4 |
2.40 |
|
| 22 |
90004-GHB-790 |
BOLT, FLANGE NSHF (6x80) |
4 |
2.80 |
|
| 23 |
90081-NX4-700 |
BOLT, DRAIN (12x18) |
1 |
1.85 |
|
| 24 |
90401-430-000 |
WASHER, (10.2mm) |
1 |
2.05 |
|
| 25 |
90601-NX4-700 |
CIRCLIP, INTERNAL 37 |
1 |
2.70 |
|
| 26 |
90601-ZE2-000 |
WASHER, PLUG DRAIN (12mm) |
1 |
1.50 |
|
| 27 |
91001-KA3-711 |
BEARING, RADIAL BALL (6204) |
1 |
19.80 |
|
| 28 |
91002-KA4-005 |
BEARING, BALL (7x19x6) [USE 91002-KA4-003] |
1 |
10.55 |
|
| 29 |
91004-KY4-900 |
BEARING, RADIAL BALL (6905U) |
1 |
12.85 |
|
| 30 |
91005-NX4-701 |
BEARING, NEEDLE NTN (28x37x17) |
1 |
31.50 |
|
| 31 |
91005-KY4-901 |
BEARING, BALL (6302) |
1 |
17.25 |
|
| 32 |
91006-NX4-701 |
BEARING, RADIAL BALL (63/22) SPECIAL [USE 91006-KY4-903] |
2 |
16.65 |
|
| 33 |
91012-KA3-710 |
PLATE, COUNTER SHAFT BEARING |
2 |
2.80 |
|
| 34 |
91012-KS6-003 |
BEARING, NEEDLE (10x14x15) |
1 |
9.85 |
|
| 35 |
91201-KS6-004 |
OIL SEAL (26x37x7) (NOK) |
1 |
8.30 |
|
| 36 |
91201-NX4-003 |
OIL SEAL (32x48x8) |
1 |
11.30 |
|
| 37 |
91202-KA3-711 |
OIL SEAL (10x17x4) |
1 |
3.25 |
|
| 38 |
91203-KK3-830 |
OIL SEAL (14x22x5) |
1 |
2.80 |
|
| 39 |
91205-166-004 |
OIL SEAL (20x32x7) |
1 |
14.55 |
|
| 40 |
91301-KS6-003 |
O RING, SPECIAL |
1 |
4.40 |
|
| 41 |
92900-08040-3E |
BOLT, STUD (8x40) |
4 |
0.95 |
|
| 42 |
93301-06012-0A |
BOLT, HEX HEAD (6x12) |
2 |
0.45 |
|
| 43 |
93500-05028-0A |
SCREW, PAN HEAD (5x28) |
1 |
0.40 |
|
| 44 |
93600-06012-0A |
SCREW, FLAT HEAD (6x12) |
2 |
0.45 |
|
| 45 |
93892-03008-08 |
SCREW-WASHER (3x8) |
6 |
0.50 |
|
| 46 |
94301-10160 |
PIN, DOWEL (10x16) |
2 |
0.85 |
|
| 47 |
94303-06100 |
PIN, DOWEL SOLID (6x10) |
2 |
0.85 |
|
| 48 |
94303-08140 |
PIN, DOWEL SOLID (8x14) |
2 |
0.90 |
|
| 49 |
95002-02070 |
CLIP, TUBE (B7) |
1 |
0.50 |
|
| 50 |
96001-06012-00 |
BOLT, FLANGE (6x12) |
2 |
0.55 |
|
| 51 |
96001-06025-07 |
BOLT, FLANGE SH (6x25) BK |
1 |
0.65 |
|
| 52 |
96120-62030-00 |
BEARING, RADIAL BALL (6203Z) |
2 |
6.20 |
|
| 53 |
96120-62040-00 |
BEARING, RADIAL BALL (6204Z) |
1 |
7.45 |
|
| 54 |
96300-06022-00 |
BOLT, FLANGE (6x22) |
4 |
0.70 |
|
