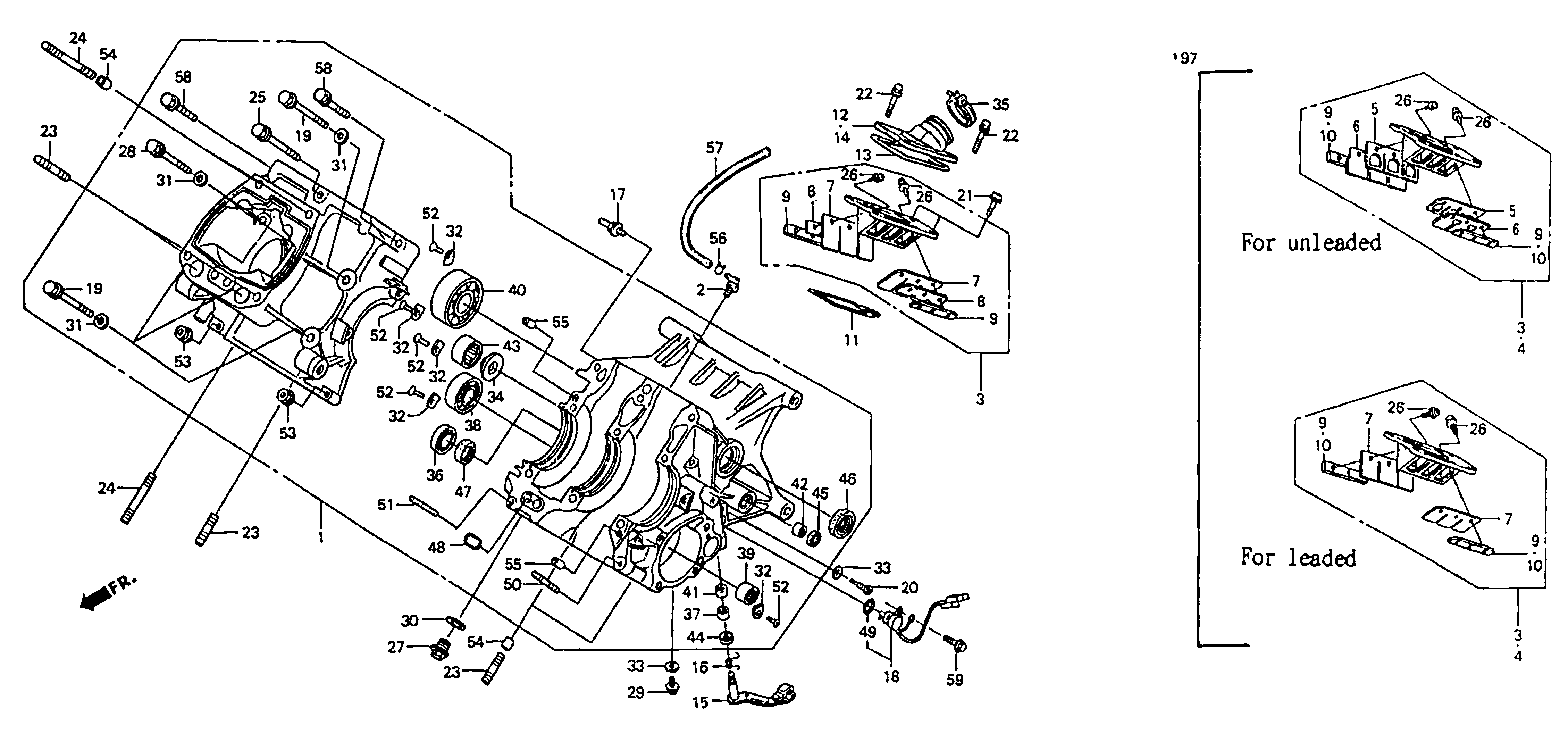

| 1 |
11000-NX6-305 |
CRANKCASE SET (se) |
1 |
0.00 |
|
| 2 |
11106-GM2-300 |
JOINT, BREATHER |
1 |
4.90 |
|
| 3 |
14100-NX6-000 |
REED VALVE ASSY FRONT (FOR UNLEADED) (se) |
1 |
0.00 |
|
|
14100-NX6-600 |
REED VALVE ASSY FRONT (FOR LEADED) (se) |
(1) |
0.00 |
|
| 4 |
14110-NX6-000 |
REED VALVE ASSY FRONT (FOR UNLEADED) (se) |
1 |
0.00 |
|
|
14110-NX6-600 |
REED VALVE ASSY FRONT (FOR LEADED) (se) |
(1) |
0.00 |
|
| 5 |
14111-NX6-000 |
REED VALVE A |
4 |
14.10 |
|
| 6 |
14112-NX6-000 |
REED VALVE B |
4 |
14.10 |
|
| 7 |
14112-NX6-600 |
REED VALVE ONLY (0.42) |
(4) |
14.10 |
|
| 8 |
14113-NX6-701 |
SUPPORTER,REED VALVE |
(4) |
11.30 |
|
| 9 |
14121-NX6-000 |
STOPPER, FRONT REED VALVE (PRINTED FR) |
2 |
25.10 |
|
| 10 |
14122-NX6-000 |
STOPPER, FRONT REED VALVE (PRINTED "RR") |
2 |
25.10 |
|
| 11 |
14131-NX6-000 |
GASKET,REED VALVE |
2 |
117.60 |
|
| 12 |
16210-NX6-000 |
INSULATOR, CARBURETOR FRONT |
1 |
161.85 |
|
| 13 |
16219-NX6-000 |
GASKET,CARB INSULATOR |
2 |
15.50 |
|
| 14 |
16220-NX6-000 |
INSULATOR, CARBURETOR REAR |
1 |
161.85 |
|
| 15 |
22810-NX6-000 |
LEVER COMP,CLUTCH |
1 |
183.00 |
|
| 16 |
22815-NX6-000 |
SPG,CLUTCH LEVER |
1 |
14.80 |
|
| 17 |
24615-NX6-000 |
PIN,SHIFT STOPPER |
1 |
101.35 |
|
| 18 |
35750-NX6-700 |
SWITCH ASSY, GEAR POSITION (se) |
- |
0.00 |
|
| 19 |
90001-NX6-000 |
BOLT FLANGE,9X105 |
4 |
7.60 |
|
| 20 |
90002-NX6-000 |
BOLT,SPECIAL 6MM |
1 |
9.60 |
|
| 21 |
90001-GHB-630 |
BOLT, FLANGE NSHF (6x16) [USE 90004-GHB-630] |
4 |
1.80 |
|
| 22 |
90001-GHB-650 |
BOLT, FLANGE NHSF (6x20) [USE 90004-GHB-650] |
8 |
1.95 |
|
| 23 |
90008-NX6-000 |
BOLT,STUD 10X45 |
5 |
10.05 |
|
| 24 |
90009-NX6-000 |
BOLT,STUD 2,10X55 |
3 |
10.10 |
|
| 25 |
90014-KV3-680 |
SEAL (se) |
1 |
0.00 |
|
| 26 |
93892-03008-08 |
SCREW-WASHER (3x8) |
12 |
0.50 |
|
| 27 |
90080-NX6-000 |
BOLT COMP,DRAIN 10X13 |
1 |
53.50 |
|
| 28 |
90082-NX5-000 |
BOLT, FLANGE (9x87) (se) |
2 |
0.00 |
|
| 29 |
90134-NX5-000 |
BOLT, DRAIN (6x10) |
1 |
2.45 |
|
| 30 |
90443-MB0-000 |
WASHER, SEALING (10MM) |
1 |
2.00 |
|
| 31 |
90445-MM4-000 |
WASHER, 9mm |
6 |
2.30 |
|
| 32 |
90471-NX6-000 |
STOPPER,BRG 10 |
5 |
7.85 |
|
| 33 |
90543-273-000 |
PACKING, FRONT FORK DRAIN |
2 |
2.20 |
|
| 34 |
90558-MJ0-000 |
PLATE, ORIFICE |
1 |
4.05 |
|
| 35 |
95018-52250 |
BAND 52, AIR/C CONNECTING TUBE |
2 |
3.15 |
|
| 36 |
91001-GBT-003 |
BEARING, NEEDLE (12x18x12) (se) |
1 |
0.00 |
|
| 37 |
91002-HA2-003 |
NEEDLE, SHELL (10x17x10) (se) |
1 |
0.00 |
|
| 38 |
91004-NX6-003 |
BRG.BALL RADIAL 6004SPL [USE 91004-NX6-701] |
1 |
33.80 |
|
| 39 |
91008-NX6-003 |
BRG,NEEDLE,24X36X14 |
1 |
33.80 |
|
| 40 |
91012-NX6-003 |
BRG,BALL,62/28 |
1 |
33.80 |
|
| 41 |
91021-148-004 |
BEARING, NEEDLE 1010 |
1 |
10.10 |
|
| 42 |
91023-NX6-003 |
BEARING, NEEDLE (15x21x10) |
1 |
33.80 |
|
| 43 |
91024-NX6-003 |
NEEDLE BEARING,20X34X18 |
1 |
33.80 |
|
| 44 |
91201-VA4-801 |
OIL SEAL (10x20x5) |
1 |
2.35 |
|
| 45 |
91204-GK8-003 |
OIL SEAL (15x24x5) |
1 |
3.55 |
|
| 46 |
91204-NX6-000 |
OIL SEAL,36X46X6 |
1 |
40.85 |
|
| 47 |
91210-723-751 |
OIL SEAL (12x21x5) |
1 |
2.70 |
|
| 48 |
91303-NX6-000 |
O-RING,26X1.6 |
1 |
8.75 |
|
| 49 |
91305-KK4-003 |
O-RING (16.5x2.5 ARAI) |
- |
2.15 |
|
| 50 |
92900-06028-0B |
BOLT, STUD (2) (6x28) |
1 |
0.60 |
|
| 51 |
92900-06035-0B |
BOLT, STUD (2) (6x35) |
1 |
0.75 |
|
| 52 |
93600-06012-0A |
SCREW, FLAT HEAD (6x12) |
5 |
0.45 |
|
| 53 |
94050-06000 |
NUT, FLANGE (6mm) |
2 |
0.55 |
|
| 54 |
94301-12160 |
PIN, DOWEL (12x16) |
4 |
1.00 |
|
| 55 |
94303-08140 |
PIN, DOWEL SOLID (8x14) |
2 |
0.90 |
|
| 56 |
95002-02070 |
CLIP, TUBE (B7) |
1 |
0.50 |
|
| 57 |
95003-10030-31 |
V-TUBE (5x8x300) [USE 95003-10040-31] |
1 |
0.55 |
|
| 58 |
95701-08055-00 |
BOLT, FLANGE (8x55) |
2 |
0.85 |
|
| 59 |
96001-06012-00 |
BOLT, FLANGE (6x12) |
- |
0.55 |
|
