2008 Moriwaki MD250H - E21 Carburetor Optional Kit

2008 Moriwaki MD250H Carburetor Optional Kit Parts Manual Parts for Sale

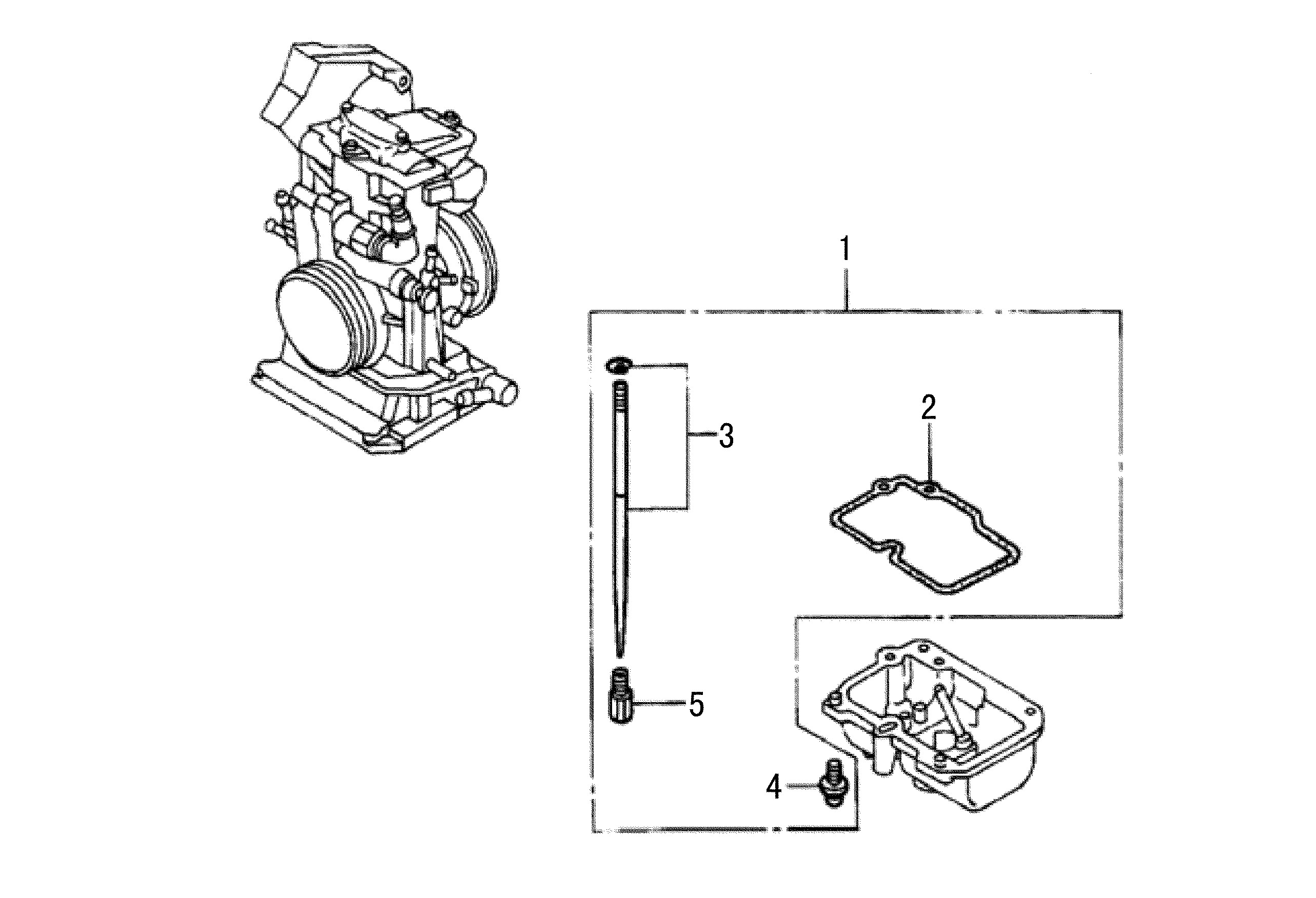

This image is the property and copyright of Moriwaki Engineering Co., Ltd.

Ref Part Number Description Qty Req Qty 1 Price Buy
1 16020-KRN-J00 PARTS KIT, CARBURETOR, O.P. 1 0.00
2 16163-MEB-671 GASKET, FLOAT CHAMBER 1 14.10
3 16201-MEN-671 NEEDLE SET, JET (NCYP) 1 0.00
16203-MEN-671 NEEDLE SET, JET (NCYR) 1 24.40
16204-MEN-671 NEEDLE SET, JET (NCYS) 1 0.00
16229-KRN-731 NEEDLE SET, JET (NCVN) 1 25.65
16230-MEN-671 NEEDLE SET, JET (NCVP) 1 0.00
16231-MEN-671 NEEDLE SET, JET (NCVQ) 1 0.00
16232-MEN-671 NEEDLE SET, JET (NCVR) 1 0.00
16233-MEN-671 NEEDLE SET, JET (NCVS) 1 0.00
4 93892-04014-08 SCREW, WASHER (4x14) 10 0.45
5 99113-GHB-1620 JET, MAIN KEIHIN (#162) 1 5.80
99113-GHB-1650 JET, MAIN KEIHIN (#165) 1 5.80
99113-GHB-1680 JET, MAIN KEIHIN (#168) 1 6.90
99101-357-1700 JET, MAIN KEIHIN (#170) 1 5.85
99101-357-1750 JET, MAIN KEIHIN (#175) 1 6.90
99113-GHB-1780 JET, MAIN KEIHIN (#178) 1 6.90
99113-GHB-1800 JET, MAIN KEIHIN (#180) 1 6.90
99113-GHB-1820 JET, MAIN KEIHIN (#182) 1 6.90
