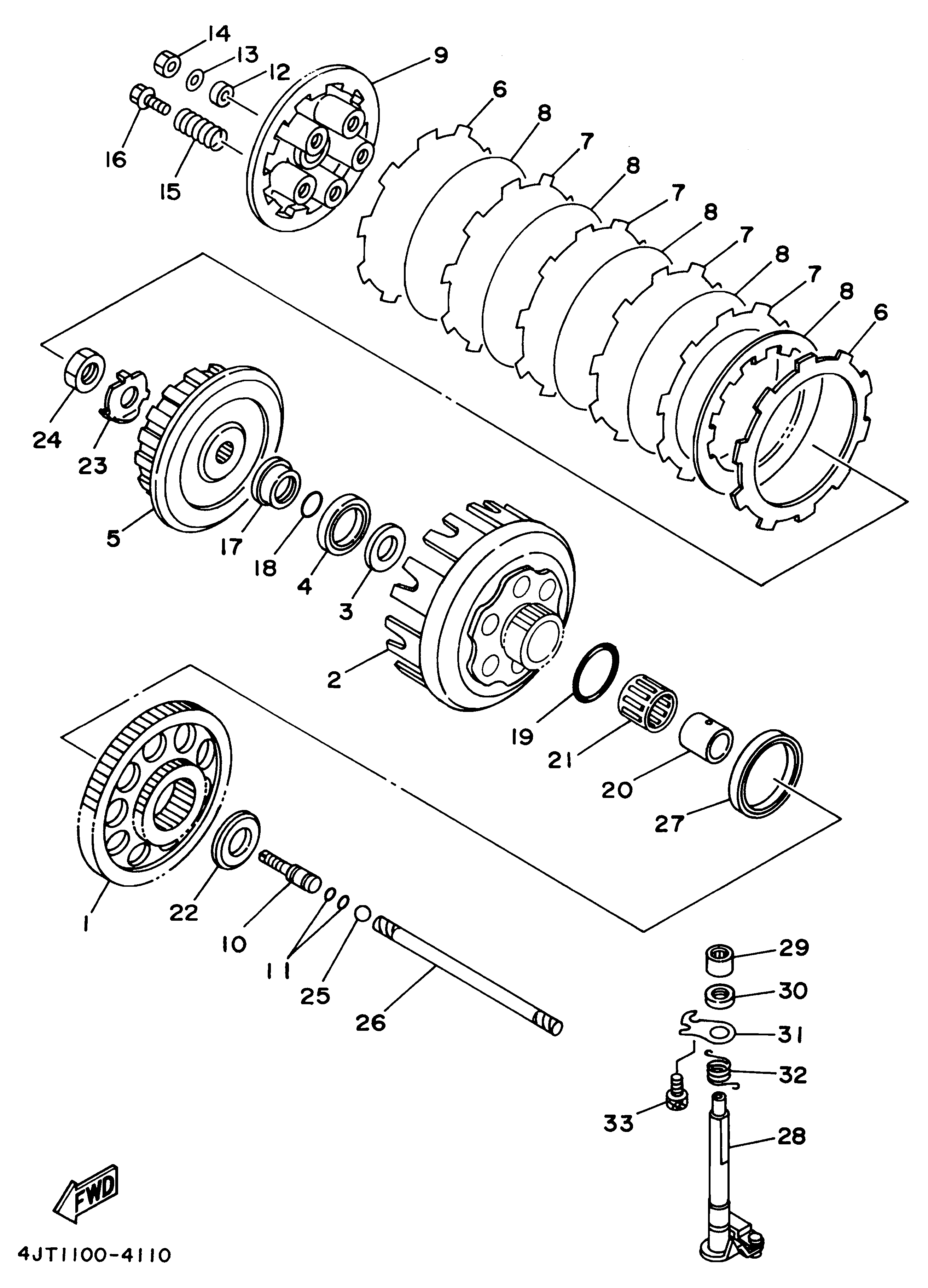

| 1 |
4JT-16151-01 |
GEAR, PRIMARY DRIVEN (se) |
1 |
0.00 |
|
| 2 |
4JT-16310-00 |
CLUTCH HOUSING ASSY (se) |
1 |
0.00 |
|
| 3 |
90201-174E1 |
WASHER, PLATE (4V2) |
1 |
10.70 |
|
| 4 |
93102-26042 |
OIL SEAL, SD-TYPE (26x38x5) |
1 |
5.60 |
|
| 5 |
4JT-16371-00 |
BOSS, CLUTCH |
1 |
103.45 |
|
| 6 |
4JT-16321-00 |
PLATE, CLUTCH FRICTION |
2 |
35.20 |
|
| 7 |
4JT-16331-00 |
PLATE, FRICTION 2 |
4 |
47.50 |
|
| 8 |
257-16324-00 |
PLATE, CLUTCH STEEL |
5 |
15.00 |
|
| 9 |
37F-16351-00 |
PLATE, PRESSURE 1 |
1 |
69.20 |
|
| 10 |
4JT-16356-00 |
ROD, PUSH 1 (se) |
1 |
98.80 |
|
| 11 |
93210-48364 |
O-RING (2H7) |
2 |
1.90 |
|
| 12 |
1W1-16358-01 |
PLATE, PUSH |
1 |
12.65 |
|
| 13 |
92907-06200 |
WASHER |
1 |
1.30 |
|
| 14 |
95317-06600 |
NUT |
1 |
1.50 |
|
| 15 |
90501-20361 |
SPRING, COMPRESSION |
5 |
4.15 |
|
| 16 |
90119-05001 |
BOLT, WITH WASHER (353) |
5 |
2.20 |
|
| 17 |
4JT-16184-00 |
PLATE, THRUST (se) |
1 |
0.00 |
|
| 18 |
93210-16314 |
O-RING (1J7) |
1 |
1.60 |
|
| 19 |
93210-34633 |
O-RING (21A) |
1 |
9.35 |
|
| 20 |
4JT-16181-00 |
SPACER 1 |
1 |
50.35 |
|
| 21 |
93310-225N0 |
BEARING (51Y) |
1 |
24.50 |
|
| 22 |
4JT-16154-00 |
PLATE ,THRUST 1 (se) |
1 |
0.00 |
|
| 23 |
90215-14204 |
WASHER, LOCK (2K6) |
1 |
3.85 |
|
| 24 |
90170-14171 |
NUT |
1 |
4.10 |
|
| 25 |
93505-16006 |
BALL |
1 |
1.90 |
|
| 26 |
5H0-16357-00 |
ROD, BUSH 2 |
1 |
30.95 |
|
| 27 |
93101-45091 |
OIL SEAL, S-TYPE (3V3) (se) |
1 |
15.35 |
|
| 28 |
4JT-16380-00 |
PUSH LEVER ASSY (se) |
1 |
0.00 |
|
| 29 |
93315-11206 |
BEARING |
1 |
12.65 |
|
| 30 |
93102-12224 |
SEAL, OIL (4G0) |
1 |
7.75 |
|
| 31 |
4JT-16384-00 |
PLATE, SEAT |
1 |
2.50 |
|
| 32 |
90508-145A5 |
SPRING, TORSION (4JT) |
1 |
14.35 |
|
| 33 |
91317-06010 |
BOLT, SOCKET HEAD (6x10) |
1 |
0.95 |
|
