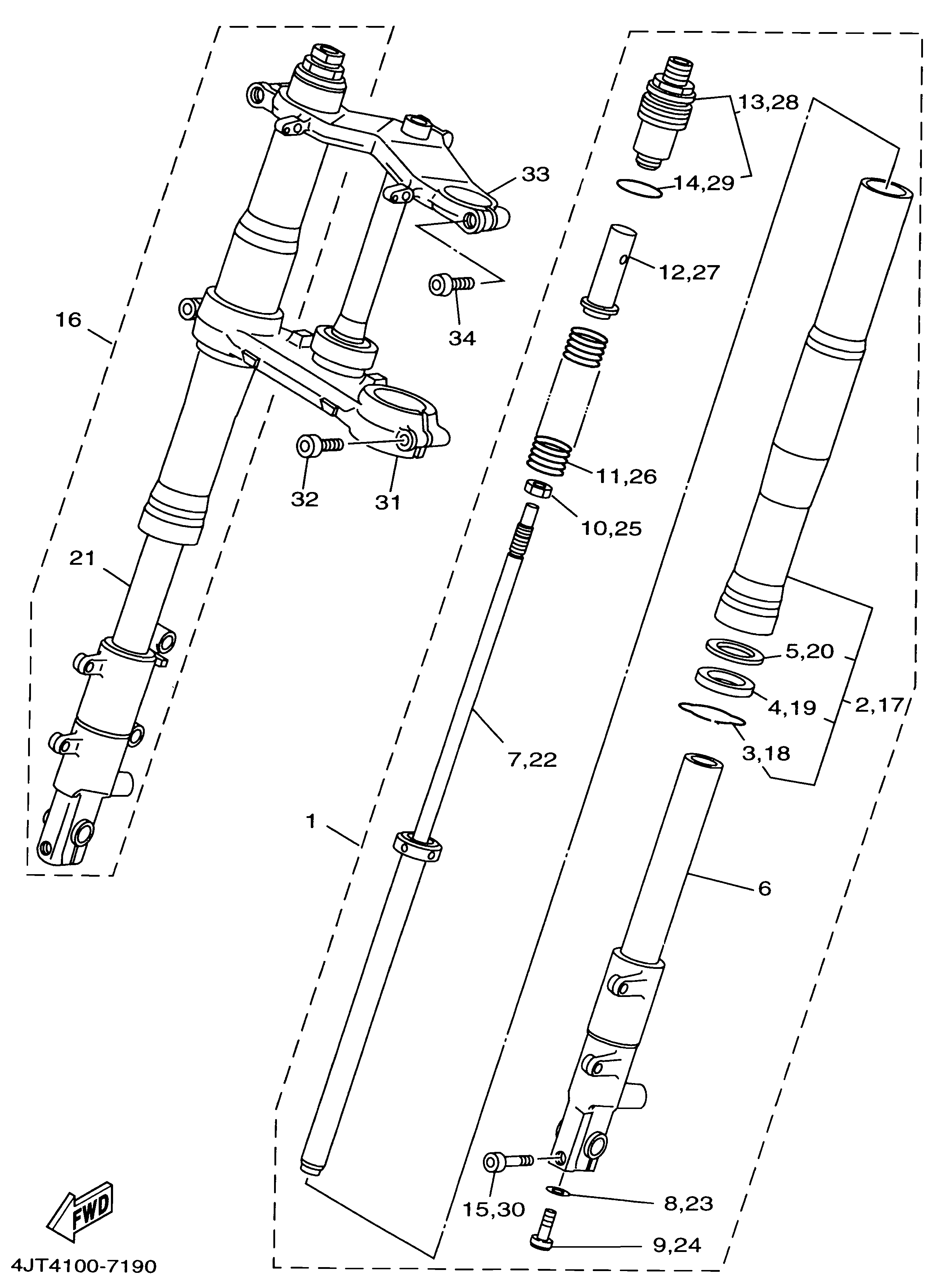

| 1 |
4JT-23102-30 |
FRONT FORK ASSY (LEFT HAND) (se) |
1 |
0.00 |
|
| 2 |
4JT-23136-30 |
TUBE, OUTER (RIGHT) (se) |
1 |
0.00 |
|
| 3 |
4A1-23156-00 |
CLIP, FRONT FORK OIL SEAL |
1 |
4.15 |
|
| 4 |
4ES-23145-00 |
OIL SEAL, FRONT FORK |
1 |
14.95 |
|
| 5 |
5K5-23149-00 |
WASHER, BACKING FRONT FORK SEAL |
1 |
6.45 |
|
| 6 |
4JT-23110-00 |
INNER TUBE COMP. 1 (LEFT) (se) |
1 |
0.00 |
|
| 7 |
4JT-23170-30 |
CYLINDER COMP., FRONT FORK (se) |
1 |
0.00 |
|
| 8 |
2K8-23158-L0 |
GASKET |
1 |
10.90 |
|
| 9 |
3LC-23181-00 |
BOLT, HEXAGON SOCKET HEAD |
1 |
10.40 |
|
| 10 |
4JT-23357-20 |
NUT (se) |
1 |
0.00 |
|
| 11 |
4JT-23141-10 |
SPRING, FRONT FORK |
1 |
39.30 |
|
| 12 |
4JT-23118-20 |
SPACER, FORK SPRING (se) |
1 |
0.00 |
|
| 13 |
4JT-23111-20 |
BOLT, FRONT FORK CAP (se) |
1 |
0.00 |
|
| 14 |
4V4-23188-L0 |
O-RING |
1 |
8.10 |
|
| 15 |
1WG-23128-00 |
BOLT, AXLE HOLDER |
1 |
3.00 |
|
| 16 |
4JT-23103-30 |
FRONT FORK ASSY (RIGHT HAND) (se) |
1 |
0.00 |
|
| 17 |
4JT-23136-30 |
TUBE, OUTER (RIGHT) (se) |
1 |
0.00 |
|
| 18 |
4A1-23156-00 |
CLIP, FRONT FORK OIL SEAL |
1 |
4.15 |
|
| 19 |
4ES-23145-00 |
OIL SEAL, FRONT FORK |
1 |
14.95 |
|
| 20 |
5K5-23149-00 |
WASHER, BACKING FRONT FORK SEAL |
1 |
6.45 |
|
| 21 |
4JT-23120-30 |
INNER TUBE COMP. 2 (R) (se) |
1 |
0.00 |
|
| 22 |
4JT-23170-30 |
CYLINDER COMP., FRONT FORK (se) |
1 |
0.00 |
|
| 23 |
2K8-23158-L0 |
GASKET |
1 |
10.90 |
|
| 24 |
3LC-23181-00 |
BOLT, HEXAGON SOCKET HEAD |
1 |
10.40 |
|
| 25 |
4JT-23357-20 |
NUT (se) |
1 |
0.00 |
|
| 26 |
4JT-23141-10 |
SPRING, FRONT FORK |
1 |
39.30 |
|
| 27 |
4JT-23118-20 |
SPACER, FORK SPRING (se) |
1 |
0.00 |
|
| 28 |
4JT-23111-20 |
BOLT, FRONT FORK CAP (se) |
1 |
0.00 |
|
| 29 |
4V4-23188-L0 |
O-RING |
1 |
8.10 |
|
| 30 |
1WG-23128-00 |
BOLT, AXLE HOLDER |
1 |
3.00 |
|
| 31 |
4JT-23340-30 |
UNDER BRACKET COMP. (se) |
1 |
0.00 |
|
| 32 |
91311-10030 |
BOLT, HEXAGON SOCKET HEAD [USE 91316-10030] |
2 |
3.95 |
|
| 33 |
4JT-23435-30 |
CROWN, HANDLE |
1 |
480.15 |
|
| 34 |
91311-08030 |
BOLT, SOCKET HEAD (8x30) (4H7) |
2 |
0.95 |
|
