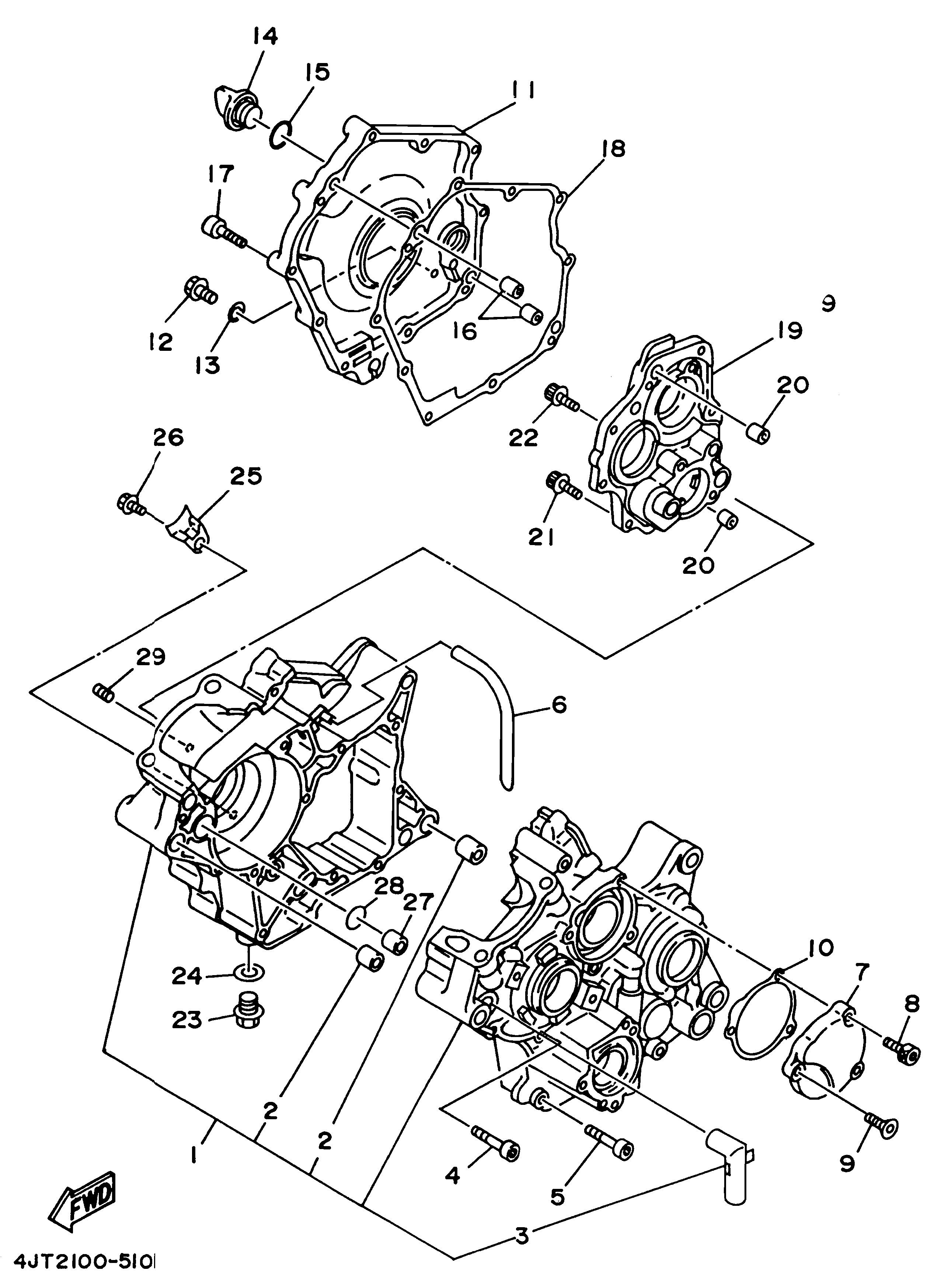

| 1 |
4JT-15100-10 |
CRANKCASE ASSY (se) |
1 |
0.00 |
|
| 2 |
99590-14016 |
PIN, DOWEL (4JT) |
2 |
2.35 |
|
| 3 |
4JT-12469-01 |
JOINT 1 (se) |
1 |
0.00 |
|
| 4 |
91317-06060 |
BOLT, SOCKET HEAD (6x60) |
9 |
1.30 |
|
| 5 |
91317-06045 |
BOLT, SOCKET HEAD (6x45) |
4 |
1.30 |
|
| 6 |
90445-092J9 |
HOSE (L230) [USE 90445-090G9] |
1 |
14.80 |
|
| 7 |
4JT-15411-00 |
COVER, CRANKCASE 1 (se) |
1 |
0.00 |
|
| 8 |
90110-06136 |
BOLT, HEXAGON SOCKET HEAD [USE 91317-06020] |
2 |
1.10 |
|
| 9 |
90149-06286 |
SCREW |
1 |
2.15 |
|
| 10 |
4JT-15451-10 |
GASKET, CRANKCASE COVER 1 (se) |
1 |
19.90 |
|
| 11 |
4JT-15421-02 |
COVER, CRANKCASE R.H. |
1 |
465.35 |
|
| 12 |
90338-06041 |
PLUG |
1 |
8.75 |
|
| 13 |
90430-06166 |
GASKET, COPPER (4V2) |
1 |
1.20 |
|
| 14 |
4A0-15363-00 |
PLUG, OIL |
1 |
19.45 |
|
| 15 |
93210-21190 |
O-RING |
1 |
1.50 |
|
| 16 |
99530-10114 |
PIN, DOWEL (10x14) |
2 |
2.20 |
|
| 17 |
91317-06030 |
BOLT, SOCKET HEAD (6x30) (4MY) [USE 90110-06138] |
10 |
2.00 |
|
| 18 |
4JT-15461-00 |
GASKET, CRANKCASE COVER 2 |
1 |
21.00 |
|
| 19 |
4JT-15131-01 |
COVER, CRANKCASE 3 (TRANSMISSION) (se) |
1 |
0.00 |
|
| 20 |
99530-10114 |
PIN, DOWEL (10x14) |
2 |
2.20 |
|
| 21 |
90109-065F8 |
BOLT, TRANSMISSION CASSETTE |
5 |
2.50 |
|
| 22 |
90109-067E6 |
BOLT |
2 |
1.85 |
|
| 23 |
90340-12144 |
PLUG, STRAIGHT SCREW |
1 |
0.00 |
|
| 24 |
90430-12202 |
GASKET, COPPER |
1 |
1.20 |
|
| 25 |
3R3-15128-01 |
HOLDER |
1 |
7.90 |
|
| 26 |
90105-08729 |
BOLT, WASHER BASED |
1 |
4.30 |
|
| 27 |
99590-14016 |
PIN, DOWEL (4JT) |
3 |
2.35 |
|
| 28 |
93210-14515 |
O-RING (11H) |
1 |
2.45 |
|
| 29 |
90113-08056 |
BOLT, SET (4JT) |
1 |
2.80 |
|
