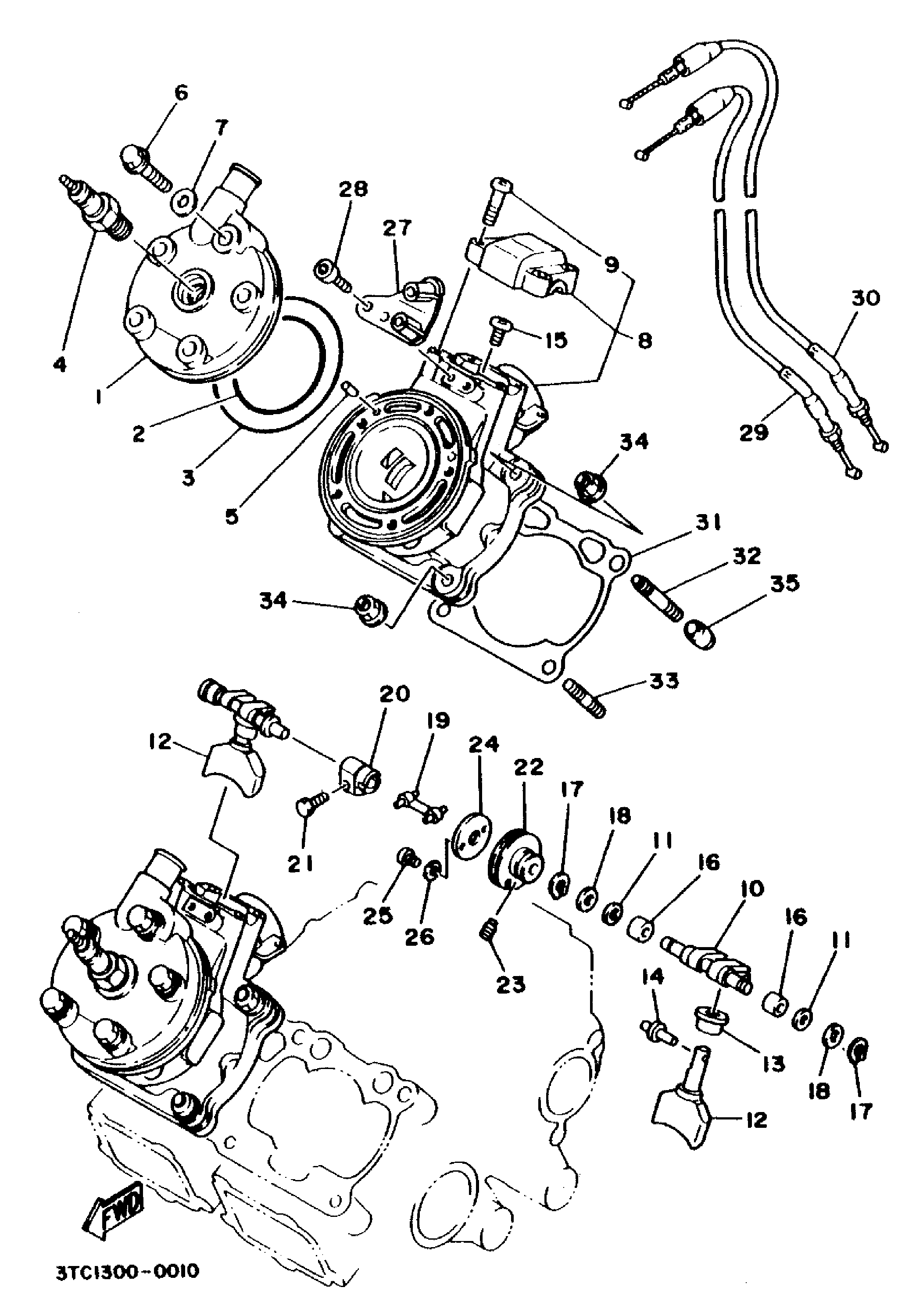

| 1 |
3TC-11111-00 |
HEAD, CYLINDER 1 (se) |
2 |
0.00 |
|
| 2 |
93210-63442 |
O-RING, CYLINDER HEAD INNER (4U8) |
2 |
6.50 |
|
| 3 |
93210-97690 |
O_RING (50M) |
2 |
6.25 |
|
| 4 |
R7282-10 |
NGK SPARK PLUG, Heat Range 10, 14mm X 19mm, Fine Wire Iridium Center and Platinum Tipped Angled Ground Electrode, 0.61mm Gap, 16mm Hex Size, Gasket Seat, Resistor, Solid Terminal Nut, Short Plug (Requires TRS-1225 Cap) [Replaces R6120-10] |
(2) |
41.80 |
|
|
R7282-105 |
NGK SPARK PLUG, Heat Range 10.5, 14mm X 19mm, Fine Wire Iridium Center and Platinum Tipped Angled Ground Electrode, 0.61mm Gap, 16mm Hex Size, Gasket Seat, Resistor, Solid Terminal Nut, Short Plug (Requires TRS-1225 Cap) [Replaces R6120-105] |
2 |
53.40 |
|
|
R7282-11 |
NGK SPARK PLUG, Heat Range 11, 14mm X 19mm, Fine Wire Iridium Center and Platinum Tipped Angled Ground Electrode, 0.61mm Gap, 16mm Hex Size, Gasket Seat, Resistor, Solid Terminal Nut, Short Plug (Requires TRS-1225 Cap) [Replaces R6120-11] |
(2) |
68.59 |
|
| 5 |
93604-08071 |
PIN, DOWEL (4x8) (278) |
4 |
3.70 |
|
| 6 |
91011-08045 |
BOLT, FLANGE (55K) |
10 |
3.00 |
|
| 7 |
90201-08087 |
WASHER, PLATE |
10 |
1.00 |
|
| 8 |
3TC-11310-00 |
CYLINDER (se) |
2 |
0.00 |
|
| 9 |
98901-05020 |
SCREW, BIND (59W) (se) |
4 |
0.00 |
|
| 10 |
3LC-1131V-00 |
SHAFT 1 |
2 |
198.95 |
|
| 11 |
93104-08040 |
OIL SEAL (8X12X3) |
4 |
6.25 |
|
| 12 |
3TC-1131A-00 |
VALVE, 1 EXHAUST (se) |
2 |
0.00 |
|
| 13 |
1RK-1131E-00 |
HOLDER 1 (se) |
2 |
0.00 |
|
| 14 |
90249-04189 |
PIN (59W) (se) |
2 |
0.00 |
|
| 15 |
98903-05010 |
SCREW, BIND |
2 |
1.20 |
|
| 16 |
90380-08192 |
BUSH, SOLID POWER VALVE |
4 |
28.95 |
|
| 17 |
93440-08130 |
CIRCLIP, POWER VALVE SHAFT (22K) |
4 |
1.70 |
|
| 18 |
90201-08085 |
WASHER, PLATE |
4 |
1.60 |
|
| 19 |
1RK-1131H-00 |
JOINT 1 (se) |
1 |
0.00 |
|
| 20 |
59W-1131J-01 |
JOINT 2 (se) |
1 |
0.00 |
|
| 21 |
91316-05016 |
BOLT (5Y9) |
1 |
1.45 |
|
| 22 |
1RK-1132E-00 |
PULLEY 1 (se) |
1 |
0.00 |
|
| 23 |
90149-05149 |
SCREW (se) |
1 |
0.00 |
|
| 24 |
59W-1131F-00 |
HOLDER 2 (se) |
1 |
0.00 |
|
| 25 |
98580-03006 |
SCREW PAN HEAD (78G) |
2 |
1.85 |
|
| 26 |
92990-03100 |
WASHER, SPRING |
2 |
1.00 |
|
| 27 |
1RK-11932-00 |
SETTER, POWER VALVE CABLES (se) |
1 |
0.00 |
|
| 28 |
91316-05010 |
BOLTS, YPVS TZ 250 (409) |
2 |
1.00 |
|
| 29 |
1RK-1133E-00 |
CABLE, PULLEY 1 (se) |
1 |
0.00 |
|
| 30 |
1RK-1133E-00 |
CABLE, PULLEY 1 (se) |
1 |
0.00 |
|
| 31 |
3TC-11351-30 |
GASKET, CYLINDER BASE (T=0.5) |
(2) |
19.90 |
|
|
3TC-11351-20 |
GASKET, CYLINDER BASE (T=0.6) (se) |
(2) |
0.00 |
|
|
3TC-11351-10 |
GASKET, CYLINDER BASE (T=0.7) (se) |
(2) |
0.00 |
|
|
3TC-11351-00 |
GASKET, CYLINDER BASE (T=0.8) (se) |
2 |
0.00 |
|
| 32 |
90116-08388 |
BOLT, STUD |
4 |
6.60 |
|
| 33 |
90116-08533 |
BOLT, STUD (se) |
4 |
0.00 |
|
| 34 |
95704-08500 |
NUT, FLANGE (38W) |
8 |
0.95 |
|
| 35 |
99530-10114 |
PIN, DOWEL (10x14) |
4 |
2.20 |
|
