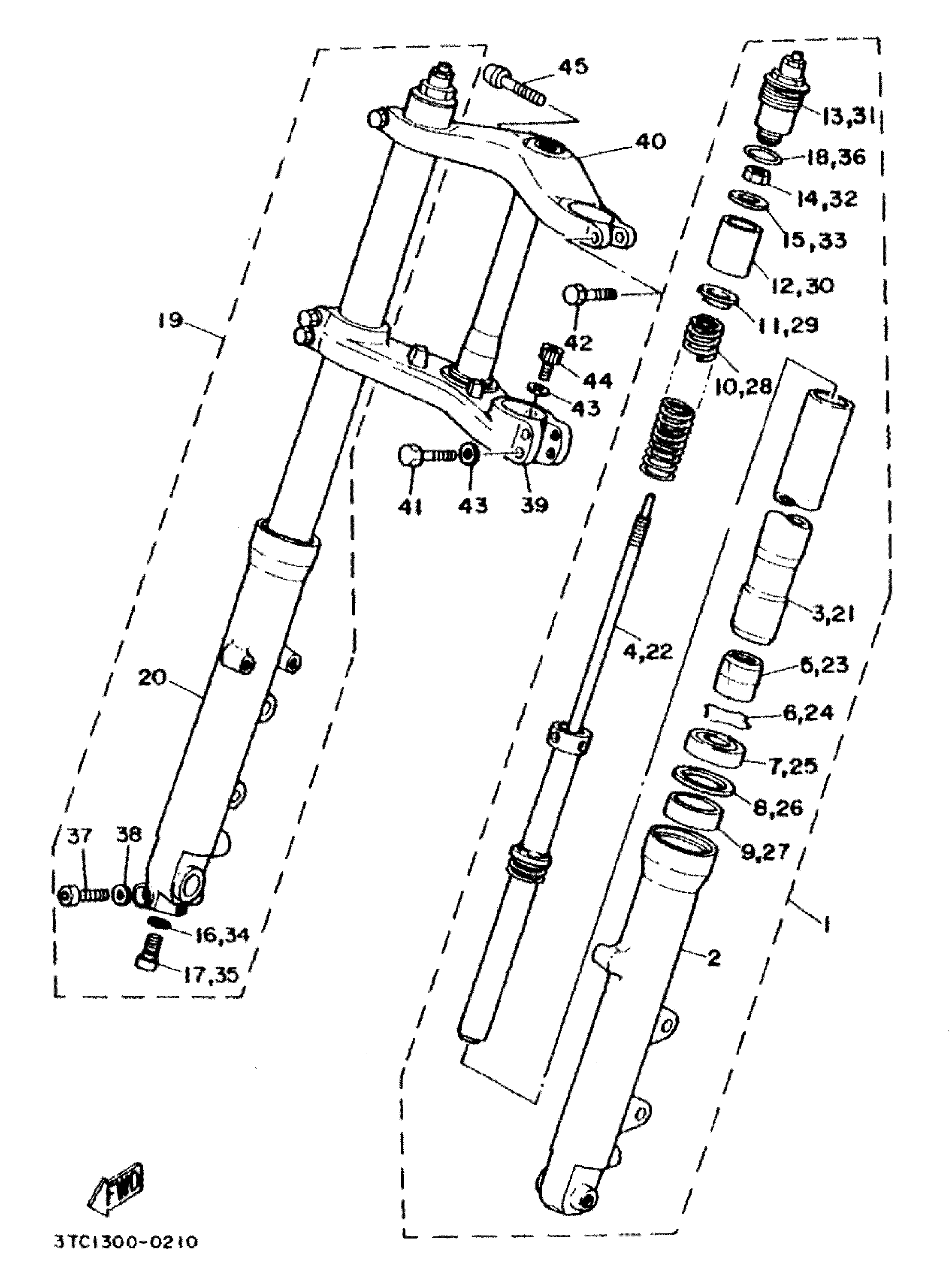

| 1 |
3TC-23102-00 |
FRONT FORK ASSY (LEFT) (se) |
1 |
0.00 |
|
| 2 |
3TC-23126-00 |
TUBE COMP, FRONT FORK OUTTER 1 (se) |
1 |
0.00 |
|
| 3 |
3TC-23110-00 |
TUBE COMP, FRONT FORK INNER 1 (se) |
1 |
0.00 |
|
| 4 |
3TC-23170-00 |
CYLINDER COMP, FRONT FORK (se) |
1 |
0.00 |
|
| 5 |
3TC-23173-00 |
SPINDLE, TAPER (se) |
1 |
0.00 |
|
| 6 |
26H-23156-00 |
CLIP, OIL SEAL |
1 |
3.60 |
|
| 7 |
3SP-23145-L0 |
OIL SEAL, FRONT FORK (TZ250) |
1 |
27.15 |
|
| 8 |
36Y-23146-10 |
WASHER, OIL SEAL |
1 |
6.80 |
|
| 9 |
3JD-23125-L0 |
METAL, SLIDE 1 |
1 |
20.60 |
|
| 10 |
3TC-23141-00 |
SPRING, FRONT FORK (se) |
1 |
0.00 |
|
| 11 |
43F-23142-10 |
SEAT, FORK SPRING UPPER (se) |
1 |
0.00 |
|
| 12 |
3TC-23118-00 |
SPACER, FROK SPRING (se) |
1 |
0.00 |
|
| 13 |
3TC-23111-00 |
BOLT, CAP (se) |
1 |
0.00 |
|
| 14 |
3LC-23357-00 |
NUT |
1 |
4.15 |
|
| 15 |
3LC-23149-00 |
WASHER, FORK SPRING UPPER |
1 |
5.30 |
|
| 16 |
2K8-23158-L0 |
GASKET |
1 |
10.90 |
|
| 17 |
3LC-23181-00 |
BOLT, HEXAGON SOCKET HEAD |
1 |
10.40 |
|
| 18 |
36Y-23147-00 |
O-RING, FORK CAP (se) |
1 |
0.00 |
|
| 19 |
3TC-23103-00 |
FRONT FORK ASSY (RIGHT) (se) |
1 |
0.00 |
|
| 20 |
3TC-23136-00 |
TUBE COMP, FRONT FORK OUTTER 2 (se) |
1 |
0.00 |
|
| 21 |
3TC-23110-00 |
TUBE COMP, FRONT FORK INNER 1 (se) |
1 |
0.00 |
|
| 22 |
3TC-23170-00 |
CYLINDER COMP, FRONT FORK (se) |
1 |
0.00 |
|
| 23 |
3TC-23173-00 |
SPINDLE, TAPER (se) |
1 |
0.00 |
|
| 24 |
26H-23156-00 |
CLIP, OIL SEAL |
1 |
3.60 |
|
| 25 |
3SP-23145-L0 |
OIL SEAL, FRONT FORK (TZ250) |
1 |
27.15 |
|
| 26 |
36Y-23146-10 |
WASHER, OIL SEAL |
1 |
6.80 |
|
| 27 |
3JD-23125-L0 |
METAL, SLIDE 1 |
1 |
20.60 |
|
| 28 |
3TC-23141-00 |
SPRING, FRONT FORK (se) |
1 |
0.00 |
|
| 29 |
43F-23142-10 |
SEAT, FORK SPRING UPPER (se) |
1 |
0.00 |
|
| 30 |
3TC-23118-00 |
SPACER, FROK SPRING (se) |
1 |
0.00 |
|
| 31 |
3TC-23111-00 |
BOLT, CAP (se) |
1 |
0.00 |
|
| 32 |
3LC-23357-00 |
NUT |
1 |
4.15 |
|
| 33 |
3LC-23149-00 |
WASHER, FORK SPRING UPPER |
1 |
5.30 |
|
| 34 |
2K8-23158-L0 |
GASKET |
1 |
10.90 |
|
| 35 |
3LC-23181-00 |
BOLT, HEXAGON SOCKET HEAD |
1 |
10.40 |
|
| 36 |
36Y-23147-00 |
O-RING, FORK CAP (se) |
1 |
0.00 |
|
| 37 |
1WG-23128-00 |
BOLT, AXLE HOLDER |
1 |
3.00 |
|
| 38 |
90201-08085 |
WASHER, PLATE |
1 |
1.60 |
|
| 39 |
3TC-23340-00 |
UNDER BRACKET, FRONT FORK (se) |
1 |
0.00 |
|
| 40 |
3TC-23435-00 |
CROWN, FRONT FORK (se) |
1 |
0.00 |
|
| 41 |
98021-08045 |
BOLT (8x40) |
4 |
1.85 |
|
| 42 |
98021-08040 |
Bolt (3LC) |
2 |
1.85 |
|
| 43 |
92901-08600 |
WASHER, PLATE |
5 |
1.60 |
|
| 44 |
22N-23346-00 |
BOLT 1 |
1 |
1.45 |
|
| 45 |
3TC-23471-00 |
BOLT (se) |
1 |
0.00 |
|
