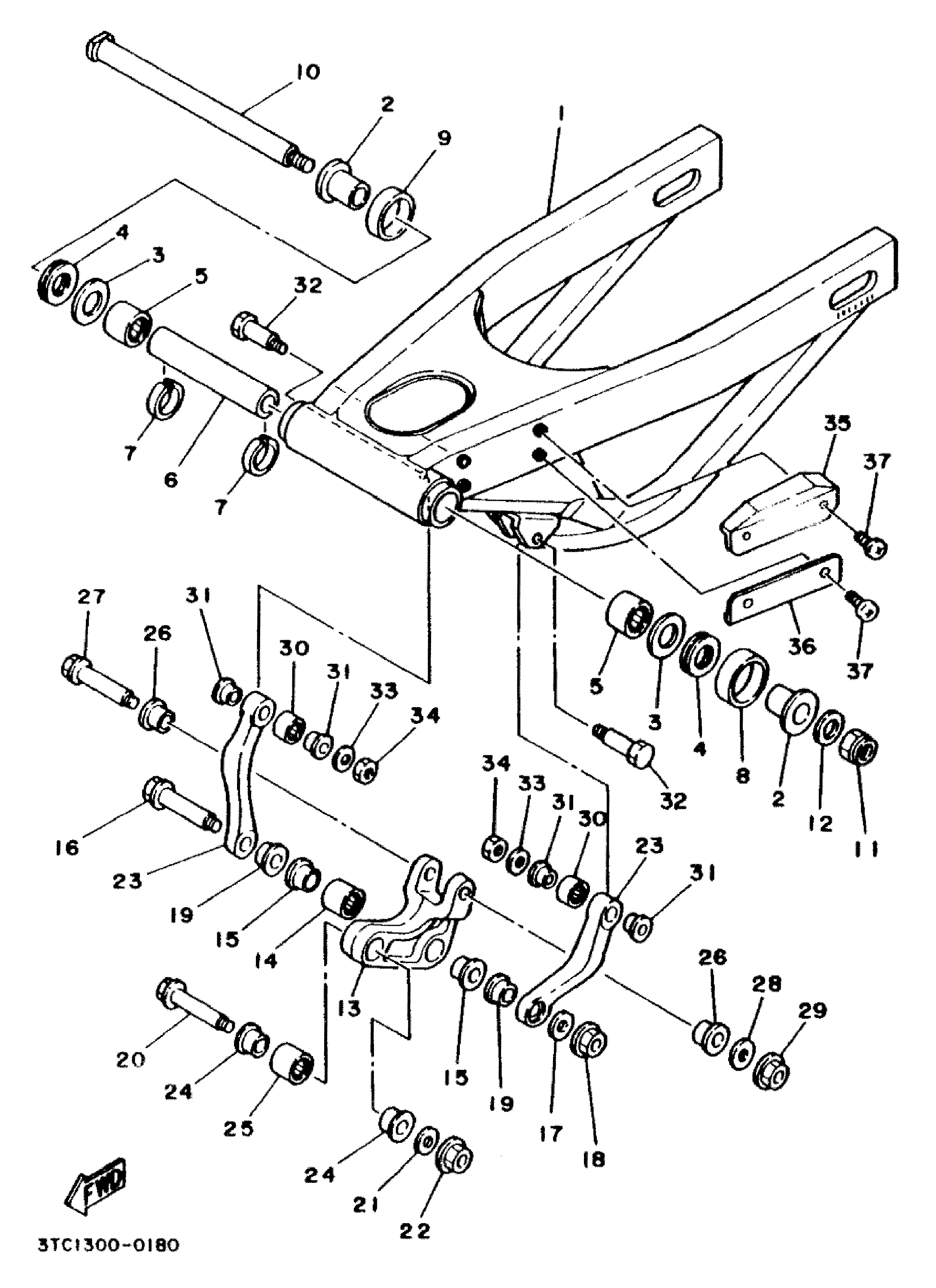

| 1 |
3TC-22110-00 |
REAR ARM COMP (se) |
1 |
0.00 |
|
| 2 |
1X2-22123-00 |
BUSHING 1 (se) |
2 |
0.00 |
|
| 3 |
1X2-22127-00-20 |
SHIM, SWING ARM (0.2T) |
2 |
20.80 |
|
| 4 |
93342-22518 |
BEARING |
2 |
23.40 |
|
| 5 |
93315-42523 |
BEARING |
2 |
22.10 |
|
| 6 |
3AK-22126-00 |
COLLAR, DISTANCE (se) |
1 |
0.00 |
|
| 7 |
1RK-22483-00 |
DAMPER 1 (se) |
2 |
0.00 |
|
| 8 |
1RK-22128-00 |
COVER, THRUST 1 (se) |
1 |
0.00 |
|
| 9 |
5Y9-22129-01 |
TRUST COVER 2 (se) |
1 |
0.00 |
|
| 10 |
1RK-22141-00 |
SHAFT, PIVOT (se) |
1 |
0.00 |
|
| 11 |
90185-18138 |
NUT, SELF LOCKING (se) |
1 |
0.00 |
|
| 12 |
90201-18262 |
WASHER, PLATE |
1 |
1.90 |
|
| 13 |
3AK-2217A-00 |
ARM, RELAY (se) |
1 |
0.00 |
|
| 14 |
93317-41655 |
BEARING, CYLINDRICAL (se) |
1 |
0.00 |
|
| 15 |
1RK-22123-00 |
BUSH 1 (se) |
2 |
0.00 |
|
| 16 |
1RK-22241-00 |
BOLT 1 (se) |
1 |
0.00 |
|
| 17 |
90201-081A6 |
WASHER, PLATE |
1 |
1.65 |
|
| 18 |
95780-08300 |
BOLT, FLANGE |
1 |
6.25 |
|
| 19 |
1RK-22124-00 |
BUSH 2 (se) |
2 |
0.00 |
|
| 20 |
1RK-22241-00 |
BOLT 1 (se) |
1 |
0.00 |
|
| 21 |
90201-081A6 |
WASHER, PLATE |
1 |
1.65 |
|
| 22 |
95780-08300 |
BOLT, FLANGE |
1 |
6.25 |
|
| 23 |
1RK-22179-00 |
ARM, TENSIONER (se) |
2 |
0.00 |
|
| 24 |
1RK-22123-00 |
BUSH 1 (se) |
2 |
0.00 |
|
| 25 |
93317-41655 |
BEARING, CYLINDRICAL (se) |
1 |
0.00 |
|
| 26 |
1RK-22124-00 |
BUSH 2 (se) |
2 |
0.00 |
|
| 27 |
1RK-22241-00 |
BOLT 1 (se) |
1 |
0.00 |
|
| 28 |
90201-081A6 |
WASHER, PLATE |
1 |
1.65 |
|
| 29 |
95780-08300 |
BOLT, FLANGE |
1 |
6.25 |
|
| 30 |
93317-21254 |
BEARING, CYLINDRICAL (se) |
2 |
0.00 |
|
| 31 |
90387-105N1 |
COLLAR (se) |
4 |
0.00 |
|
| 32 |
90109-081E2 |
BOLT (se) |
2 |
0.00 |
|
| 33 |
90201-081A6 |
WASHER, PLATE |
2 |
1.65 |
|
| 34 |
90185-08055 |
NUT, SELF LOCKING |
2 |
1.10 |
|
| 35 |
2KM-22147-00 |
PROTECTOR, CHAIN (se) |
1 |
0.00 |
|
| 36 |
3TC-22147-00 |
PROTECTOR, CHAIN (se) [USE 3TC-22147-00R] |
1 |
41.70 |
|
| 37 |
98901-06020 |
SCREW, BIND |
4 |
1.45 |
|
