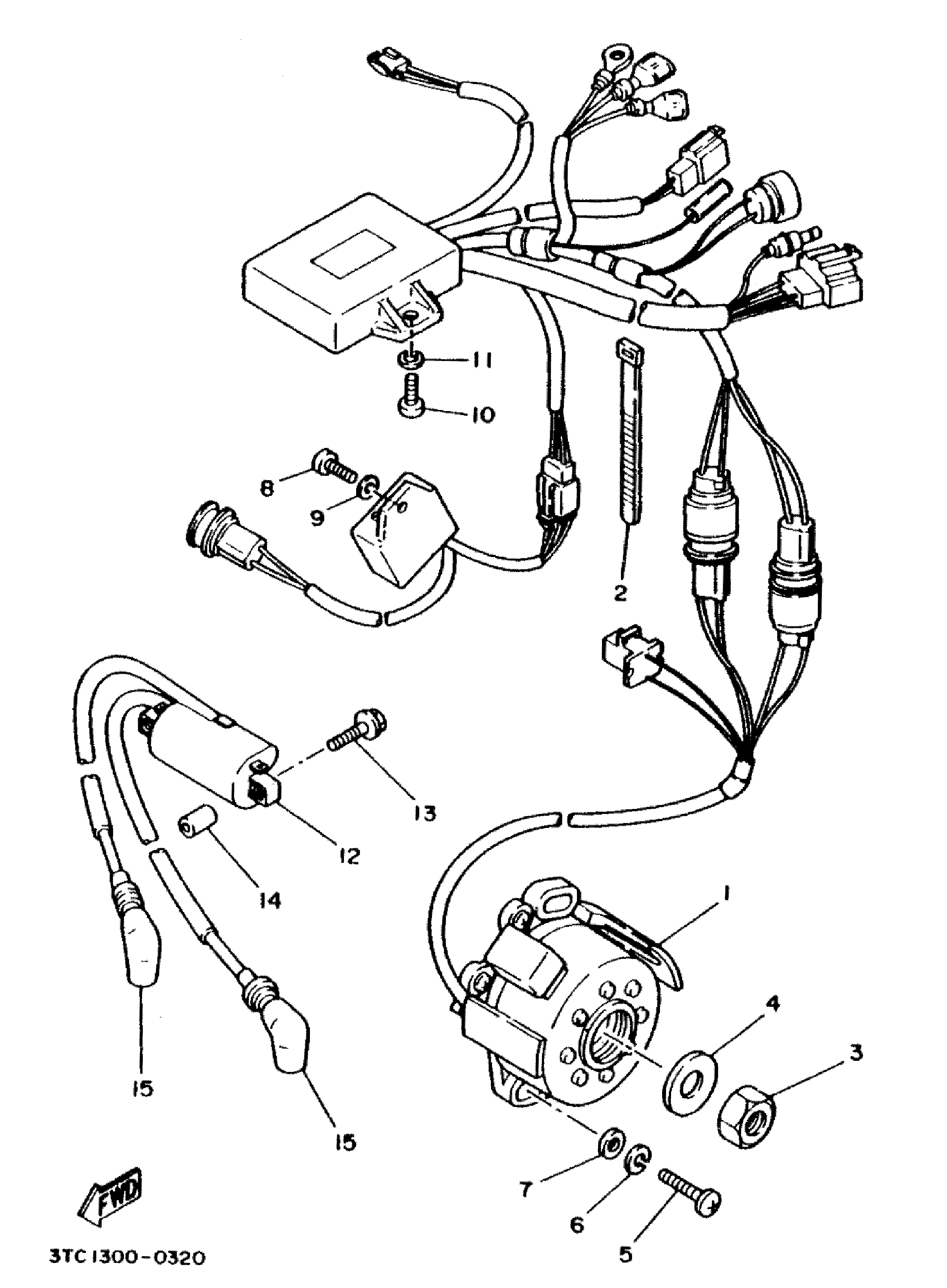

| 1 |
3TC-85501-00 |
C.D.I. MAGNETO SET (se) |
1 |
0.00 |
|
| 2 |
12R-82591-00 |
BAND |
2 |
1.00 |
|
| 3 |
90179-12335 |
NUT (4V2) |
1 |
10.10 |
|
| 4 |
90201-127E1 |
WASHER, PLATE (5N6) |
1 |
1.50 |
|
| 5 |
92501-06020 |
SCREW, PANHEAD |
2 |
0.95 |
|
| 6 |
92995-06100 |
WASHER, SPRING |
2 |
0.90 |
|
| 7 |
92901-06600 |
WASHER, PLATE (526) [USE 92990-06600] |
2 |
0.95 |
|
| 8 |
92501-06020 |
SCREW, PANHEAD |
1 |
0.95 |
|
| 9 |
92901-06600 |
WASHER, PLATE (526) [USE 92990-06600] |
1 |
0.95 |
|
| 10 |
92501-06020 |
SCREW, PANHEAD |
2 |
0.95 |
|
| 11 |
92901-06600 |
WASHER, PLATE (526) [USE 92990-06600] |
2 |
0.95 |
|
| 12 |
3LC-82310-00 |
IGNITION COIL ASSY |
1 |
174.30 |
|
| 13 |
95023-06020 |
BOLT, FLANGE (54V) |
2 |
1.50 |
|
| 14 |
90387-06553 |
COLLAR (1M1) |
2 |
2.00 |
|
| 15 |
2TV-82370-00 |
SPARK PLUG CAP ASSY (NOISE SUPPRESSING) |
2 |
33.05 |
|
