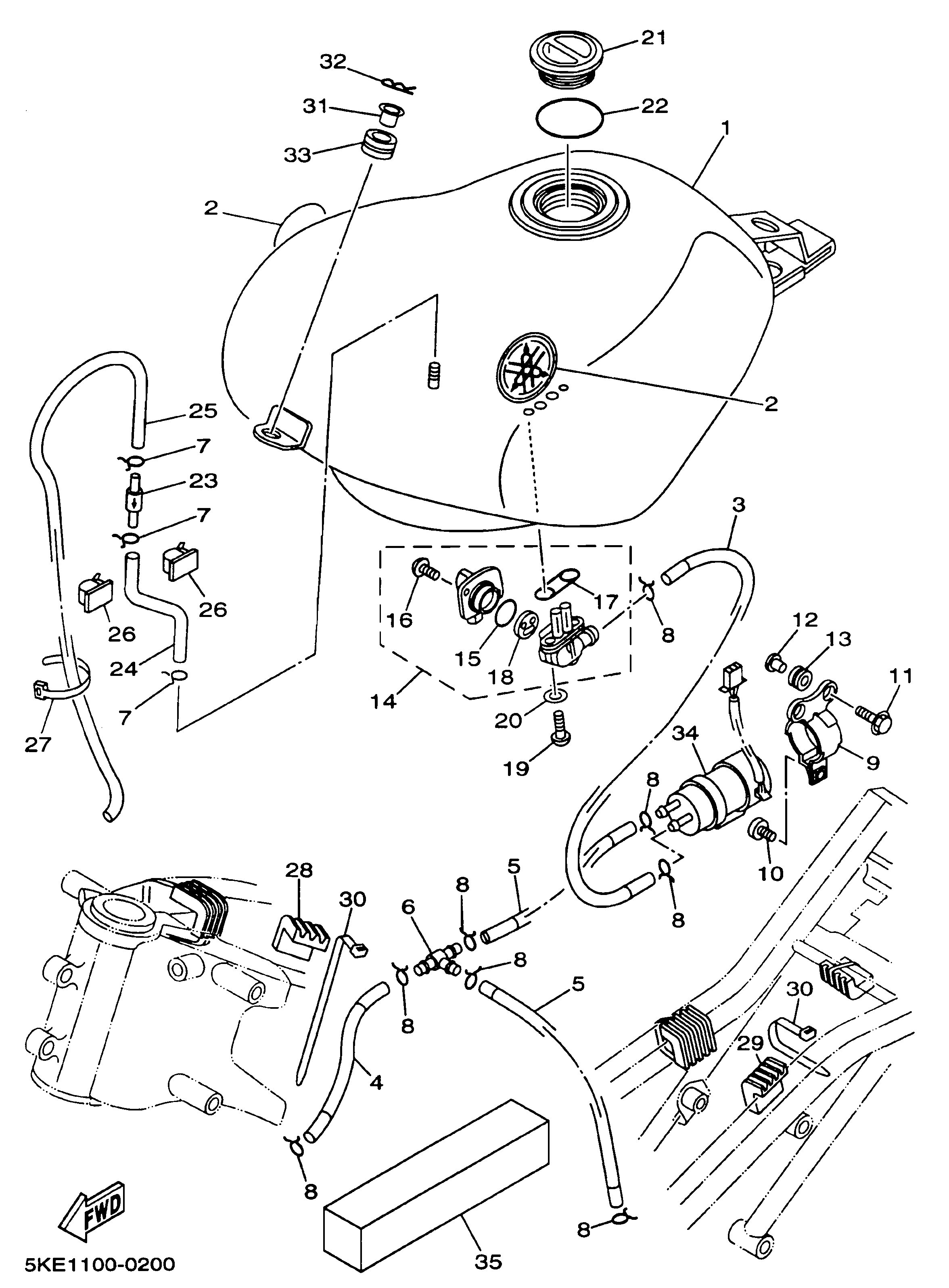

| 1 |
5KE-24110-00-36 |
FUEL TANK COMP (se) |
1 |
0.00 |
|
| 2 |
5KE-2411B-00 |
EMBLEM |
2 |
21.75 |
|
| 3 |
5KE-24311-00 |
PIPE, FUEL 1 (se) |
1 |
0.00 |
|
| 4 |
5KE-24312-00 |
PIPE 2 (se) |
1 |
0.00 |
|
| 5 |
5KE-24313-00 |
PIPE 3 |
2 |
8.75 |
|
| 6 |
1X2-24376-00 |
PIPE, JOINT 1 (se) |
1 |
0.00 |
|
| 7 |
90467-090A2 |
CLIP, FUEL HOSE |
3 |
1.50 |
|
| 8 |
90467-10008 |
CLIP, FUEL LINE [USE 90467-100A1] |
8 |
1.00 |
|
| 9 |
3CV-24491-10 |
BRACKET, FUEL PUMP |
1 |
21.90 |
|
| 10 |
98907-05008 |
SCREW, BIND |
1 |
1.05 |
|
| 11 |
90119-06096 |
BOLT, WITH WASHER (30X) [USE 90119-06063] |
2 |
1.65 |
|
| 12 |
90387-06737 |
COLLAR (3L6) |
2 |
1.65 |
|
| 13 |
90480-13163 |
GROMMET |
2 |
1.65 |
|
| 14 |
4JT-24500-00 |
FUEL COCK ASSY 1 [USE 4JT-24500-20] |
1 |
46.55 |
|
| 15 |
3AJ-24534-01 |
SEAL, PETCOCK |
1 |
3.15 |
|
| 16 |
97801-03008 |
SCREW, PAN HEAD (29U) |
2 |
1.00 |
|
| 17 |
4X8-24512-00 |
O-RING |
1 |
1.85 |
|
| 18 |
3AC-24523-00 |
SEAL, FUEL VALVE |
1 |
5.85 |
|
| 19 |
90149-06011 |
SCREW |
2 |
1.10 |
|
| 20 |
90202-05193 |
WASHER, PLATE |
2 |
1.00 |
|
| 21 |
4JT-24611-00 |
BODY, CAP |
1 |
37.00 |
|
| 22 |
4JT-24612-00 |
GASKET, CAP |
1 |
9.55 |
|
| 23 |
3XJ-24380-00 |
PIPE JOINT ASSY |
1 |
20.70 |
|
| 24 |
91A20-05020 |
TUBE, FLEXIBLE VINYL [USE 91A20-05039] |
1 |
5.10 |
|
| 25 |
91A20-05080 |
HOSE, FLEXIBLE VINYL |
1 |
7.40 |
|
| 26 |
90464-25160 |
CLAMP |
2 |
5.10 |
|
| 27 |
90465-13152 |
CLAMP (4A0) |
1 |
1.00 |
|
| 28 |
4DP-24181-00 |
TANK MOUNT 1 |
2 |
41.80 |
|
| 29 |
3LC-24182-00 |
DAMPER, LOCATING 2 [USE 1RK-24182-00] |
3 |
28.70 |
|
| 30 |
90465-13275 |
CLAMP (51X) |
5 |
2.65 |
|
| 31 |
90387-081F5 |
COLLAR |
1 |
8.90 |
|
| 32 |
4JT-2411M-00 |
CLIP, FUEL TANK |
1 |
11.35 |
|
| 33 |
90480-18525 |
GROMMET |
1 |
6.45 |
|
| 34 |
4NK-13907-00 |
FUEL PUMP COMP [USE 4NK-13907-01] |
1 |
172.60 |
|
| 35 |
4JT-2411R-00 |
SPONGE, FUEL TANK BAFFLE |
10 |
16.80 |
|
