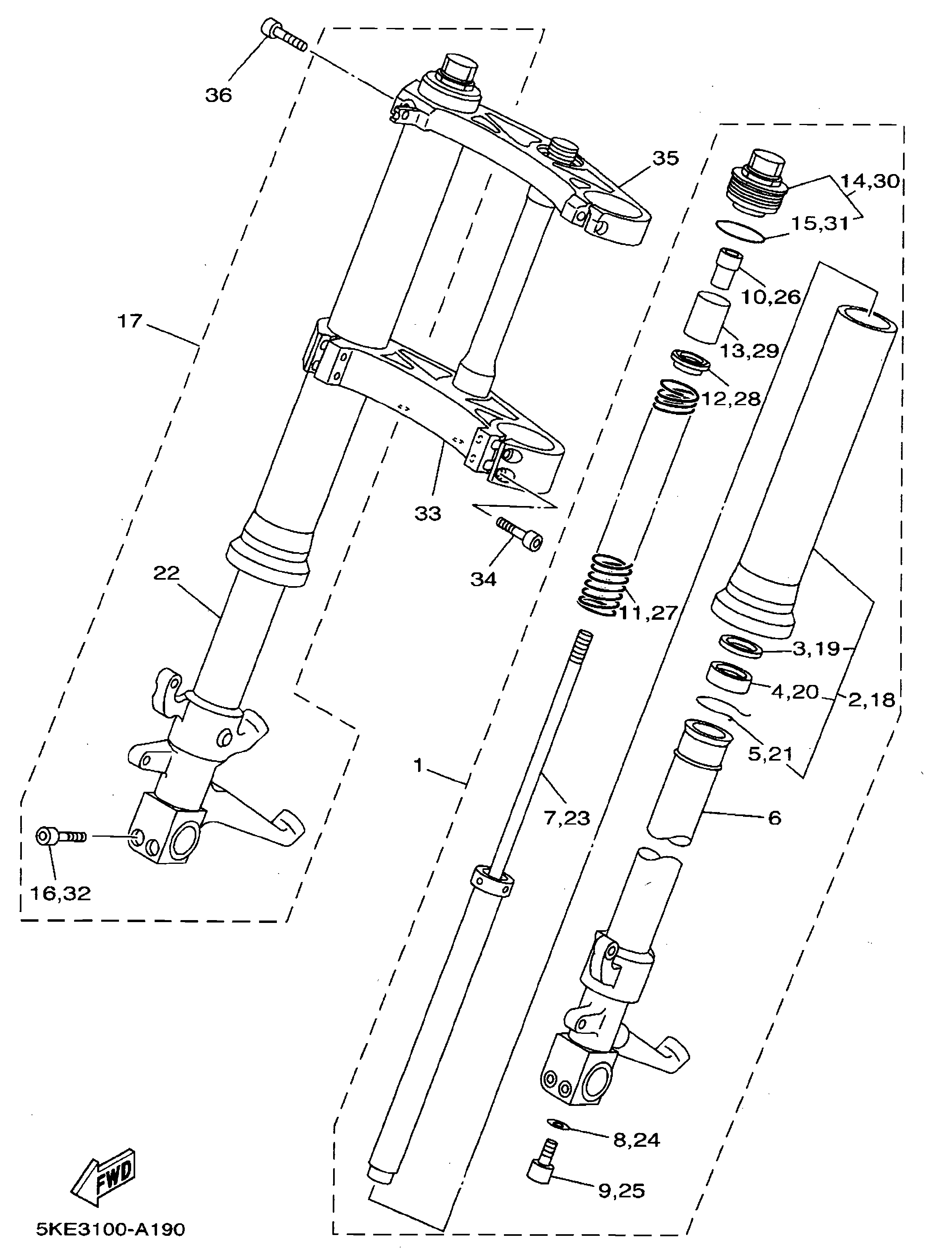

| 1 |
5KE-23102-20 |
FRONT FORK ASSY (LEFT) (se) |
1 |
0.00 |
|
| 2 |
5KE-23136-00 |
TUBE, OUTER (RIGHT) |
1 |
608.35 |
|
| 3 |
36Y-23146-10 |
WASHER, OIL SEAL |
1 |
6.80 |
|
| 4 |
3SP-23145-L0 |
OIL SEAL, FRONT FORK (TZ250) |
1 |
27.15 |
|
| 5 |
26H-23156-00 |
CLIP, OIL SEAL |
1 |
3.60 |
|
| 6 |
5KE-23110-20 |
INNER TUBE COMP 1 (se) |
1 |
0.00 |
|
| 7 |
5KE-23170-10 |
CYLINDER COMP, FRONT FORK |
1 |
526.15 |
|
| 8 |
2K8-23158-L0 |
GASKET |
1 |
10.90 |
|
| 9 |
3LC-23181-00 |
BOLT, HEXAGON SOCKET HEAD |
1 |
10.40 |
|
| 10 |
4TW-23357-10 |
NUT (se) |
1 |
0.00 |
|
| 11 |
3YL-23141-00 |
SPRING, FRONT FORK |
1 |
43.60 |
|
| 12 |
4TW-23142-10 |
SEAT, SPRING UPPER |
1 |
37.00 |
|
| 13 |
4TW-23118-10 |
SPACER |
1 |
19.90 |
|
| 14 |
4TW-23111-10 |
BOLT, CAP (se) |
1 |
0.00 |
|
| 15 |
3SP-23147-M0 |
O-RING, FORK TOP |
1 |
3.35 |
|
| 16 |
91312-06040 |
BOLT, AXLE HOLDER (6x40) |
2 |
1.60 |
|
| 17 |
5KE-23103-20 |
FRONT FORK ASSY (RIGHT) (se) |
1 |
0.00 |
|
| 18 |
5KE-23136-00 |
TUBE, OUTER (RIGHT) |
1 |
608.35 |
|
| 19 |
36Y-23146-10 |
WASHER, OIL SEAL |
1 |
6.80 |
|
| 20 |
3SP-23145-L0 |
OIL SEAL, FRONT FORK (TZ250) |
1 |
27.15 |
|
| 21 |
26H-23156-00 |
CLIP, OIL SEAL |
1 |
3.60 |
|
| 22 |
5KE-23120-20 |
INNER TUBE COMP 2 (se) |
1 |
0.00 |
|
| 23 |
5KE-23170-10 |
CYLINDER COMP, FRONT FORK |
1 |
526.15 |
|
| 24 |
2K8-23158-L0 |
GASKET |
1 |
10.90 |
|
| 25 |
3LC-23181-00 |
BOLT, HEXAGON SOCKET HEAD |
1 |
10.40 |
|
| 26 |
4TW-23357-10 |
NUT (se) |
1 |
0.00 |
|
| 27 |
3YL-23141-00 |
SPRING, FRONT FORK |
1 |
43.60 |
|
| 28 |
4TW-23142-10 |
SEAT, SPRING UPPER |
1 |
37.00 |
|
| 29 |
4TW-23118-10 |
SPACER |
1 |
19.90 |
|
| 30 |
4TW-23111-10 |
BOLT, CAP (se) |
1 |
0.00 |
|
| 31 |
3SP-23147-M0 |
O-RING, FORK TOP |
1 |
3.35 |
|
| 32 |
91312-06040 |
BOLT, AXLE HOLDER (6x40) |
2 |
1.60 |
|
| 33 |
4TW-23340-21 |
UNDER BRACKET COMP (se) |
1 |
0.00 |
|
| 34 |
91314-08035 |
BOLT, SOCKET HEAD |
4 |
3.00 |
|
| 35 |
4TW-23435-01 |
CROWN,HANDLE (se) |
1 |
0.00 |
|
| 36 |
91317-08035 |
BOLT, SOCKET (8x35) |
2 |
1.85 |
|
