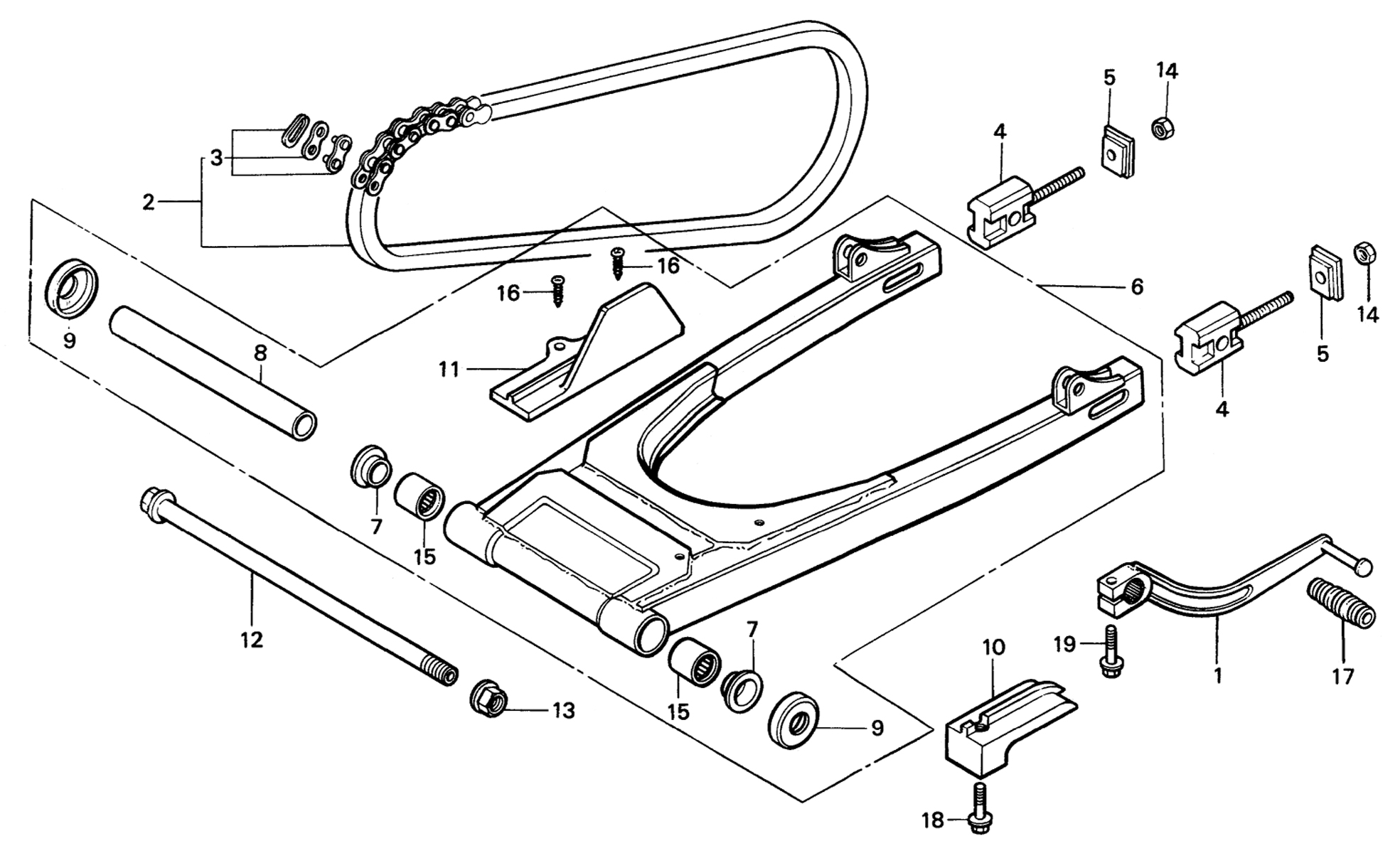

| 1 |
24701-ND4-000 |
PEDAL, GEAR CHANGE (se) |
1 |
0.00 |
|
| 2 |
40530-NA4-000 |
CHAIN, DRIVE (415T-116LE) [USE GB415HRU-120] (se) |
(1) |
92.00 |
|
|
40530-NC2-000 |
CHAIN, DRIVE (415T-112LE) [USE GB415HRU-120] (se) |
1 |
92.00 |
|
|
40530-ND4-000 |
CHAIN, DRIVE (415T-114LE) [USE GB415HRU-120] (se) |
(1) |
92.00 |
|
|
40530-107-000 |
CHAIN, DRIVE (415T-110LE) [USE GB415HRU-120] (se) |
(1) |
92.00 |
|
| 3 |
40531-NA4-000 |
JOINT, DRIVE CHAIN (se) |
1 |
0.00 |
|
|
40531-122-003 |
JOINT, DRIVE CHAIN (RIVET TYPE) (se) |
(1) |
0.00 |
|
| 4 |
40542-NC2-000 |
ADJUSTER COMP, CHAIN (se) |
2 |
0.00 |
|
| 5 |
40544-NC2-000 |
RETAINER, CHAIN ADJUSTER (se) |
2 |
0.00 |
|
| 6 |
52000-ND4-000 |
FORK ASSY, REAR (se) |
1 |
0.00 |
|
| 7 |
52109-NC2-300 |
BUSH, PIVOT THRUST (se) |
2 |
0.00 |
|
| 8 |
52141-NC2-000 |
COLLAR, REAR FORK (se) |
1 |
0.00 |
|
| 9 |
52144-430-005 |
CAP, DUST SEAL (NIPPON) |
2 |
8.10 |
|
| 10 |
52158-ND4-000 |
SLIDER, LOWER CHAIN (se) |
1 |
0.00 |
|
| 11 |
52170-ND4-000 |
SLIDER, CHAIN (se) |
1 |
0.00 |
|
| 12 |
90117-NC2-000 |
BOLT, REAR FORK (se) |
1 |
0.00 |
|
| 13 |
90301-430-000 |
NUT, SWINGARM PIVOT (se) |
1 |
0.00 |
|
| 14 |
90301-473-003 |
U-NUT (6mm) |
2 |
4.15 |
|
| 15 |
91071-MA0-003 |
BEARING, SWINGARM PIVOT (NTN) |
2 |
14.05 |
|
| 16 |
93903-34120 |
SCREW, TAPPING (4x8) |
2 |
0.40 |
|
| 17 |
95011-40000 |
RUBBER, SHIFT PEDAL |
1 |
0.80 |
|
| 18 |
95700-06012-08 |
BOLT, FLANGE (6x12) [USE 95701-06012-08] |
1 |
0.55 |
|
| 19 |
95700-06020-00 |
BOLT, FLANGE (6x20) [USE 95701-06020-00] |
1 |
0.55 |
|
