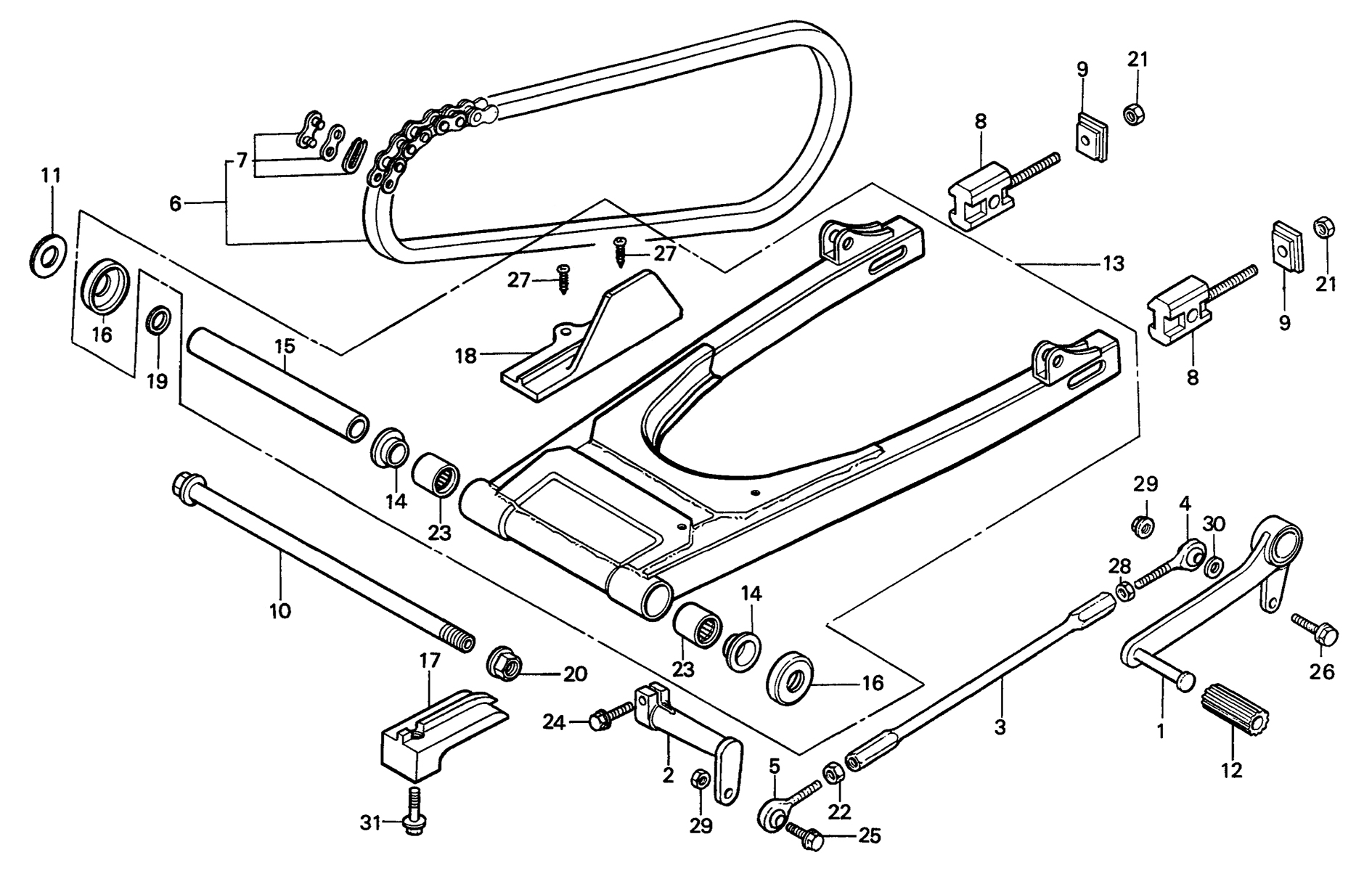

| 1 |
24700-ND4-750 |
PEDAL COMP, GEAR CHANGE (se) |
1 |
0.00 |
|
| 2 |
24702-ND4-750 |
ARM, GEAR CHANGE (se) |
1 |
0.00 |
|
| 3 |
24706-ND4-750 |
BAR, CHANGE (215mm) (se) |
1 |
0.00 |
|
|
24706-ND4-850 |
BAR, CHANGE (205mm) (se) |
(1) |
0.00 |
|
| 4 |
24711-NC8-000 |
ROD END, A (6mm RIGHT THREAD) [USE 24711-NX4-710] |
1 |
17.40 |
|
| 5 |
24712-NC8-000 |
ROD END, B (6mm LEFT THREAD) [USE 24712-NX4-710] |
1 |
16.90 |
|
| 6 |
40530-NA4-000 |
CHAIN, DRIVE (415T-116LE) [USE GB415HRU-120] (se) |
(1) |
92.00 |
|
|
40530-NC2-000 |
CHAIN, DRIVE (415T-112LE) [USE GB415HRU-120] (se) |
1 |
92.00 |
|
|
40530-ND4-000 |
CHAIN, DRIVE (415T-114LE) [USE GB415HRU-120] (se) |
(1) |
92.00 |
|
|
40530-107-000 |
CHAIN, DRIVE (415T-110LE) [USE GB415HRU-120] (se) |
(1) |
92.00 |
|
| 7 |
40531-NA4-000 |
JOINT, DRIVE CHAIN (se) |
1 |
0.00 |
|
|
40531-122-003 |
JOINT, DRIVE CHAIN (RIVET TYPE) (se) |
(1) |
0.00 |
|
| 8 |
40542-NC2-000 |
ADJUSTER COMP, CHAIN (se) |
2 |
0.00 |
|
| 9 |
40544-NC2-000 |
RETAINER, CHAIN ADJUSTER (se) |
2 |
0.00 |
|
| 10 |
42301-NC2-000 |
AXLE, REAR WHEEL (se) |
1 |
0.00 |
|
| 11 |
44808-107-720 |
WASHER, SPEEDOMETER GEAR (se) |
N |
0.00 |
|
| 12 |
46501-ND4-750 |
RUBBER, PEDAL |
1 |
4.90 |
|
| 13 |
52000-ND4-750 |
FORK ASSY, REAR (se) |
1 |
0.00 |
|
| 14 |
52109-NC2-300 |
BUSH, PIVOT THRUST (se) |
2 |
0.00 |
|
| 15 |
52141-NC2-000 |
COLLAR, REAR FORK (se) |
1 |
0.00 |
|
| 16 |
52144-430-005 |
CAP, DUST SEAL (NIPPON) |
2 |
8.10 |
|
| 17 |
52158-ND4-000 |
SLIDER, LOWER CHAIN (se) |
1 |
0.00 |
|
| 18 |
52170-ND4-000 |
SLIDER, CHAIN (se) |
1 |
0.00 |
|
| 19 |
52466-MB2-000 |
WASHER, THRUST (se) |
N |
0.00 |
|
| 20 |
90201-GC4-000 |
NUT, FLANGE (14mm) (se) |
1 |
0.00 |
|
| 21 |
90301-473-000 |
NUT, U (6mm) (se) |
2 |
0.00 |
|
| 22 |
90301-NC8-000 |
U-NUT (6 mm) (se) |
1 |
0.00 |
|
| 23 |
91071-MA0-003 |
BEARING, SWINGARM PIVOT (NTN) |
2 |
14.05 |
|
| 24 |
92200-06020-0A |
BOLT, HEX (6x20) [USE 92101-06020-0A] |
2 |
0.65 |
|
| 25 |
92200-06022-0A |
BOLT, HEX (6x22) [USE 92101-06022-0A] |
1 |
0.65 |
|
| 26 |
92200-06025-0A |
BOLT, HEX (6x25) [USE 92101-06025-0A] |
1 |
0.65 |
|
| 27 |
93903-34120 |
SCREW, TAPPING (4x8) |
2 |
0.40 |
|
| 28 |
94002-06000-0S |
NUT, HEX (6mm) (se) |
1 |
0.00 |
|
| 29 |
94050-06000 |
NUT, FLANGE (6mm) |
3 |
0.55 |
|
| 30 |
94101-06000 |
WASHER, PLAIN (6mm) |
1 |
0.40 |
|
| 31 |
95700-06012-08 |
BOLT, FLANGE (6x12) [USE 95701-06012-08] |
1 |
0.55 |
|
