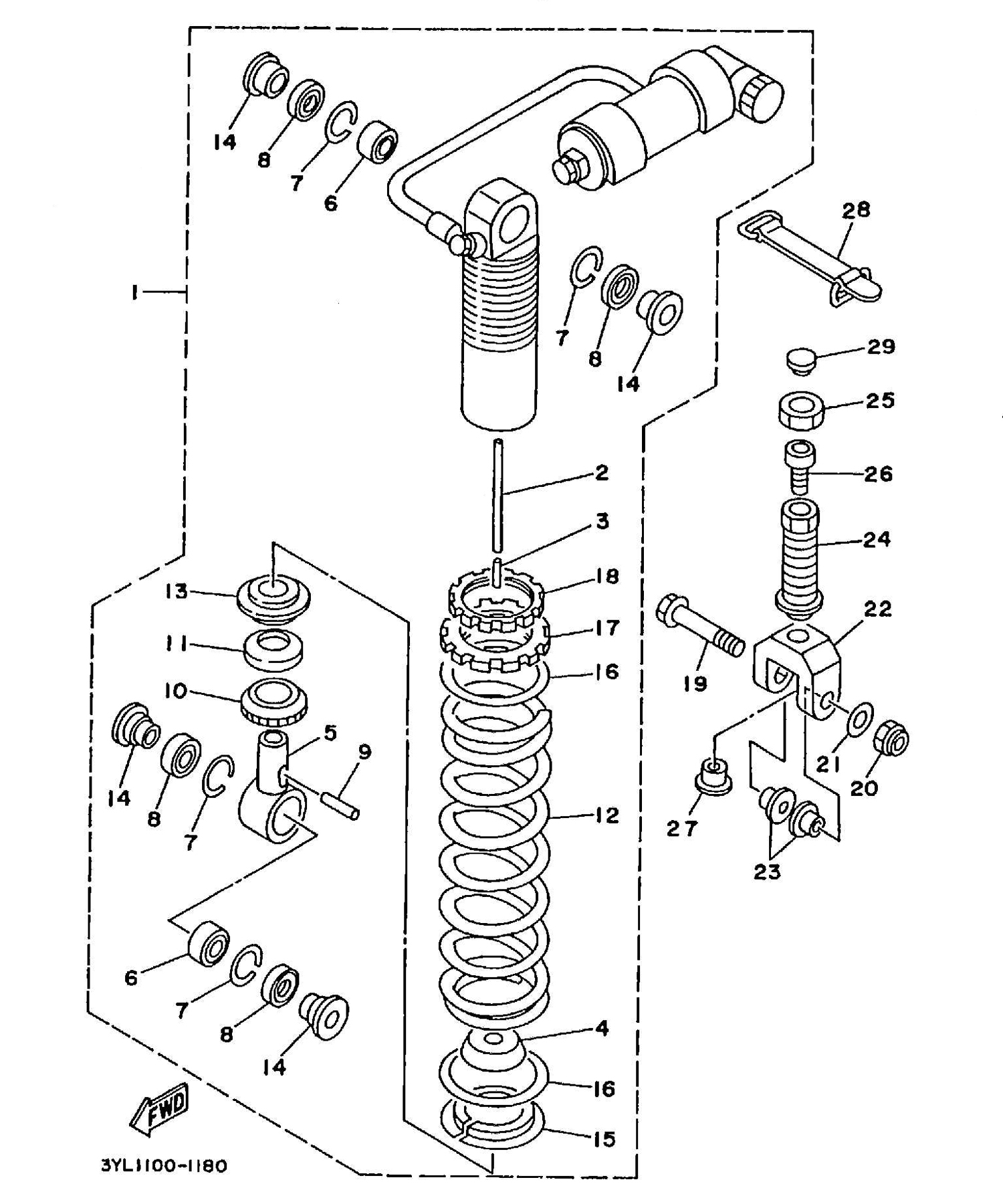

| 1 |
3YL-22210-00 |
SHOCK ABSORBER ASSY., REAR (se) |
1 |
0.00 |
|
| 2 |
3TC-22489-00 |
ROD, PUSH (se) |
1 |
0.00 |
|
| 3 |
93604-21193 |
PIN, DOWL (23X) (se) |
1 |
0.00 |
|
| 4 |
3AK-22493-00 |
BUMP, STOP |
1 |
22.90 |
|
| 5 |
3AK-22409-00 |
UPPER BRACKET SUB ASSY (se) |
1 |
0.00 |
|
| 6 |
93399-99921 |
BEARING (1RK) |
2 |
56.10 |
|
| 7 |
93440-30113 |
CIRCLIP (23X) |
4 |
2.00 |
|
| 8 |
23X-22211-00 |
COVER |
4 |
8.10 |
|
| 9 |
93604-26132 |
PIN, DOWL (1W1) (se) |
1 |
0.00 |
|
| 10 |
3AK-22497-00 |
NUT, ADJUSTING (se) |
1 |
0.00 |
|
| 11 |
3R4-22221-01 |
COVER (se) |
1 |
0.00 |
|
| 12 |
3TC-22212-00 |
SPRING, REAR SHOCK ABSORBER (se) |
1 |
0.00 |
|
| 13 |
1RK-22213-00 |
SEAT, SPRING UPPER (se) |
1 |
0.00 |
|
| 14 |
3YL-22253-00 |
COLLAR ,DISTANCE |
4 |
37.00 |
|
| 15 |
22W-22214-01 |
GUIDE, SPRING 1 |
2 |
13.20 |
|
| 16 |
2KM-22224-00 |
GUIDE, SPRING 2 (se) |
2 |
0.00 |
|
| 17 |
3YL-22223-00 |
SEAT, SPRING LOWER (se) |
1 |
0.00 |
|
| 18 |
3YL-22215-00 |
RING, LOCKING |
1 |
19.90 |
|
| 19 |
1RK-22241-00 |
BOLT 1 (se) |
1 |
0.00 |
|
| 20 |
95780-08300 |
BOLT, FLANGE |
1 |
6.25 |
|
| 21 |
90201-081A6 |
WASHER, PLATE |
1 |
1.65 |
|
| 22 |
3AK-22219-00 |
BRACKET, UPPER (se) |
1 |
0.00 |
|
| 23 |
1RK-22124-00 |
BUSH 2 (se) |
2 |
0.00 |
|
| 24 |
3YL-22239-00 |
ADJUSTER, RIDE HEIGHT (se) |
1 |
0.00 |
|
| 25 |
1RK-22251-00 |
NUT 1 |
1 |
26.85 |
|
| 26 |
91311-10020 |
BOLT (15R) |
1 |
3.50 |
|
| 27 |
3AK-22252-00 |
NUT |
1 |
66.45 |
|
| 28 |
24X-22262-00 |
HOLDER, SUB TANK (se) |
2 |
0.00 |
|
| 29 |
90480-14153 |
GROMMET (420) |
1 |
2.75 |
|
